3333-T102: DescriptionDC COMMON MODE CHOKES; File Size151KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet View All

3333-T102 Overview

DC COMMON MODE CHOKES

Preview

Download Datasheet

View All

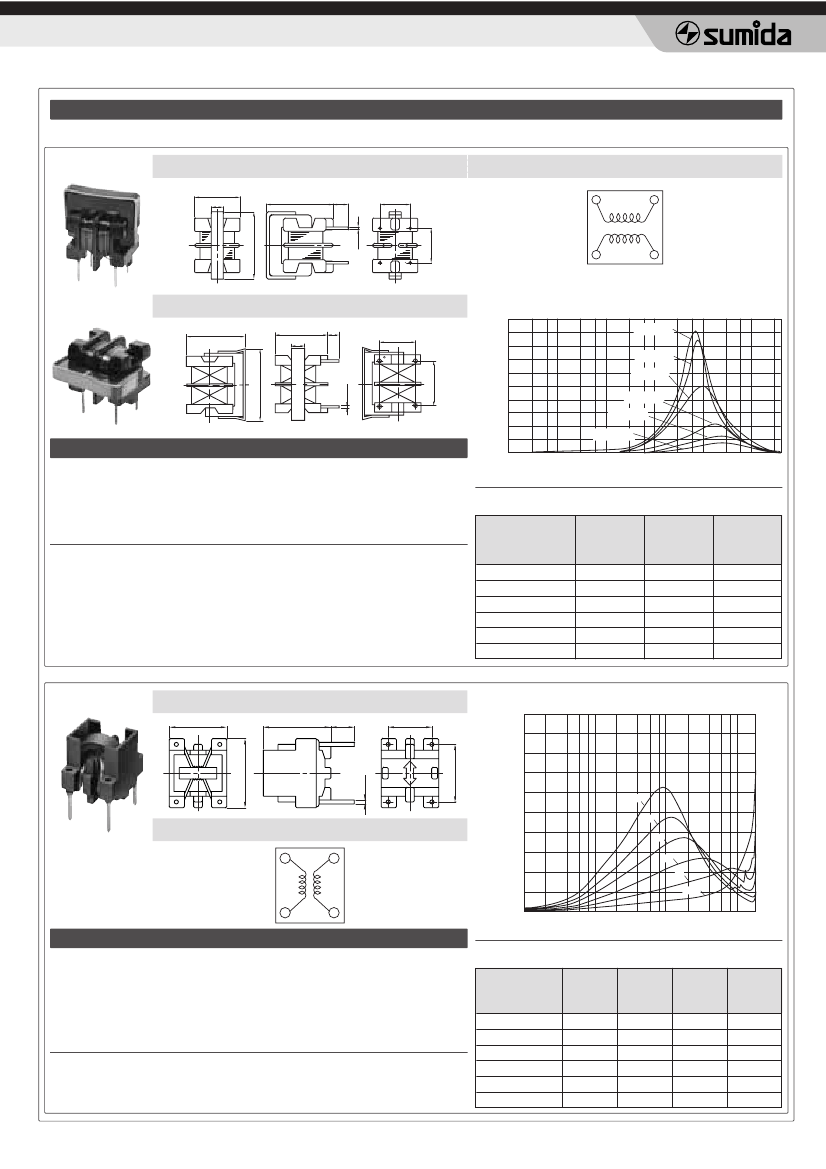

DC COMMON MODE CHOKES

OUTLINE

／概要

1. DC common mode chokes

1 DCコモンモードチョーク

UU9TF

11.0MAX.

3.5MAX.

16.5MAX.

DIMENSIONS (mm)

外½寸法図

Schematics

結線図

16.5MAX.

3.5

7.0

ø0.6

8.0

UU9TFH

15.5MAX.

16.5MAX.

DIMENSIONS (mm)

外½寸法図

Impedance Characteristics

／インピーダンス特性

83.2

12.5MAX. 3.5

3.5MAX.

7.0

IMPEDANCE (kΩ)

75.0

66.5

58.2

49.9

41.6

33.3

25.0

16.6

8.3

10K

1325-T006

1325-T105

1325-T104

1325-T103

1325-T102

1325-T101

ø0.6

FEATURES

／特徴

1. Small size, inexpensive type

2. It is effective to the noise countermeasure for DC line noise and immunity for

multi-function telephone, PBX and FAX.

1. 小型、廉価タイプ

2. 多機½電話、PBX、FAXなどの不要電界に対するイミュニティ、各種電子機器のDCラインのノイズ対策に有効。

8.0

100K

10M

FREQUENCY (Hz)

Specifications

／仕様

Type

品名

Inductance

インダクタンス

（1-4)or(2-3)

@1kHz

Min.0.5mH

Min.1.0mH

Min.2.0mH

Min.5.0mH

Min.8.0mH

Min.10.0mH

D.C.R.

直流抵抗

（1-4)

(2-3)

Rated current

定格電流

◆

APPLICATION

／用途

1. Multi function telephone

2. PBX

3. FAX

1. 多機½電話

2. PBX

3. FAX

3333-T101

3333-T102

3333-T103

3333-T104

3333-T105

3333-T106

Max.129mΩ

Max.244mΩ

Max.441mΩ

Max.958mΩ

Max.1.52Ω

Max.2.04Ω

1.15A

780mA

720mA

420mA

330mA

240mA

BM1012LF

10.3MAX.

12.5MAX.

DIMENSIONS (mm)

外½寸法図

Impedance Characteristics

／インピーダンス特性

7.5

2000

1800

1600

12.0MAX.

4.0

10.0

1400

ø0.7

IMPEDANCE (Ω)

1200

1000

800

600

400

200

3200-011

010

009

008

007

006

Schematics

結線図

10M

100M

1G 1.8G

FEATURES

／特徴

1. Effective in wide frequency band (Several MHz to several 100MHz)

2. Even if complete safty ground is impossible in circuit design, effect is expected.

3. Less influence when installing on high frequency signal line at Max. 10MHz

1. 広い周波数帯域に効果あり。

（数MHz∼数100MHz）

2. 回路設計上完全な接地が取れなくても効果を発揮。

3. 10MHz以下の高周波信号ラインに付加しても½響小

FREQUENCY (Hz)

Specifications

／仕様

Type

品名

Inductance Inductance

インダクタンス

Balance

(1-2) (4-3)

@1kHz

インダクタンス

平衡度

Max.150nH

Max.180nH

Max.200nH

Max.230nH

Max.250nH

Max.280nH

D.C.R.

直流抵抗

(1-2) (4-3)

@ 20°C

Max.14.3mΩ

Max.16.3mΩ

Max.18.0mΩ

Max.20.0mΩ

Max.23.8mΩ

Max.27.0mΩ

Rated current

定格電流

（50/60Hz）

3.9A

3.25A

3.2A

3.0A

2.75A

2.5A

BM1012LF-B0R2

BM1012LF-B0R4

BM1012LF-B0R8

Min.0.2µH

Min.0.48µH

Min.0.88µH

Min.1.57µH

Min.1.90µH

Min.2.69µH

◆

APPLICATION

／用途

1. PC

1. パ½コン

BM1012LF-B1R5

BM1012LF-B1R9

BM1012LF-B2R7
