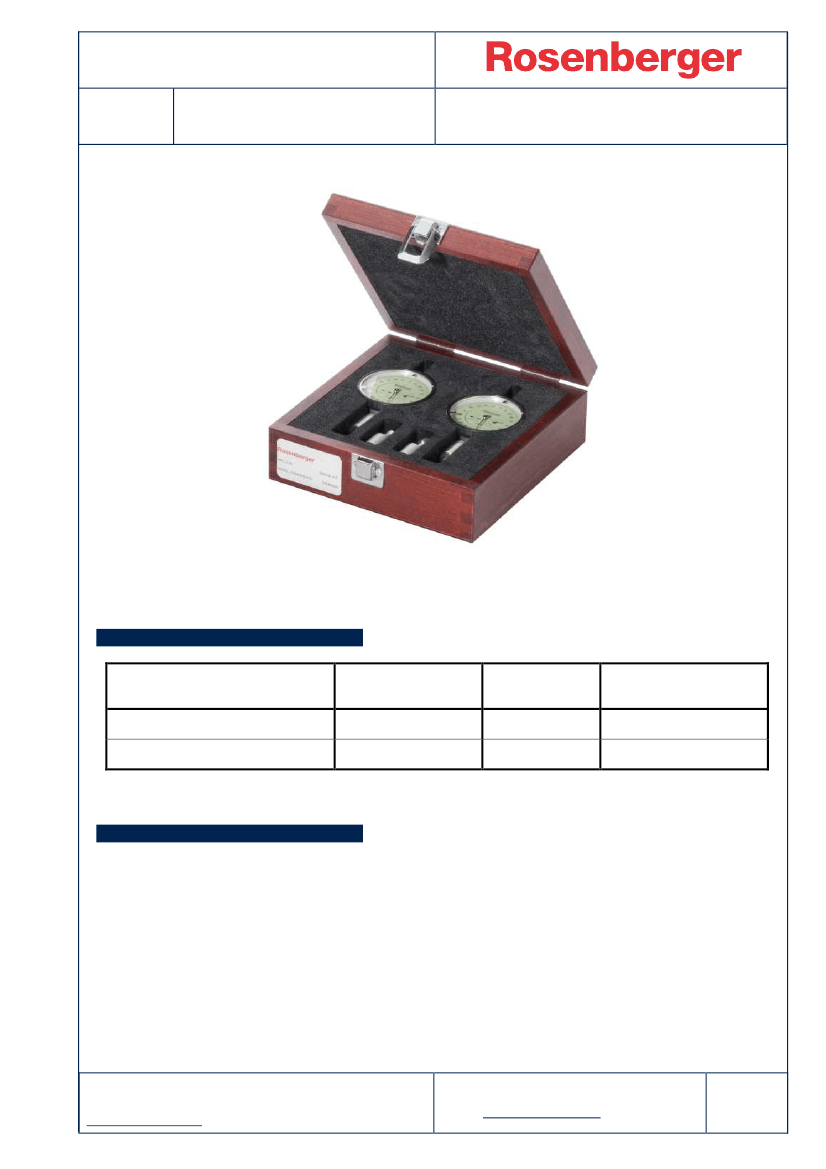

Technical Data Sheet
RPC-N
75
Ω
GAUGE KIT
P5GK0KS-010
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Picture may differ from original product.
Contents
Device
Gauge plug
(including gauge block)
Part number
P5W00S-000
05W00K-000
Quantity
1
1
Calibration Option
a
FC
FC
Gauge jack
a.
(including gauge block)
See “Declaration of calibration options” for explanation.
Mechanical specifications
Gauge block
Gauge range
Scale gradation
Limit of measurement error
1
Typical measurement error
1
Measuring force
1
2
P5W00S-000
5.28 mm
5.28 mm ± 0.5 mm
1 µm
≤
10 µm
2
≤
6 µm
2
1.5 N
05W00K-000
5.26 mm
5.26 mm ± 0.5 mm
1 µm
≤
10 µm
3
≤
6 µm
3
1.5 N
When zeroed with gauge block
5.24 mm to 5.40 mm
3
5.14 mm to 5.30 mm
RF_35/05.10/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
RPC-N
75
Ω
GAUGE KIT
P5GK0KS-010
Documentation
This
kit is delivered with
•
Calibration Certificate
Details see “Declaration of calibration options”
•
Kit Info Card
Handling precautions and mechanical information.
•
Operating Manual
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Declaration of calibration options
Factory Calibration
Standard delivery for this gauge includes a Factory Calibration. The Calibration Certificate issued reports
individual mechanical calibration results, traceable to national / international standards.
Accredited Calibration
Not available.
For further, more detailed information see application note AN001 on the Rosenberger homepage.
Calibration interval
Recommendation
12 months
For further, more detailed information please visit our homepage
www.rosenberger.com.
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Martin Moder
Date
16.02.15
Approved
Herbert Babinger
Date
24.05.18
Rev.
c00
Engineering change number
18-0859
Name
A. Youmsi
Date
24.05.18
RF_35/05.10/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
