1274.1036 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 1274.1036

Preview

1274.1036: DescriptionLED Mounting Hardware,; CategoryLED optoelectronic/LED photoelectric; File Size67KB，1 Pages; ManufacturerMentor( a Siemens Business); Websitehttps://www.mentor.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1274.1036 Overview

LED Mounting Hardware,

1274.1036 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Optoelectronic device types	LED MOUNTING HARDWARE
Base Number Matches	1

Preview

Download Datasheet

View All

Mehrfach-Anzeigen, stehend

2x5mm

2 x 5mm

Allgemeine Hinweise und Technische Daten

Allgemeine Hinweise: siehe Seite 3

Technische Daten LED’s: siehe Seite 39

LL-Werkstoff: PC glasklar UL94

Umgebungstemperatur: -40°C ... +85°C

ESD-Schutz: <12kV

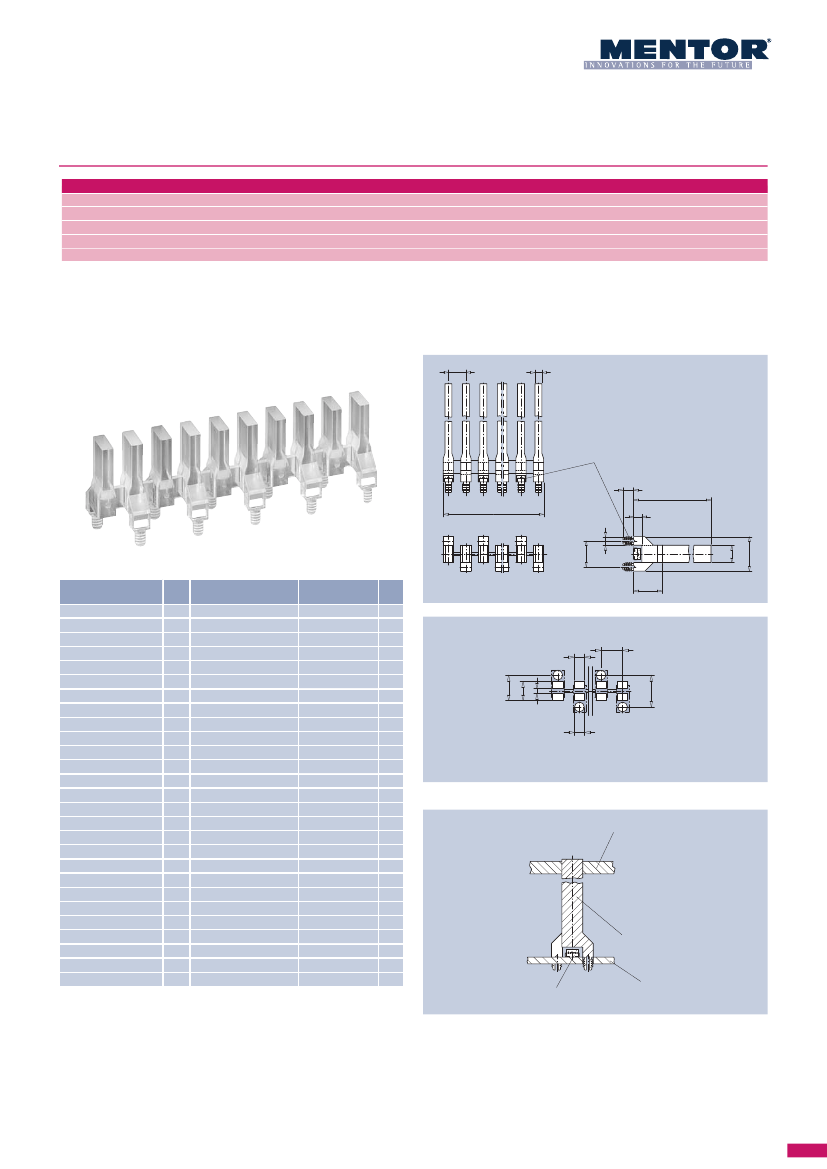

Dieses Lichtleiter-System in stehender Ausführung bringt Licht in Form einer

2x5mm LED an die Frontplatte. Über Einpresszapfen wird der Lichtleiter in der

Leiterkarte gehalten. Die Länge A der Lichtleiter ist variabel von 9-45mm möglich.

Die Verwendung der Lichtleiter erfolgt in Verbindung mit SMD LED’s. Das System

kann von 2-fach bis 10-fach geliefert werden, z.B. als Bargraph-Anzeige.

Multiple Displays, upright

2x5mm

2 x 5mm

General Remarks and Technical Data

General Remarks: see page 3

Technical Data LEDs: see page 39

LL-Material: PC clear UL94

Ambient Temperature: -40°C ... +85°C

ESD-Protection: <12kV

This light guide system for upright mounting provides light in form of a 2x5mm

LED on the front panel. The light guide is held in place on the printed board via

press-in lugs. The length A of the light guide is variable from 9-45mm. The light

guide is used in conjunction with SMD LEDs. The system is available from 2-fold

up to 10-fold, e.g. as a bargraph display.

x-fach Anzeige

x-fold Display

2

3

4

5

6

7

8

9

10

2

3

4

5

6

7

8

9

10

2

3

4

5

6

7

8

9

10

A

15

30

45

Empfohlene LED’s

Recommended LEDs

L1 - L12

Art.-Nr.

1274.1012

1274.1013

1274.1014

1274.1015

1274.1016

1274.1017

1274.1018

1274.1019

1274.1010

1274.1022

1274.1023

1274.1024

1274.1025

1274.1026

1274.1027

1274.1028

1274.1029

1274.1020

1274.1032

1274.1033

1274.1034

1274.1035

1274.1036

1274.1037

1274.1038

1274.1039

1274.1030

-

1735

-

1736

-

1737

-

1738

1739

-

1740

-

1741

-

1742

-

1743

-

1744

-

1745

-

1746

-

1747

-

1748

-

1749

-

1750

-

1751

-

1752

-

1753

-

1754

-

1755

-

1756

-

1757

-

1758

1759

-

1760

-

1761

-

Layoutvorschlag · Layout Suggestion

Frontplatte

Front panel

Lichtleiter

Light guide

LED

Mindestmengen für 2- bis 9-fach Anzeigen = 1.000 Stück

Sonderlänge auf Anfrage

Minimum quantity for 2- up to 9-fold displays = 1.000 pieces

Special lengths on request

Leiterkarte

PCB

Einbaubeispiel · Mounting Example

Magerdruck keine Lagerware · Bestellmenge und Preise auf Anfrage · Light printing non-stock item · Quantity and prices on request
