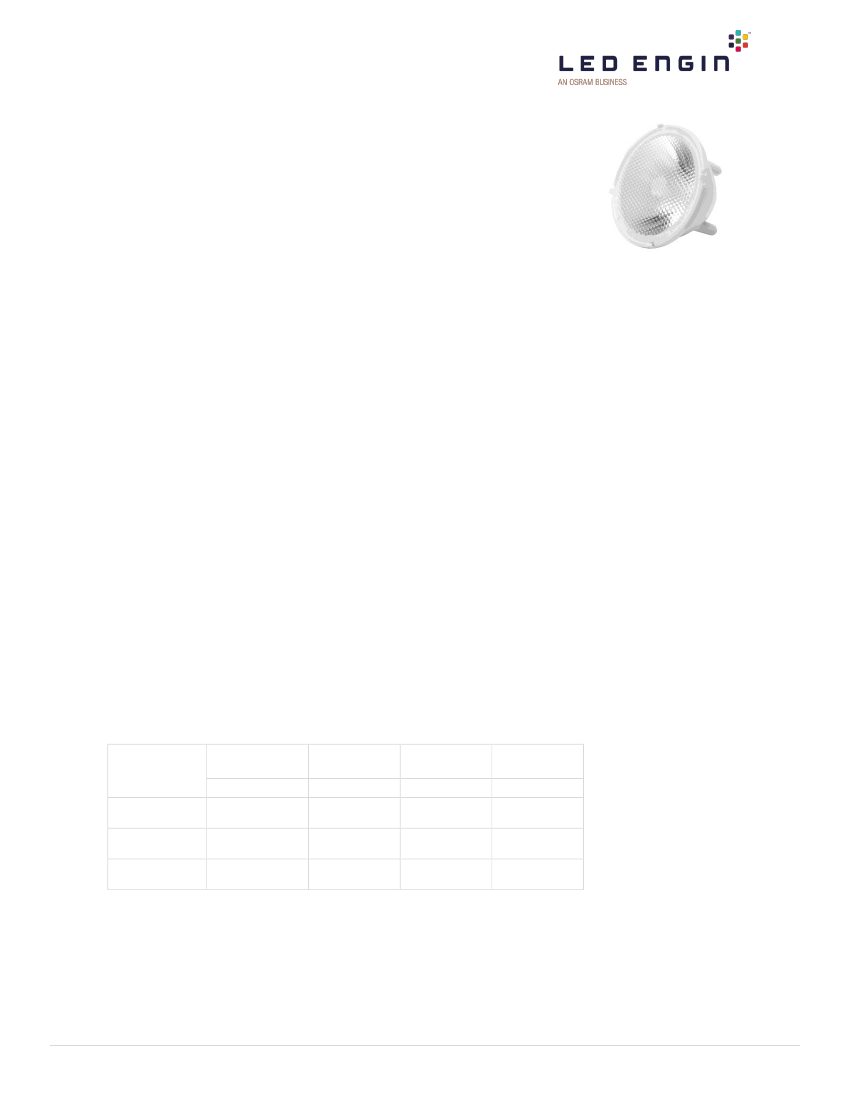

High Efficiency Lenses for LZ9 Emitter Family
LLxx-3T06-H
Key Features
Total Internal Reflection (TIR) optics provides a well-controlled beam
Designed specifically for LED Engin LZ9 emitter family
Provides the highest quality and quantity of light in a beam
Maximum lux on target and lumens in beam
Smooth light gradient eliminates hot spots and rings and minimizes glare for superior illumination
UL-rated optical grade PMMA lens material allows use of high current and temperature conditions
Lenses are available standard with holder that mount easily to LuxiGen LZ9 MCPCBs
Simple fastening of holder to MCPCB with appropriate adhesive, e.g. epoxy or polyurethane based
Typical Applications
Down lighting
Accent lighting
Track lighting
Architectural lighting
Entertainment
Description
This lens family couples with the compact, high-flux density LZ9 LuxiGen emitter family providing a range of beam
options and opening up new applications in stage and studio, architectural and down lighting. The TIR lens
collimates the LED light into efficient, well-controlled light beams that maximize the usable lumens in the target
area. Not only does this lighting solution provide the throw or distance required for these lighting applications, it
does so with a smooth, high quality beam of superior intensity uniformity, color over angle mixing, and with an
absence of discomfort glare or shadows.
Optical Specification
Part number
LLSP-3T06-H
LLNF-3T06-H
LLFL-3T06-H
1
Beam angle
2
degrees
17
26
39
Field angle
3
degrees
36
49
83
Optical
4
efficiency
%
90
90
90
On-axis
5
intensity
cd/lm
5.4
2.2
1.2
Notes:
1.
Lenses can also be ordered without the holder. Replace –H with –O for this option.
2.
Beam angle is defined as the full width at 50% of the max intensity (FWHM).
3.
Field angle is defined as the full width at 10% of the max intensity.
4.
Optical efficiency is defined as the ratio between the incoming flux and the outgoing flux.
5.
On-axis intensity is defined as the ratio between the total input lumen and the intensity in the optical center of the lens.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LLxx-3T06-H (2.1-03/29/2018)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com

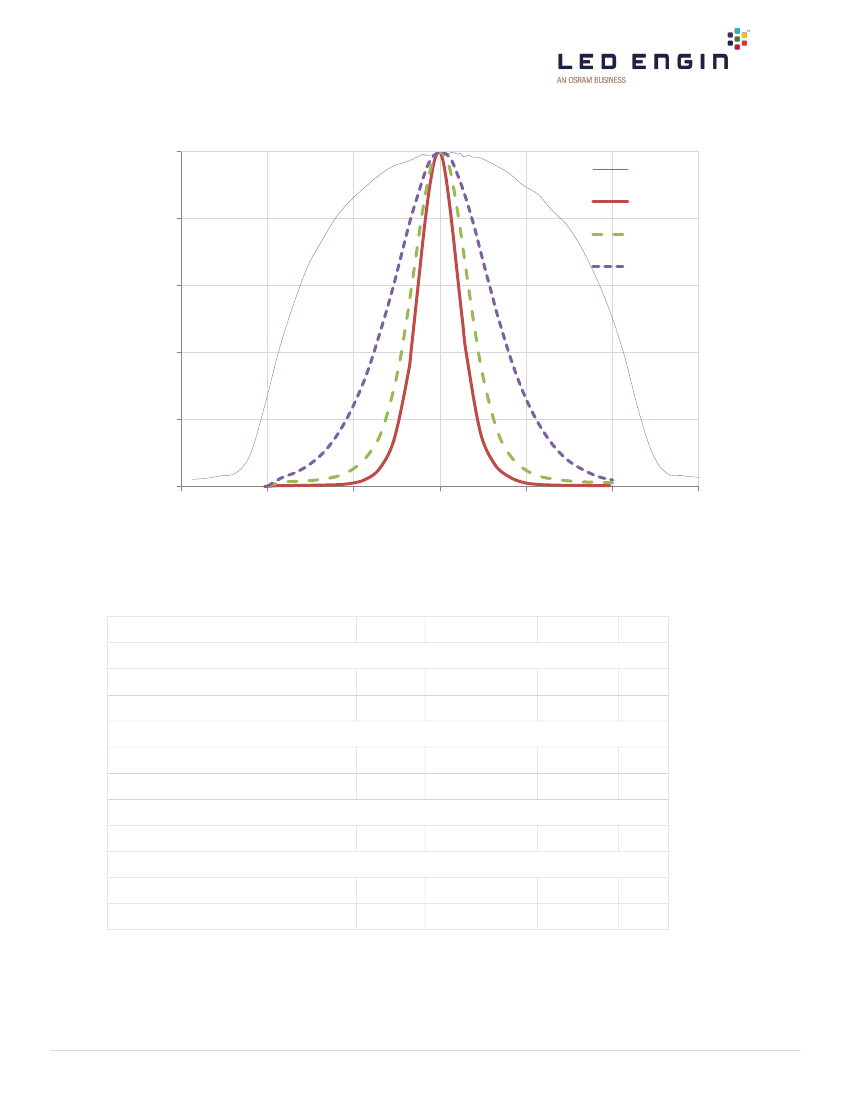

Typical Relative Intensity over Angle
100%
LZ9 emitter
LLSP-3T06-H
80%
LLNF-3T06-H
Relative Intensity
LLFL-3T06-H
60%
40%
20%
0%
-90
-60
-30
0
30
60
90
Angle (degrees)
General Characteristics
Symbol
Mechanical
Height from Seating Plane
Width
Material
Lens
Holder
Optical
Transmission
1
(>90%)
Environmental
Storage Temperature
Operating Temperature
Notes:
1.
Value
Rating
Unit
19.20
38.90
Typical
Typical
mm
mm
PMMA
Polycarbonate
λ
410-1100
Min-Max.
nm
T
stg
T
sol
-40 ~ +110
-40 ~ +110
Min-Max.
Min-Max.
°C
°C
It is not recommended to use a UV emitter with this lens due to lower transmission at wavelengths < 410nm.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
2
LLxx-3T06-H (2.1-03/29/2018)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com

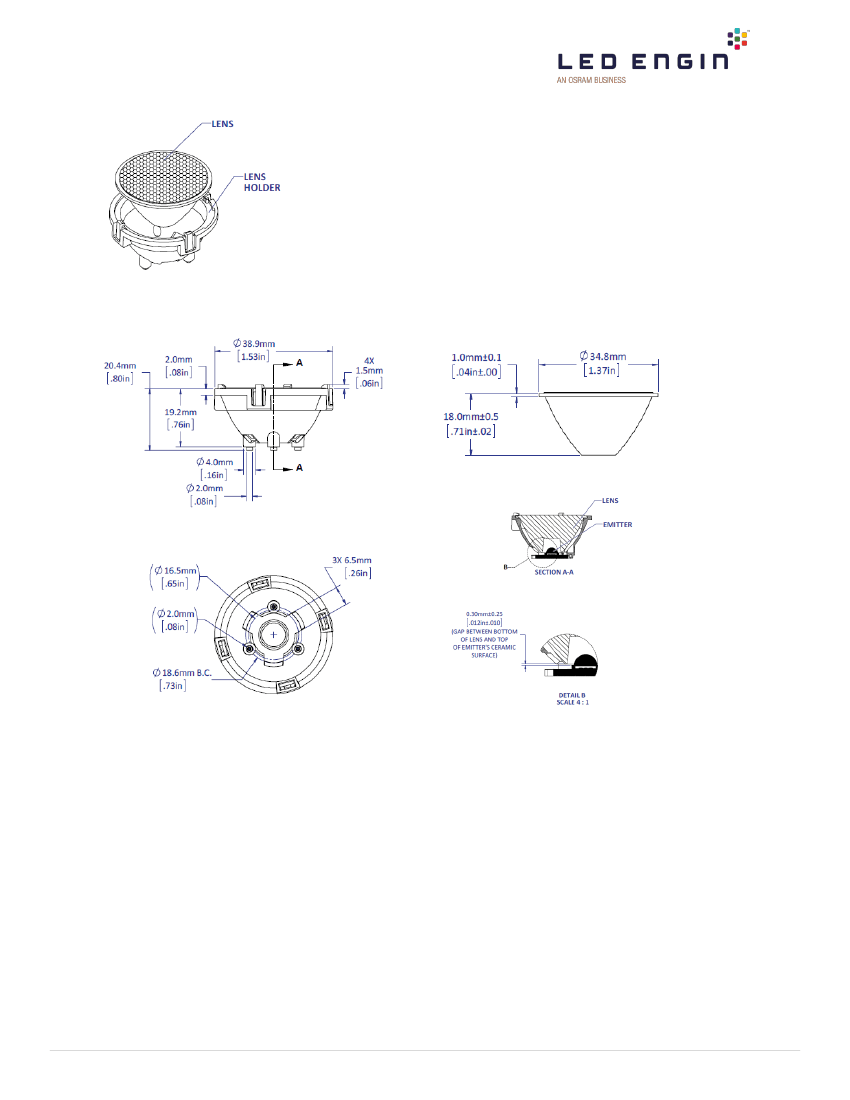

Mechanical Dimensions (mm)
Lens with Holder
Lens
Assembly Instruction
Lens holders can be assembled to the PCB using an epoxy or polyurethane-based adhesive (example: Dow Corning
3145 RTV).
Cyanoacrylate (superglue) adhesive should not be used to avoid contamination of the lens (blooming of the
epoxy).
When integrating the lens into a fixture without the lens holder, special attention is needed to maintain the
distance between the lens bottom and the emitter top. Variation in this distance will result in variation of the
beam profile. See mechanical detail B. on previous page.
Lens Cleaning
Use a lint-free soft cloth to dust off the lens. For deeper cleaning a solution of neutral detergent (example:
dishwashing soap) can be used. Do not use any solvents or abrasive liquid/fabric.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LLxx-3T06-H (2.1-03/29/2018)
3
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
