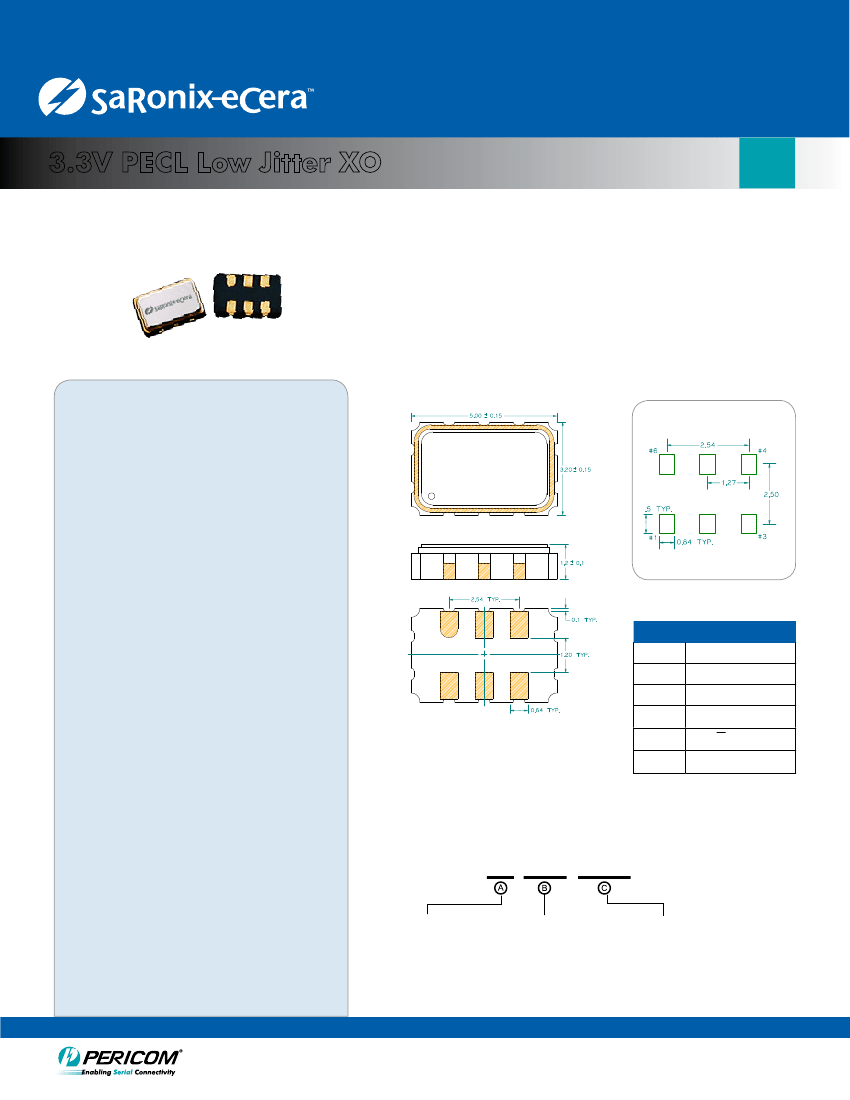

PD Series Crystal Clock Oscillator (XO)
5.0 x 3.2mm
3.3V PECL Low Jitter XO
PD
5.0 x 3.2mm Ceramic SMD
Package:
Product Features
• 38.88 to 162 MHz Frequency Range
• <1 ps RMS jitter with non-PLL design
•
Designed for standard reflow & washing
techniques
•
IBIS models available
• Pb-free & RoHS/Green compliant
Recommended Land Pattern:
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Product Description
The PD Series 3.3V crystal clock oscillator
achieves superb jitter and stability over a broad
range of operating conditions and frequencies.
The output clock signal, generated internally
with a non-PLL oscillator design, is compatible
with LVPECL logic levels. The device, available
on tape and reel, is contained in a 5.0 x
3.2mm surface-mount ceramic package.
Pin Functions:
Pin
Function
1
2
3
4
5
6
OE or NC
NC or OE
Ground
Q Output
Q Output
V
CC
Applications
The PD Series is ideal for high-speed
applications requiring low jitter, including:
• 1/10 Gigabit Ethernet
• 2/4/10G FibreChannel
•
Serial Attached SCSI (SAS)
•
Server & Storage platforms
• SONET/SDH linecards
•
Passive Optical Network (PON) devices
• HD Video Systems
Product½Family
Frequency½Code
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Part Ordering Information:
PB XXX YYYY
PD
Specification½Code
Following the above format, Saronix-eCera part numbers will be assigned upon
confirmation of exact customer requirements.
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
All specifications are subject to change without notice.
PD 3.3V REV2010_SEPT10_01.6
1
3.3V PECL Low Jitter XO
PD
PD Series Crystal Clock Oscillator (XO)
5.0 x 3.2mm
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output Frequency
Supply Voltage
Supply Current, enabled
Supply Current, Disabled
Frequency Stability
Operating Temperature Range
Output Logic 0, V
OL
Output Logic 1, V
OH
Output Load
Duty Cycle
Rise and Fall Time
Jitter, Phase
Jitter, Total
38.88
2.97
3.30
55
162
3.63
88
0.03
±20 to ±50
MHz
V
mA
mA
ppm
°C
V
V
As specified
See Note 1 below
Commercial (standard)
Industrial (standard)
-20
-40
V
CC
- 1.025
+70
+85
V
CC
- 1.62
50Ω connected connected to V
CC
- 2 V
45
500
0.5
55
850
1
25
%
ps
ps RMS (1-σ)
ps pk–pk
output requires termination
measured 50% of waveform
measured 20/80% of waveform
12kHz to 20MHz frequency band
100,000 random periods
Notes:
1. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (5 year at 40°C average effective ambient temperature), shock and vibration.
2. For specifications othere than those listed, please contact sales.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin OE), Output Enable
Input Voltage (pin OE), Output Disable (low power standby)
Internal Pullup Resistance
Output Disable Delay
Output Enable Delay
0.7
0.3
50
200
10
V
V
kΩ
ns
ms
or open
Outpus disabled to Hi-Z
Absolute Maximum Ratings
Parameter
Min.
Typ.
Max.
Units
Notes
Storage Temperature
-55
+125
°C
For the latest product information visit:
For test circuit go to:
http://www.pericom.com/products/timing/oscillators/PD_3.3V/
http://www.pericom.com/pdf/sre/tc_pecl.pdf
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow2.pdf
For tape and reel information go to:
http://www.pericom.com/pdf/sre/tr_5032_xo.pdf
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
All specifications are subject to change without notice.
PD 3.3V REV2010_SEPT10_01.6
2
