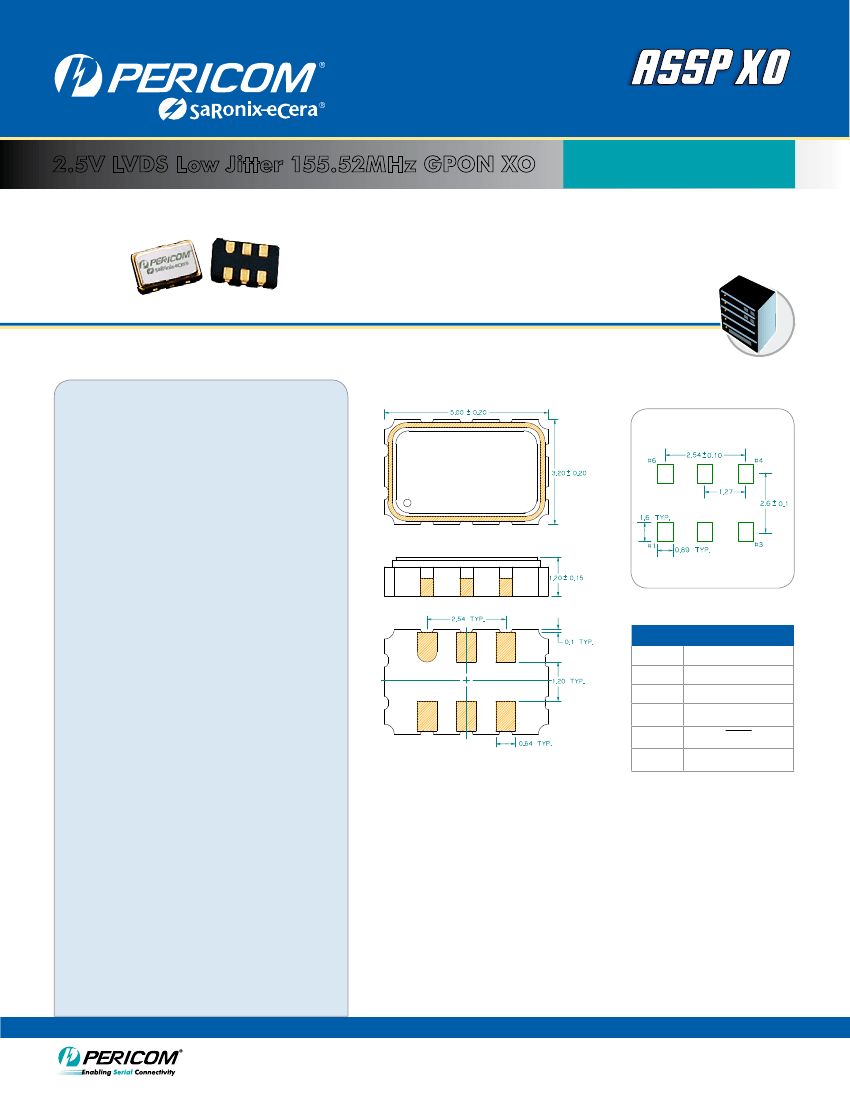

TM
Application Specific Crystal Oscillator 5.0 x 3.2mm
2.5V LVDS Low Jitter 155.52MHz GPON XO
LDGPON155
5.0 x 3.2mm Ceramic SMD
ASSP XO™ for Networking
Package:
(Scale: none, Dimensions are in mm)
Product Features
• Very low phase jitter
• Thicker crystal for improved reliability
•
Pb-free & RoHS compliant
•
Industrial temperature range
Recommended Land Pattern:
Product Description
The LD series 2.5V, 155.52MHz crystal clock
oscillator achieves superb jitter for GPON
applications. The output clock signal,
generated internally with a custom oscillator
design, is compatible with LVDS logic levels.
The device, available on tape and reel, is
contained in a 5.0 x 3.2mm surface-mount
ceramic package.
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Pin Functions:
Pin
Function
1
2
3
4
5
6
OE Function
N/C
V
EE
OUT
OUT
V
CC
Applications
• GPON Optical Network Unit (ONU)
• GPON Optical Line Termination (OLT)
• GPON Gateway
*Extended high frequency power decoupling is recommended (see test circuit for minimum
recommendation). To ensure optimal performance, do not route RF traces beneath the
package.
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Part Ordering Information:
LDGPON155
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
12-0053
•
www.pericom.com
07/13/12
1
All specifications are subject to change without notice.
LDGPON155
Rev E
2.5V LVDS Low Jitter 155.52 MHz GPON XO
LDGPON155
TM
Application Specific Crystal Oscillator 5.0 x 3.2mm
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output Frequency
Supply Voltage
Supply Current, Output Enabled
Supply Current, Output Disabled
Frequency Stability
Operating Temperature Range
Output Logic 0, V
OL
Output Logic 1, V
OH
Output Load
Duty Cycle
Rise and Fall Time
Jitter, Phase RMS (1-σ)
Jitter, pk–pk
45
-20
0.90
2.25
155.52
2.50
2.75
80
30
±50
+70
1.10
1.43
1.60
100Ω & 5pF
55
1.0
1.0
40
MHz
V
mA
mA
ppm
°C
V
V
output requires termination
%
ns
ps
ps
Measured 50% waveform
Measured 10/90% of waveform
12 kHz to 20 MHz frequency band
100,000 random periods
See Note 1 below
Notes:
1. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (5 year at 40°C average effective ambient temperature), shock and vibration.
2. For specifications othere than those listed, please contact sales.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin 1), Output Enable
Input Voltage (pin 1), Output Disable (low power standby)
Output Disable Delay
Output Enable Delay
Internal Pull Up Resistance
0.7* V
CC
0.3* V
CC
200
2
50
V
V
ns
ms
kΩ
or open
Outputs disabled to Hi-Z
Absolute Maximum Ratings
Parameter
Min.
Typ.
Max.
Units
Notes
Storage Temperature
-55
+125
°C
For the latest product information visit:
http://www.pericom.com/products/crystals-and-crystal-oscillators/assp-xo/?part=LDGPON155
For test circuit go to:
http://www.pericom.com/pdf/sre/tc_lvds.pdf
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
For tape and reel information go to:
http://www.pericom.com/pdf/sre/tr_5032_xo.pdf
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
12-0053
•
www.pericom.com
07/13/12
2
All specifications are subject to change without notice.
LDGPON155
Rev E
