11TW403-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 11TW403-8

11TW403-8: DescriptionToggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size43KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

11TW403-8 Overview

Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded

11TW403-8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	13.59 mm
body height	16.76 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	11TW403
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

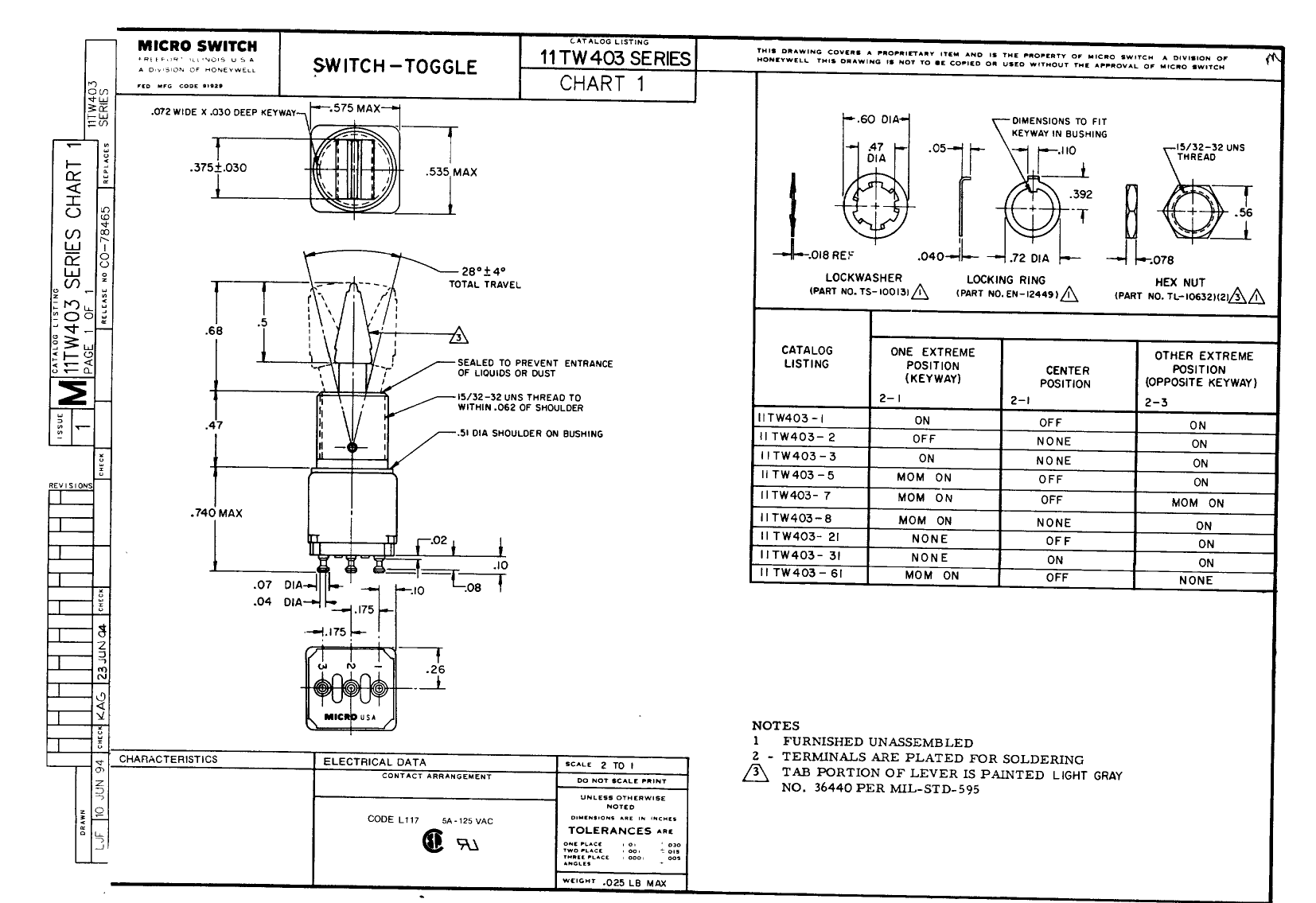

Preview

Download Datasheet

View All

11TW403-8 Related Products

	11TW403-8	11TW403-2	ATS-P2-141-C2-R0	11TW403-5	B070NC5S	11TW403-31	11TW403-3	11TW403-61
Description	Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	pushPIN™ HS ASMBLY,COARSE-PITCH,STRAIGHT, HOLE PATTERN:LEFT-TABBED,BLUE,T766	Toggle Switch, SPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	7.0 GHz Surface Mount Bandpass Filter	Toggle Switch, SPST, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknow	unknow	-	unknown	-	unknown	unknown	unknown
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	-	LEVER	-	LEVER	LEVER	LEVER
body width	13.59 mm	13.59 mm	-	13.59 mm	-	13.59 mm	13.59 mm	13.59 mm
body height	16.76 mm	16.76 mm	-	16.76 mm	-	16.76 mm	16.76 mm	16.76 mm
Body length or diameter	14.61 mm	14.61 mm	-	14.61 mm	-	14.61 mm	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	-	5A@125VAC	-	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	-	5 A	-	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	-	125 V	-	125 V	125 V	125 V
Manufacturer's serial number	11TW403	11TW403	-	11TW403	-	11TW403	11TW403	11TW403
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	-	DUST PROOF; WATER PROOF	-	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	-	NO	-	NO	NO	NO
Switch action	MOMENTARY	LATCHED	-	LATCHED AND MOMENTARY	-	LATCHED	LATCHED	MOMENTARY
switch function	SPDT	SPST	-	SPDT	-	SPST	SPST	SPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	-	TOGGLE SWITCH	-	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	-	WIRE	-	WIRE	WIRE	WIRE
Base Number Matches	1	1	-	1	-	1	1	1
