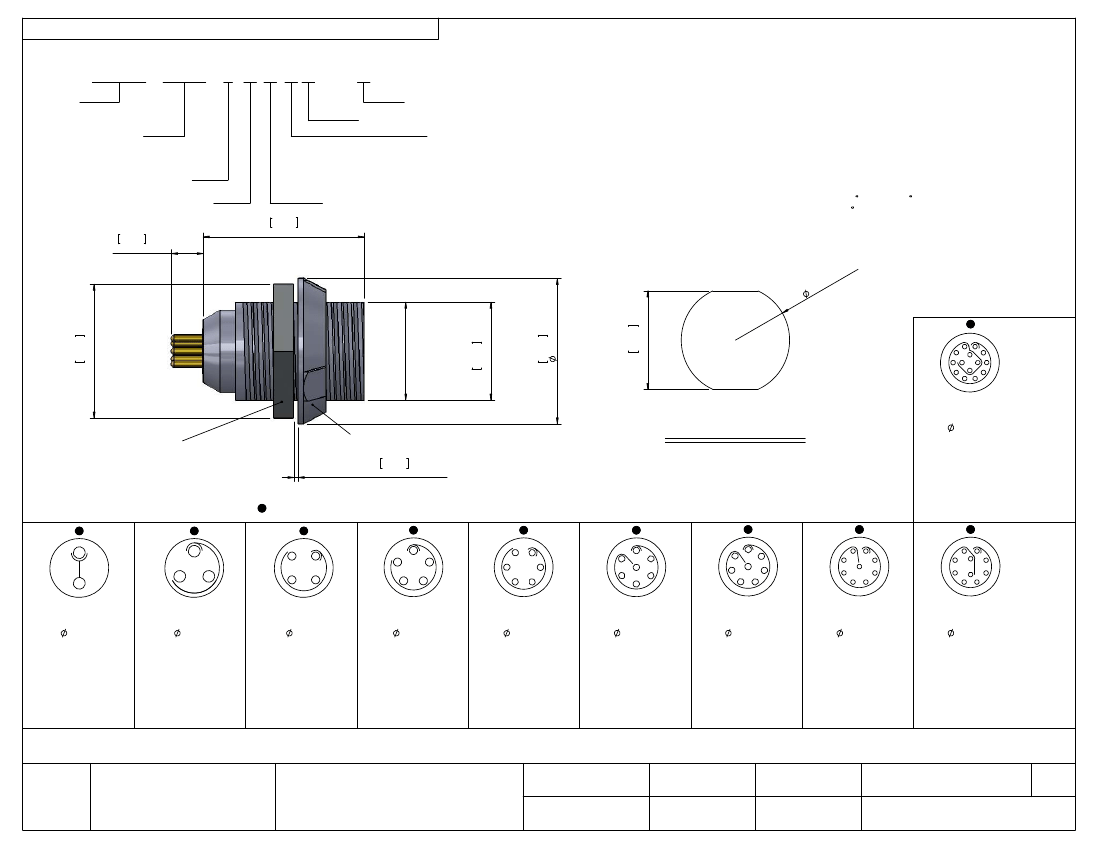

DESCRIPTION:
QUIK-LOQ - FEMALE - VERTICAL - PANEL MOUNT - PLASTIC
UNITS = MM [INCHES]
CHARACTERISTICS
MATERIALS
HOUSING : ABS+PC
HOUSING COLOR : GREY
NUT A : BRASS
NUT A PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
MECHANICAL
DURABILITY: 2000 CYCLES
OPERATING TEMP. RANGE: -20 C ~ +120 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 0.7 Nm [6.19 IN/lbs]
IP RATING: 50
1]
55
[0.
0
8P1P YYY 2 1 0 YR B 01
SERIES
14.00 [0.551]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
VERTICAL (PANEL MOUNT)
0.157
4.00
0.797
20.25
1 = GOLD FLASH
RoHS COMPLIANT
NUT "B" COLOR
G = GREY
A = BLUE
J = YELLOW
N = BLACK
R = RED
V = GREEN
PLASTIC SHELL
.0
14
0.488
12.40
(ACROSS FLATS)
M14*1.0
0.728
18.50
0.496
12.60
0.669
17.00
1
NUT
A
NUT
B
0.276
7.00
(MAX. PANEL THICKNESS)
PANEL CUTOUT
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
14 POSITION
3 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 333V
CHART A
1
1
= KEY LOCATION
1
1
1
1
1
1
1
2 POSITION
10 AMP MAX.
= 1.30 [0.051]
PIN
3 POSITION
10 AMP MAX.
PIN
= 1.30 [0.051]
4 POSITION
8 AMP MAX.
PIN
= 0.90 [0.035]
5 POSITION
8 AMP MAX.
PIN
= 0.90 [0.035]
6 POSITION
6 AMP MAX.
PIN
= 0.70 [0.028]
7 POSITION
6 AMP MAX.
PIN
= 0.70 [0.028]
8 POSITION
5 AMP MAX.
PIN
= 0.70 [0.028]
9 POSITION
3 AMP MAX.
PIN
= 0.50 [0.020]
10 POSITION
3 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 500V
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 500V
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 500V
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1100V
WORKING VOLTAGE
= 500V
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 1000V
WORKING VOLTAGE
= 450V
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 1000V
WORKING VOLTAGE
= 450V
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 875V
WORKING VOLTAGE
= 400V
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 333V
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 333V
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
10-04-16
N.T.S.
1
DWG NO.
2
1
8P1PYYY210YRB01
DESCRIPTION:
QUIK-LOQ - FEMALE - VERTICAL - PANEL MOUNT - PLASTIC
UNITS = MM [INCHES]

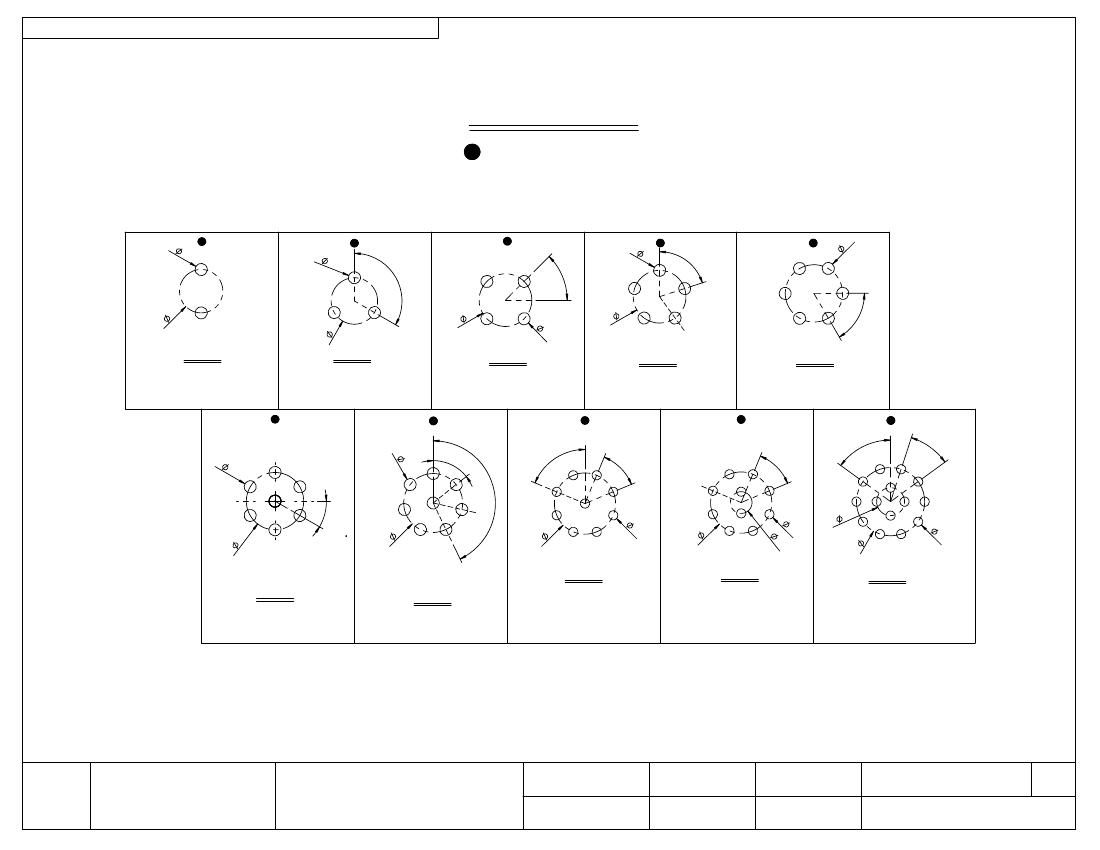

BOARD LAYOUTS
= KEY LOCATION
A
A
A
B
2 POS
A = 0.80 [0.031]
B = 2.80 [0.110]
3 POS
A = 0.80 [0.031]
B = 3.00 [0.118]
4 POS
A = 0.80 [0.031]
B = 3.40 [0.134]
5 POS
A = 0.80 [0.031]
B = 3.40 [0.134]
6 POS
A = 0.80 [0.031]
B = 3.70 [0.146]
60
TY °
P.
°
.00
54
B
B
B
A
°
72 P.
TY
0°
1 2 P.
TY
45° .
TYP
A
°
.50
67
154.
A
51
.4
3°
29°
3
TY 6°
P.
°
45 P.
TY
°
45 P.
TY
A
30°
TYP
.
C
A
B
B
B
B
9 POS
7 POS
A = 0.80 [0.031]
B = 3.70 [0.146]
10 POS
A = 0.70 [0.028]
B = 3.95 [0.156]
C = 1.40 [0.055]
B
A
A
C
14 POS
A = 0.70 [0.028]
B = 4.40 [0.173]
C = 1.90 [0.075]
8 POS
A = 0.80 [0.031]
B = 3.80 [0.150]
A = 0.70 [0.028]
B = 3.85 [0.152]
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
10-04-16
N.T.S.
2
DWG NO.
2
1
8P1PYYY210YRB01
