5452384

Description
TERM BLOCK HDR 16POS 5.08MM
CategoryThe connector
File Size92KB,4 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5452384 Online Shopping

Suppliers Part Number Price MOQ In stock
5452384 - - View Buy Now

5452384 Overview

TERM BLOCK HDR 16POS 5.08MM

5452384 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (4 sides)
Number of pins16
Number of pins per level16
Number of levels1
spacing0.200"(5.08mm)
Needle seat direction90°, right angle
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC12A
Voltage - IEC400V
Current - UL15A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristicmating flange
Material flammability rating-
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact material-
Shell material-
Contact tail length0.138"(3.50mm)
Insulation height0.339"(8.61mm)
https://www.phoenixcontact.com/us/products/5452384

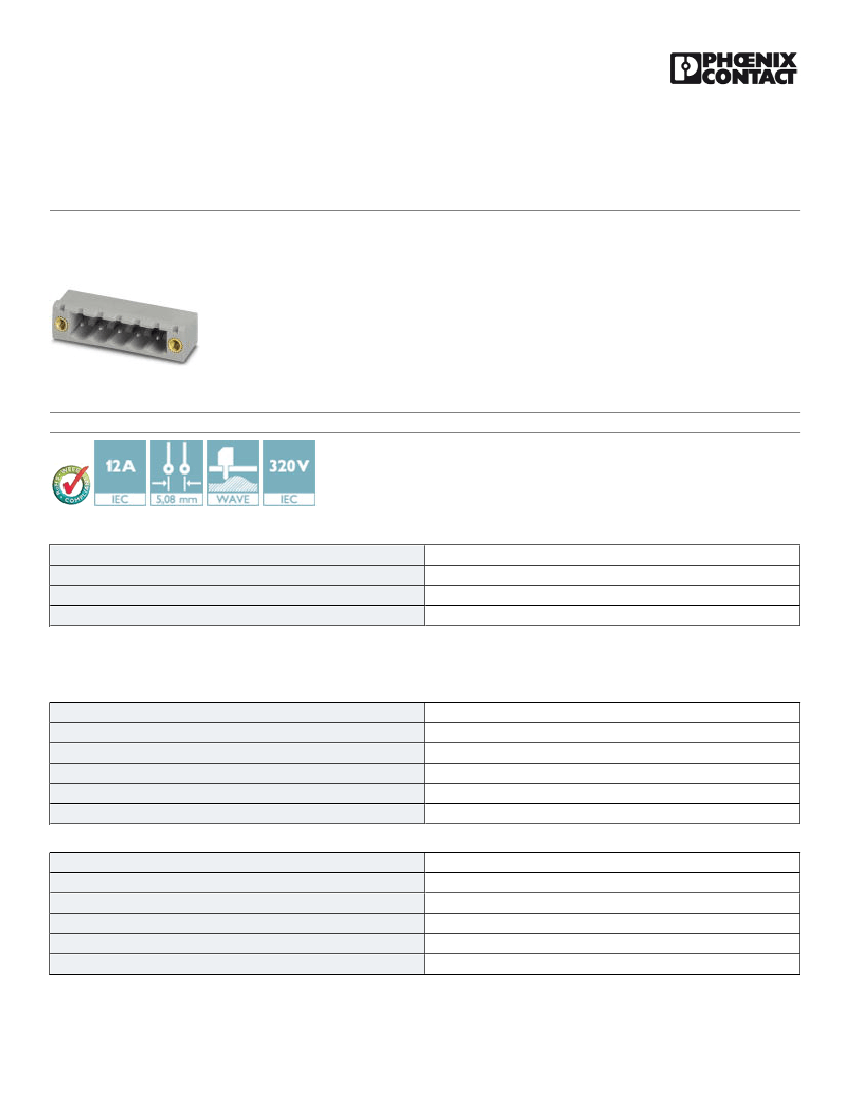

Printed-circuit board connector - BCH-508HF-16 BK - 5452384
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5.08 mm, Color:
black, Contact surface: Tin, Mounting: Wave soldering
The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
100 pc
85366990
China
Technical data
Dimensions
Length
Pitch
Dimension a
Length of the solder pin
Pin dimensions
Hole diameter
12 mm
5.08 mm
76.2 mm
3.4 mm
1 x 1 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
BCH-HF
I
4 kV
4 kV
4 kV
250 V
05/03/2016   Page 1 / 4
