GB15JHC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> GB15JHC

GB15JHC: DescriptionSWITCH PUSH SPDT 0.4VA 28V; Categoryaccessories; File Size308KB，4 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric Compare View All

GB15JHC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GB15JHC	-	-	View	Buy Now

GB15JHC Overview

SWITCH PUSH SPDT 0.4VA 28V

GB15JHC Parametric

Parameter Name	Attribute value
type	Standard, illuminated
circuit	SPDT
switch function	On-momentary
Rated current	0.4VA（AC/DC）
Rated voltage - AC	28V
Rated voltage - DC	28V
Actuator type	round, plunger
Color - Actuator/Cap	transparent
lighting type, color	LED, red
Lighting voltage (nominal)	1.95 VDC
Installation type	Through hole, right angle
Terminal type	PC pin
Intrusion protection	-
characteristic	-
Panel opening size	-
Operating temperature	-25°C ~ 55°C
Mechanical life	50,000 cycles
Electrical life	50,000 cycles

Preview

Download Datasheet

View All

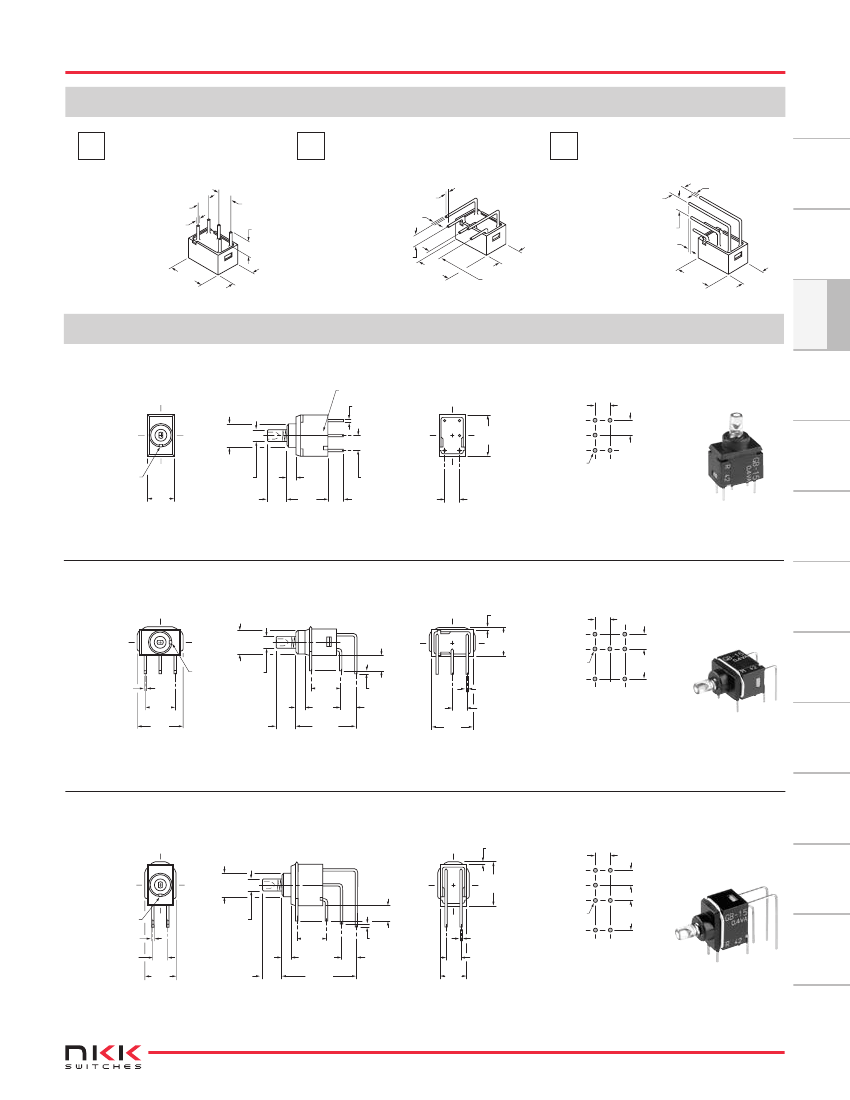

Series GB

Toggles

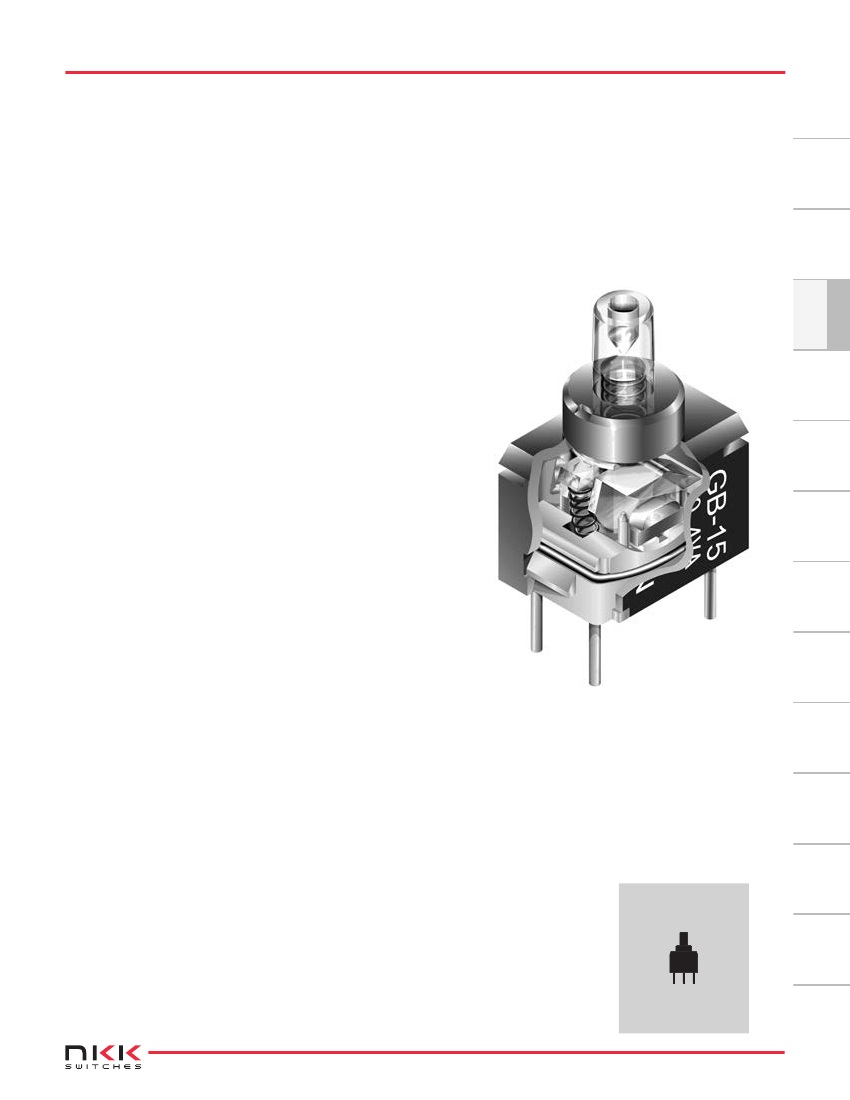

Ultra-Miniature Fully Illuminated Plungers

Rockers

General

Specifications

Electrical Capacity (Resistive Load)

Logic Level:

0.4VA maximum @ 28V AC/DC maximum

(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)

Note: Find additional explanation of operating range in Supplement section.

Pushbuttons

Programmable

Illuminated PB

Other Ratings

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Travel:

80 milliohms maximum

500 megohms minimum @ 500V DC

500V AC minimum for 1 minute minimum

50,000 operations minimum

1.70N

Pretravel .035” (0.9mm); Overtravel .008” (0.2mm); Total Travel .043” (1.1mm)

Keylocks

Materials & Finishes

Slides

Plunger:

Case:

Sealing Rings:

Movable Contact:

Stationary Contacts:

Base:

Switch Terminals:

Lamp Terminals:

Polyamide

Glass fiber reinforced polyamide

Nitrile butadiene rubber

Phosphor bronze with gold plating

Glass fiber reinforced polyamide

Phosphor bronze with gold plating

Rotaries

Environmental Data

Tactiles

Operating Temperature Range:

Humidity:

Vibration:

Shock:

–25°C through +55°C (–13°F through +131°F)

90 ~ 95% humidity for 240 hours @ 40°C (104°F)

10 ~ 500Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 15 minutes; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Tilt

PCB Processing

Touch

Soldering:

Cleaning:

Wave Soldering recommended. See Profile A in Supplement section.

Manual Soldering: See Profile A in Supplement section.

Automated alcohol based cleaning recommended, 5 minutes maximum. Do not use high-purity

alcohol (50% alcohol or more) or organic solvent. High alcohol solution can damage clear plastic.

See Cleaning specifications in Supplement section.

Indicators

Standards & Certifications

Supplement

Accessories

The GB Series illuminated pushbuttons have not been tested for UL recognition or CSA certification.

These switches are designed for use in a low-voltage, low-current, logic-level circuit.

When used as intended in a logic-level circuit, the results do not produce hazardous energy.

www.nkk.com

GB15JHC Related Products

	GB15JHC	GB15JVC	GB15JHD	GB15JPF	GB15JVF
Description	SWITCH PUSH SPDT 0.4VA 28V	SWITCH PUSH SPDT 0.4VA 28V	SWITCH PUSH SPDT 0.4VA 28V	SWITCH PUSH SPDT 0.4VA 28V	SWITCH PUSH SPDT 0.4VA 28V
type	Standard, illuminated	Standard, illuminated	Standard, illuminated	Standard, illuminated	Standard, illuminated
circuit	SPDT	SPDT	SPDT	SPDT	SPDT
switch function	On-momentary	On-momentary	On-momentary	On-momentary	On-momentary
Rated current	0.4VA（AC/DC）	0.4VA（AC/DC）	0.4VA（AC/DC）	0.4VA（AC/DC）	0.4VA（AC/DC）
Rated voltage - AC	28V	28V	28V	28V	28V
Rated voltage - DC	28V	28V	28V	28V	28V
Actuator type	round, plunger	round, plunger	round, plunger	round, plunger	round, plunger
Color - Actuator/Cap	transparent	transparent	transparent	transparent	transparent
lighting type, color	LED, red	LED, red	LED, amber	LED, green	LED, green
Lighting voltage (nominal)	1.95 VDC	1.95 VDC	2 VDC	2.1 VDC	2.1 VDC
Installation type	Through hole, right angle	Through hole, right angle, vertical	Through hole, right angle	Through hole	Through hole, right angle, vertical
Terminal type	PC pin	PC pin	PC pin	PC pin	PC pin
Operating temperature	-25°C ~ 55°C	-25°C ~ 55°C	-25°C ~ 55°C	-25°C ~ 55°C	-25°C ~ 55°C
Mechanical life	50,000 cycles	50,000 cycles	50,000 cycles	50,000 cycles	50,000 cycles
Electrical life	50,000 cycles	50,000 cycles	50,000 cycles	50,000 cycles	50,000 cycles
