4400.003

Description
CIR BRKR THRM 10A 240VAC 48VDC
CategoryCircuit protection
File Size388KB,6 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Environmental Compliance
Download Datasheet Parametric View All

4400.003 Overview

CIR BRKR THRM 10A 240VAC 48VDC

4400.003 Parametric

Parameter NameAttribute value
Circuit breaker typeThermal type
Rated current10A
Rated voltage - AC240V
Rated voltage - DC48V
Number of poles1
Actuator typePress reset
illumination-
Lighting voltage (nominal)-
Installation typePanel mounting
Thermal (T- and TA-Line)
https://www.schurter.com /PG17_20
T11-611

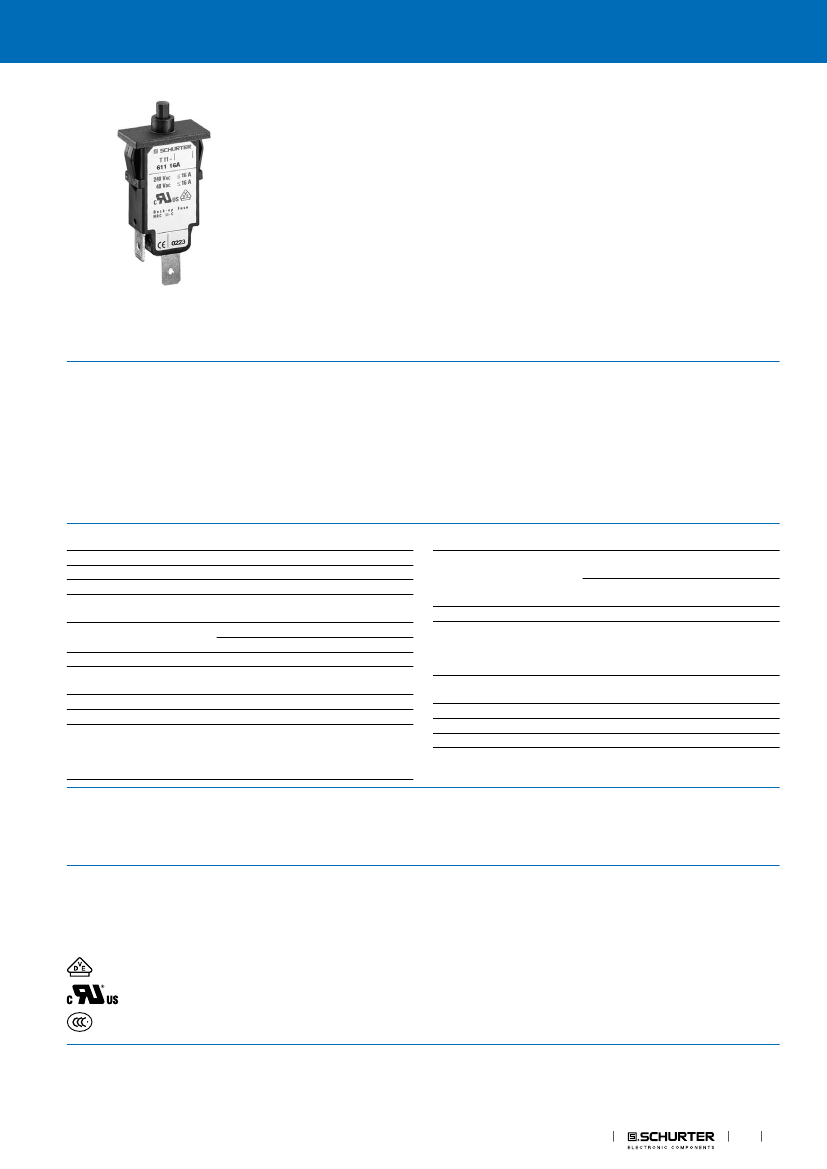

Circuit Breaker for Equipment thermal, Snap-in type, Reset type, Quick connect terminals
See below:
Approvals and Compliances
Description
-
-
-
-
-
-
-
-
-
Snap-in version
Thermal circuit breaker
1-pole
Reset type
Quick connect terminals 6.3 x 0.8 mm
Compact design
Positively trip-free release
Available with cover
Different mounting possibilities
Applications
-
-
-
-
Power tools
Household Equipment
Power supplies and chargers
Industrial appliances
Unique Selling Proposition
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Product News
Technical Data
Rated Voltage AC
Rated Voltage DC
Rated current range AC
Conditional short circuit ca-
pacity
Short circuit capacity Icn
Degree of Protection
Dielectric Strength
Insulation Resistance
Endurance typical
Endurance minimum
240 V: 50/60 Hz
48 V
0.05 - 16 A
IEC: Inc, PC1, AC 240 V: 2 kA
at In < 6.5 A/240 VAC : 8 x In
at In
6.5 A/240 VAC : 96 A
from front side IP 40 acc. to IEC 60529
50 Hz: > 1.5 kV
Impulse 1.2/50
μs:
> 2.5 kV
500 VDC > 100 MΩ
2 x Ir: 500 switching cycles
Reset type
AC : 2 x Ir , cos
φ
0.6 :
DC : 2 x Ir , L/R = 2 - 3 ms :
50 switching cycles
Overload
Allowable Operation Temp.
Vibration Resistance
IEC: min. 40 trips
@ 6 x Ir, cos
φ
0.6
UL / CSA: min. 50 trips
@ 1.5 x Ir, cos
φ
0.75
-5 °C to 60 °C
± 1.5 mm @ 10 - 60 Hz
acc. to IEC 60068-2-6, test Fc
5 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Fc
100 G / 6 ms
acc. to IEC 60068-2-27, test Ea
Thermal
Reset type
ca. 10 g
Shock Resistance
Tripping Type
Actuation Type
Weight

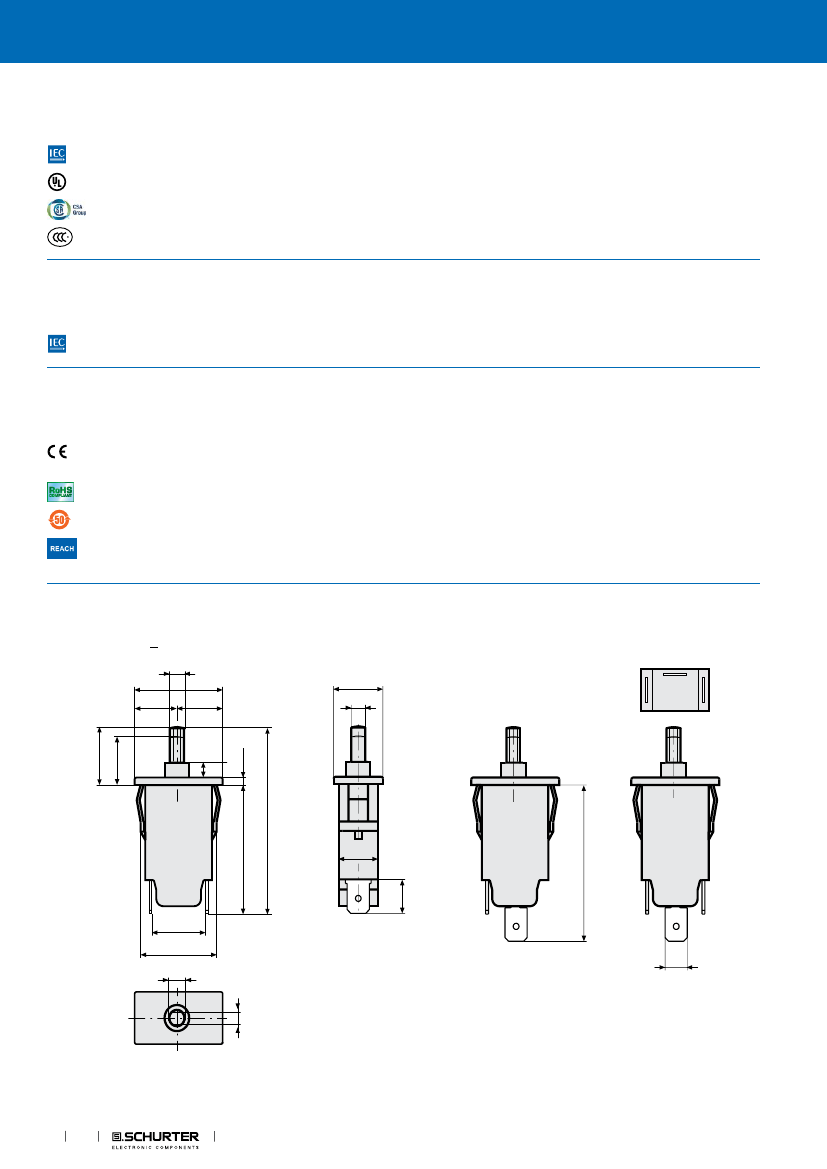

Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: T11
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
VDE Certificate Number: 99759
UL File Number: E71572
CCC Certificate Number: 2012010307564692
Circuit Breakers
