Overview

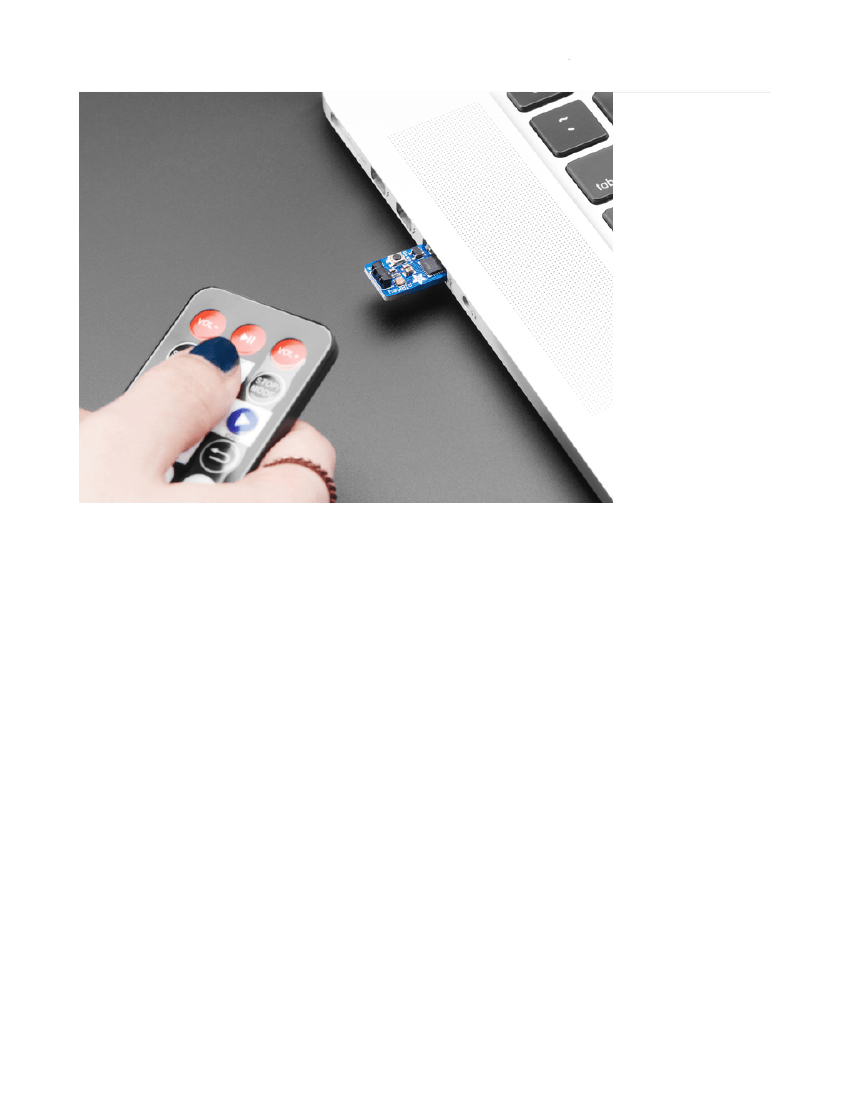

The pIRkey adds an IR remote receiver to any computer, laptop, tablet...any computer or device with a USB port that
can use a keyboard. This little board slides into any USB A port, and shows up as an every-day USB keyboard. The
onboard ATSAMD21 microcontroller listens for IR remote signals and converts them to keypresses, mouse movements,
or even USB serial output.
© Adafruit Industries
https://learn.adafruit.com/adafruit-pirkey-python-programmable-infrared-usb-adapter
Page 3 of 17
Infrared is our favorite wireless protocol - no antennas, certifications, pairings, passwords, or special tools required.
Works everywhere in the world and very intuitive - everyone's got an IR remote in their home!
Our original
IRkey
(https://adafru.it/BhO)
was a small USB-pluggable microcontroller board with an IR receiver, an Attiny85
microcontroller and indicator LED. When certain remote control commands were received, the IRkey would send
corresponding keyboard presses. It was great,
but
was not easy to customize - you
had
to use the remote we sold it
work.
© Adafruit Industries
https://learn.adafruit.com/adafruit-pirkey-python-programmable-infrared-usb-adapter
Page 4 of 17

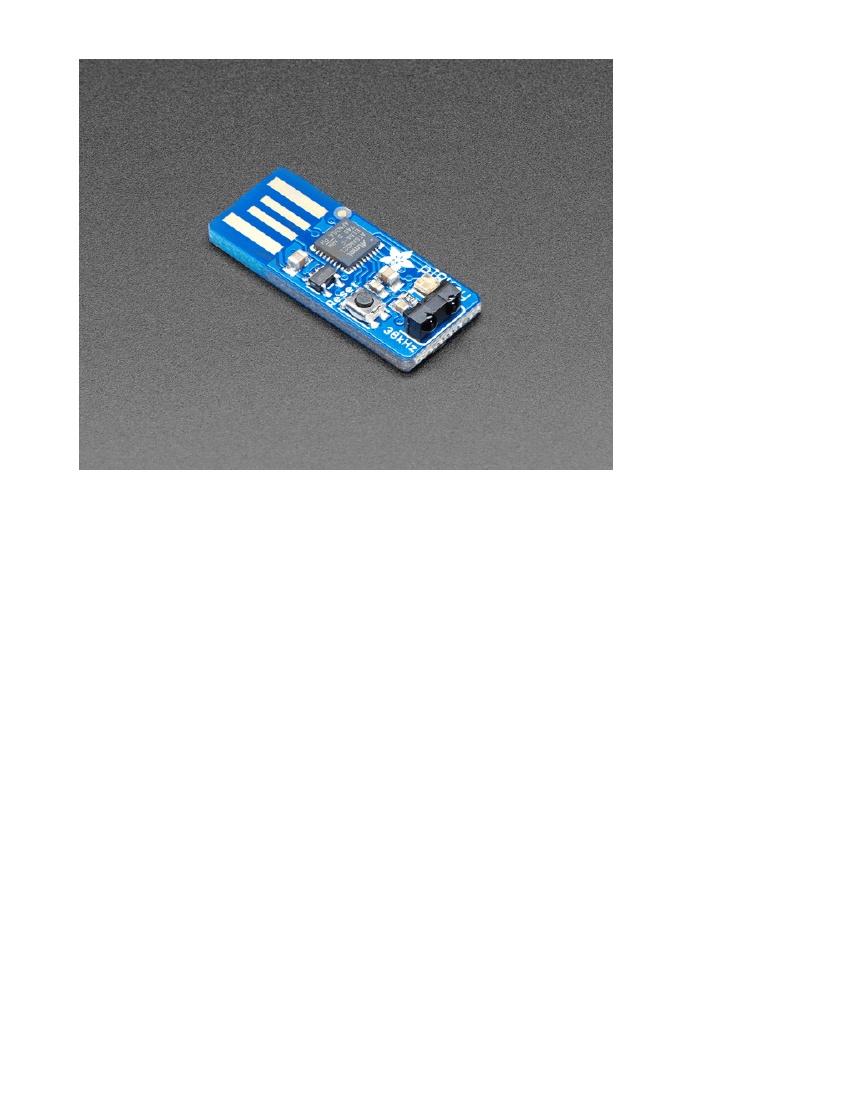

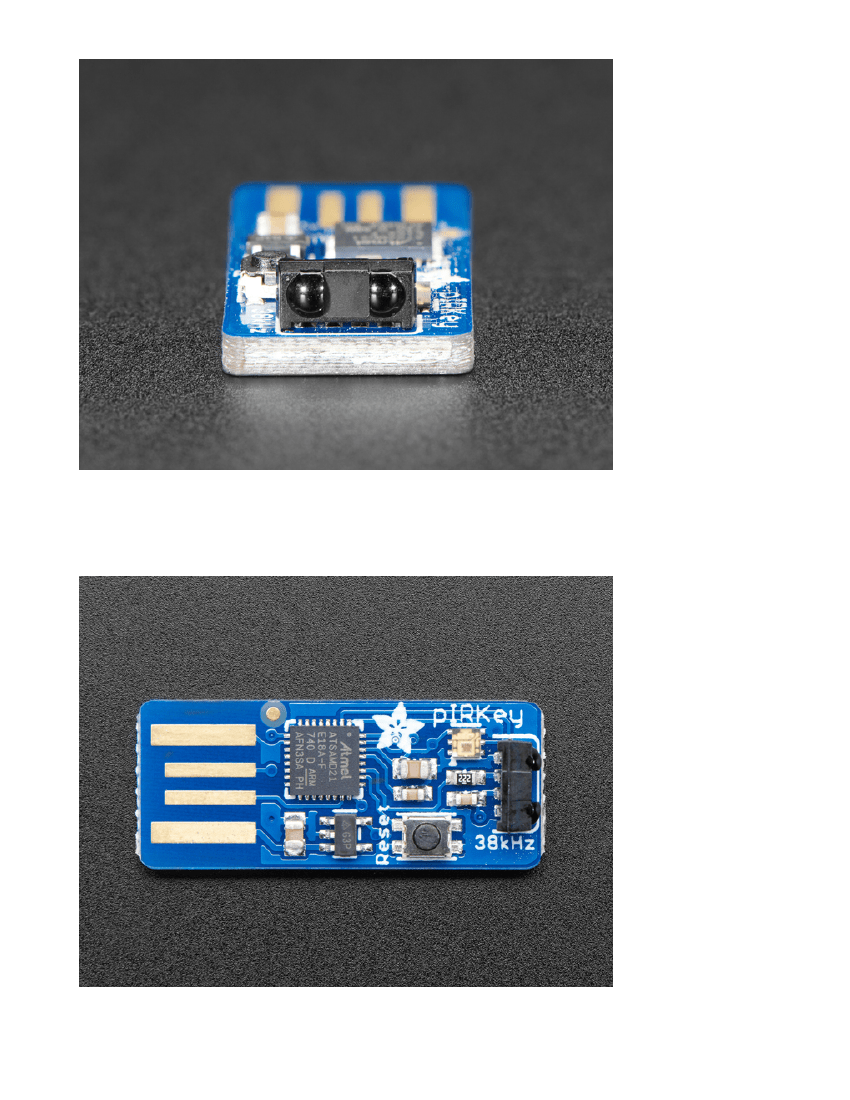

The pIRkey is an improvement on our original IRkey product, by adding a p for python. Now that we have
