T4ZG106K025CRLB4900 datasheet, PDF

Datasheet> All Categories > Passive components> T4ZG106K025CRLB4900

T4ZG106K025CRLB4900: DescriptionMEDICAL GRADE TANTALUM CAP; CategoryPassive components; File Size87KB，5 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

T4ZG106K025CRLB4900 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T4ZG106K025CRLB4900	-	-	View	Buy Now

T4ZG106K025CRLB4900 Overview

MEDICAL GRADE TANTALUM CAP

T4ZG106K025CRLB4900 Parametric

Parameter Name	Attribute value
capacitance	10µF
Tolerance	±10%
Voltage - Rated	25V
type	molded
ESR (equivalent series resistance)	350 milliohms @ 100kHz
Operating temperature	-55°C ~ 125°C
Service life at different temperatures	-
Installation type	surface mount
Package/casing	2711 (6728 metric)
size/dimensions	0.265" long x 0.110" wide (6.73mm x 2.79mm)
Height - Installation (maximum)	0.125"（3.17mm）
lead spacing	-
Manufacturer size code	G
grade	-
characteristic	Universal
failure rate	B（0.1%）

Preview

Download Datasheet

View All

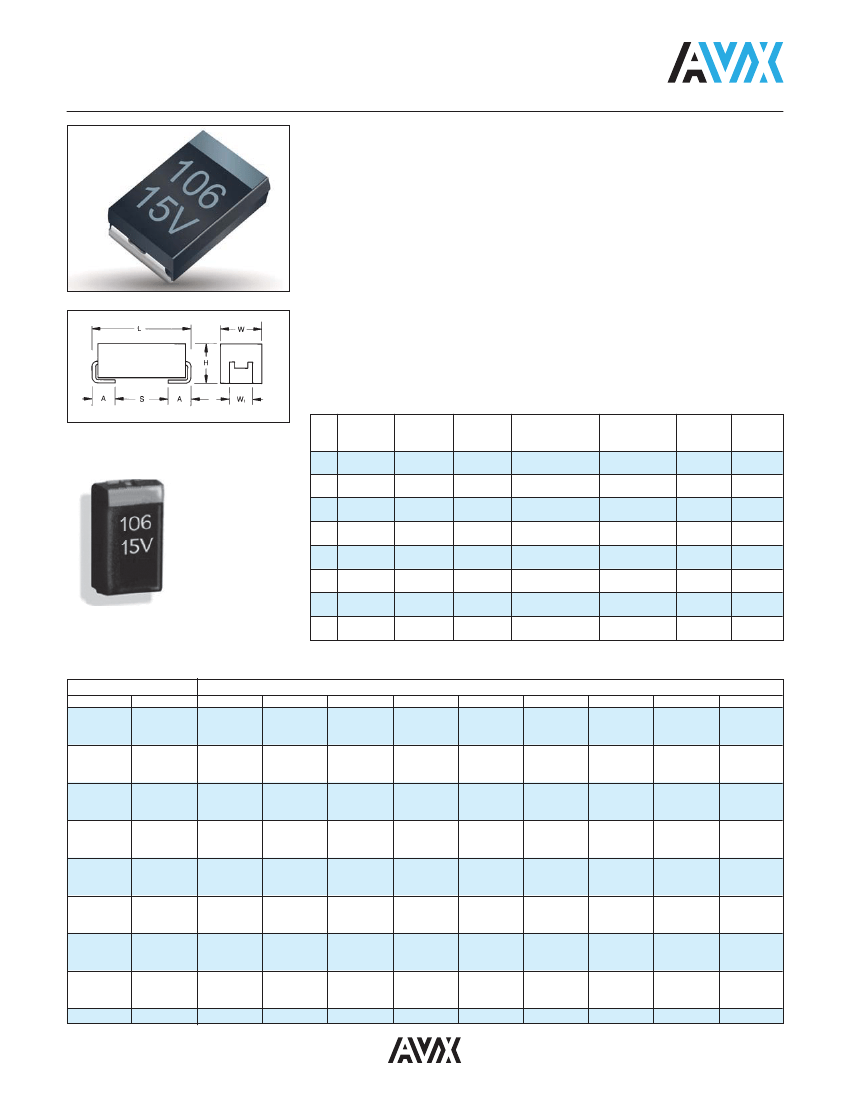

T4Z – Medical Series

HRC4000 Medical Grade for Non-Critical Applications

The T4Z HRC4000 Medical Grade series is

designed for use in non-critical medical

applications. The T4Z product line is based on

the MIL-PRF- 55365 case sizes A-H. Statistical

screening is used resulting in DC leakage levels

significantly lower than commercial solid

tantalum capacitors.

These components are manufactured and tested

in AVX’s high reliability tantalum capacitor plant in

Biddeford, Maine which is ISO 13485 certified.

Reliability grading to implantable device

standards and surge current testing options per

MIL-PRF-55365 are available along with several

plating options including tin/lead solder, 100%

tin, or gold terminations.

To request a specific rating or for more

information on HRC4000 testing details please

contact the factory.

APPLICATIONS

Medical Devices for

Non-Critical Applications

• Implantable, Non-Life Sustaining Devices

• e.g. implanted temporary cardiac monitor, insulin pumps

• External, Life Sustaining Devices

• e.g. heart pump external controller

• External Devices

• e.g. patient monitoring, diagnostic equipment

CASE DIMENSIONS:

MARKING

(White marking on black body)

Polarity Stripe (+)

Capacitance Code

Rated Voltage

5.08 (0.200)

5.59 (0.220)

6.73 (0.265)

7.24 (0.285)

2.54 (0.100)

3.43 (0.135)

2.79 (0.110)

3.81 (0.150)

1.27 (0.050)

1.78 (0.070)

Case Length (L)

Width (W)

Height (H)

Code ±0.38 (0.015) ±0.38 (0.015) ±0.38 (0.015)

2.54 (0.100)

3.81 (0.150)

5.08 (0.200)

3.81 (0.150)

1.27 (0.050)

2.54 (0.100)

1.27 (0.050)

Term. Width (W

)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

millimeters (inches)

Term. Length (A)

+0.25/-0.13

(+0.010/-0.005)

0.76 (0.030)

1.27 (0.050)

S min

0.38 (0.015)

1.65 (0.065)

2.92 (0.115)

1.65 (0.065)

2.92 (0.115)

3.43 (0.135)

3.56 (0.140)

4.06 (0.160)

Typical

Weight (g)

0.016

0.025

0.035

0.045

0.065

0.125

0.205

0.335

3.30±0.13

(0.130±0.005)

2.67±0.13

2.79 (0.110)

(0.105±0.005)

3.68+0.13/-0.51

2.79 (0.110) (0.145+0.005/-0.020)

CAPACITANCE AND RATED VOLTAGE, V

(VOLTAGE CODE) RANGE (LETTER DENOTES CASE SIZE)

Capacitance

μF

Code

0.10

104

0.15

154

0.22

224

0.33

334

0.47

474

0.68

684

105

1.5

155

2.2

225

3.3

335

4.7

475

605

6.8

685

106

146

156

226

336

476

686

100

107

150

157

220

227

300

307

330

337

10V

12V

Rated Voltage

15V

20V

25V

35V

50V

A/B

B/D

B/D/E

D/E/F

F/G

F/G/H

A/B/C

B/D

B/D/E

A/B

B/D

D/E

F/G

G/H

D/E

A/B

B/D/E

B/D/F

E/F/G

E/F/G/H

D/E/F

F/G

F/H

E/F

E/G

051018
