31.9158 Overview

FUS, SHOCK-SAFE FUSEHOLDER, IP67

31.9158 Parametric

Parameter NameAttribute value
Fuse holder typeSupport
Fuse typebox
Supporting products/related products-
Fuse size5mm x 20mm
Number of circuits1
Voltage600V
Rated current32A
Installation typePanel mounting
towardsvertical
Terminal typeQuick Connect - 0.250" (6.3mm)
Contact materialcopper
Contact platingtin

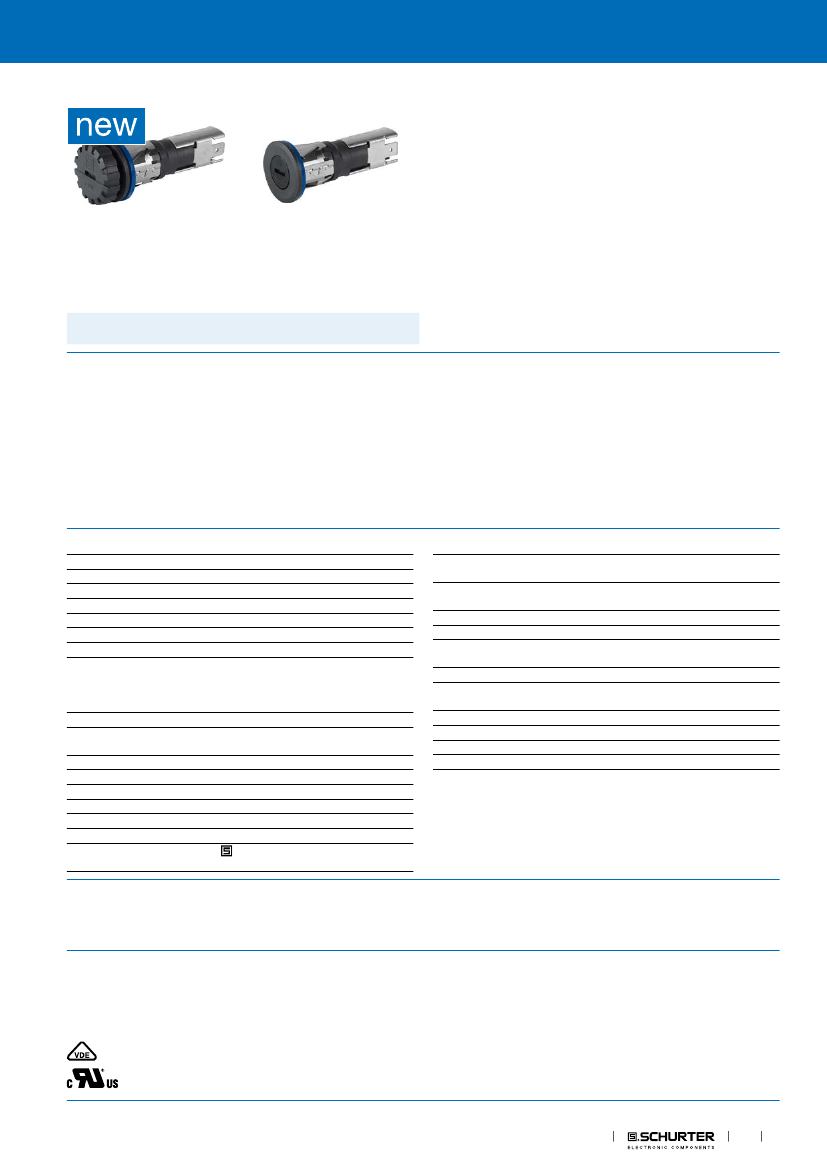

Fuse holder
https://www.schurter.com /PG02
FUS
Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slotted Cap / Fingergrip
Shock-Safe Fuseholder
Socket with Fingergrip Cap
Shock-Safe Fuseholder
Socket with Slotted Cap
500 VAC · 4 W / 16 A (VDE) · 600 VAC/VDC · 32 A (UL/CSA)
Description
-
-
-
-
See below:
Approvals and Compliances
Applications
Weblinks
- Equipment with three-phase supply (400 VAC)
- Applications with rated current up to 16 A (VDE)
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Accessories, Detailed request for
product, Microsite
Fuseholder for 600 VAC applications
Fuseholder with high rated power acceptance
Screw type fuse carrier
Safety of electrical appliances for household and similar purposes.
Meets the requirements for appliances in unattended use. This inclu-
des the enhanced requirements of glow wire tests acc. to IEC 60695-
2-12 and -13.
Unique Selling Proposition
- Fuseholder for high performance applications
- High protection class IP67
- Easy, fast snap-in mounting
Technical Data
PC2
5 x 20 or 6.3 x 32 mm
Panel mount, Front Side
Snap-in
Solder or Quick-Connect 6.3 x 0.8 mm
500 VAC (VDE), 600 VAC/VDC (UL/CSA)
16 A (VDE), 32 A (UL/CSA)
4 W / 16 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection
IP 67
Protection Class
Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Socket
Thermoplastic, black, UL 94V-0
Material: Terminals
Tin-Plated Copper
Unit Weight
36.1 g / 39.4 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Rated Voltage, Power Rating,
Rated current, Certification marks
Shock-Safe Category
Fuse-Link
Mounting
Attachment
Terminal
Rated Voltage
Rated current
Rated Power Acceptance IEC
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Resistance to Vibration
Panel Thickness
Iron
Soldering Profile
350 °C / 3 sec acc. to IEC 60068-2-20,
Test Ta, method 2
350 °C / 10 sec acc. to IEC 60068-2-20
10 mΩ at 20 mV acc. to IEC 60127-6
> 3 kV between life parts
(50 Hz: 1 min)
> 4 kV between life parts
10 MΩ between life parts
(500 VDC: 1 min)
III acc. to IEC 60664-1
3 acc. to IEC 60664-1
acc. to IEC 60068-2-6, test Fc
1.0 - 3.0 mm

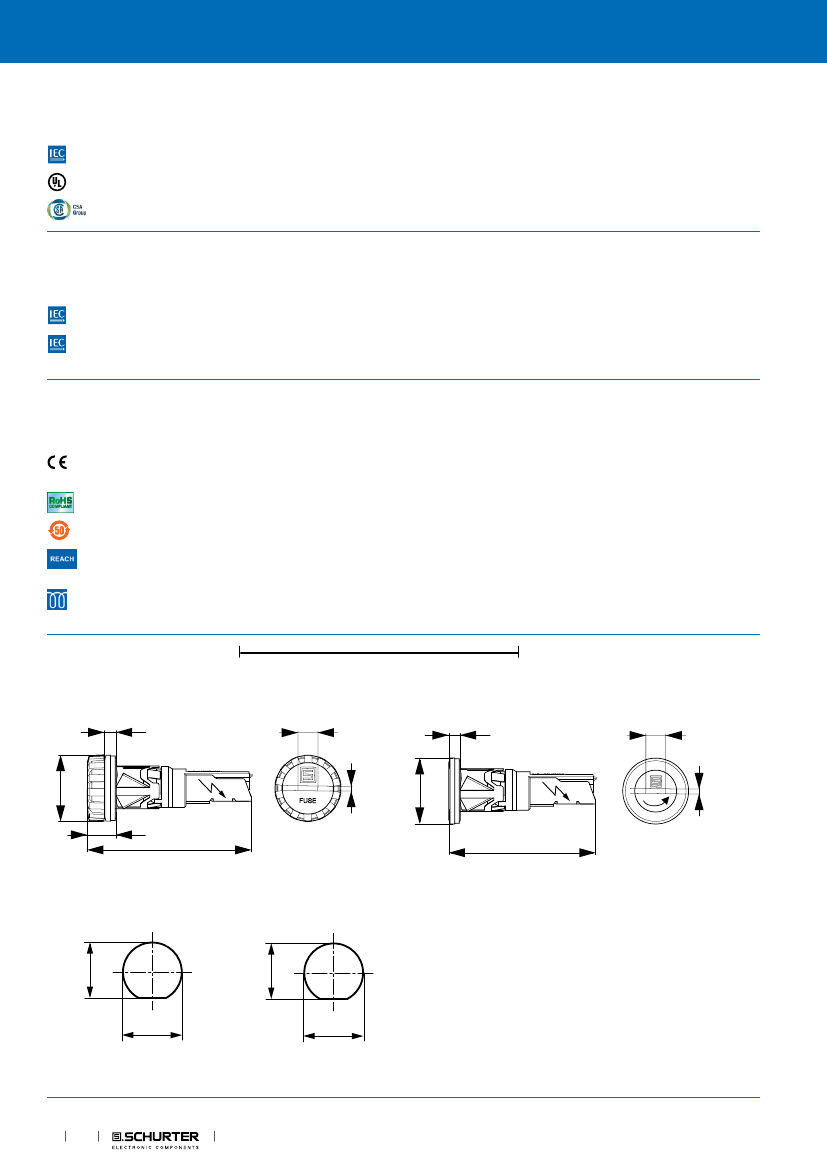

Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FUS
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
VDE Certificate Number: 40044384
UL File Number: E39328
Fuses
1

31.9158 Related Products

31.9158 31.916 31.9156 31.9157 31.9163 31.9159 31.9162 31.9161
Description FUS, SHOCK-SAFE FUSEHOLDER, IP67 FUS, SHOCK-SAFE FUSEHOLDER, IP67 FUS, SHOCK-SAFE FUSEHOLDER, IP67 FUS, SHOCK-SAFE FUSEHOLDER, IP67 FUS, SHOCK-SAFE FUSEHOLDER, IP67 FUS, SHOCK-SAFE FUSEHOLDER, IP67 FUS, SHOCK-SAFE FUSEHOLDER, IP67 FUS, SHOCK-SAFE FUSEHOLDER, IP67
Fuse holder type Support Support Support Support Support Support Support Support
Fuse type box box box box box box box box
Fuse size 5mm x 20mm 5mm x 20mm 5mm x 20mm 6.3mm x 32mm 6.3mm x 32mm 6.3mm x 32mm 5mm x 20mm 6.3mm x 32mm
Number of circuits 1 1 1 1 1 1 1 1
Voltage 600V 600V 600V 600V 600V 600V 600V 600V
Rated current 32A 32A 32A 32A 32A 32A 32A 32A
Installation type Panel mounting Panel mounting Panel mounting Panel mounting Panel mounting Panel mounting Panel mounting Panel mounting
towards vertical vertical vertical vertical vertical vertical vertical vertical
Terminal type Quick Connect - 0.250" (6.3mm) welding Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) welding Quick Connect - 0.250" (6.3mm) welding welding
Contact material copper copper copper copper copper copper copper copper
Contact plating tin tin tin tin tin tin tin tin
