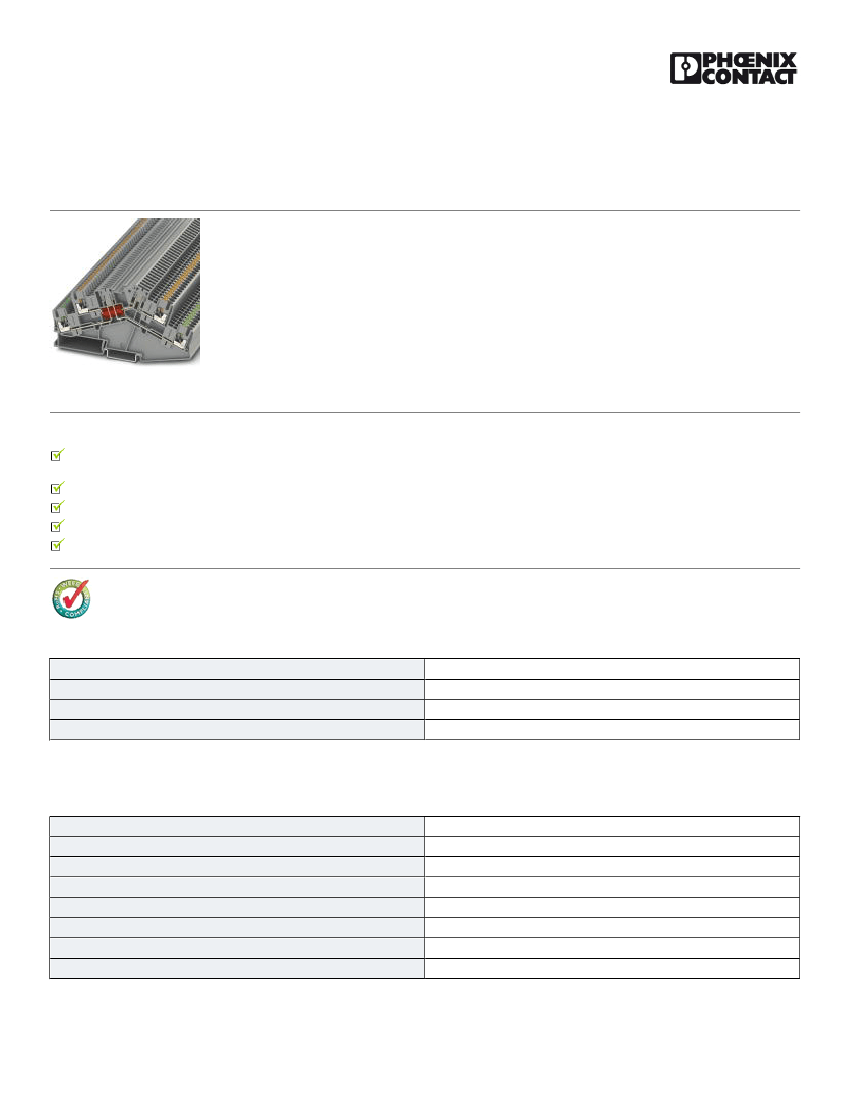

Disconnect terminal block - PTTBS 2,5-TGB/MTB - 3210406
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Disconnect terminal block, Double level with angled contour, one disconnect knife, and one disconnect point,
Connection type: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Nominal current: 16 A,
Nominal voltage: 400 V, Length: 127.5 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
The figure shows version without
disconnect knife
Product Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Convenient separation of circuits, thanks to lever-type disconnect knife
Clear identification of the disconnect point, thanks to color highlighting
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
50 pc
85369010
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Pollution degree
2
4
2.5 mm²
gray
PA
V0
6 kV
3
10/20/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/3210406
Disconnect terminal block - PTTBS 2,5-TGB/MTB - 3210406
Technical data
General
Overvoltage category
Insulating material group
Ambient temperature (operation)
Connection in acc. with standard
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
III
I
-60 °C ... 130 °C
IEC 60947-7-1
16 A (with 4 mm² conductor cross section)
16 A
400 V
ja
Dimensions
Width
Length
Height
Height NS 35/7,5
Height NS 35/15
5.2 mm
127.5 mm
63.10 mm
64.3 mm
71.8 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Push-in connection
IEC 60947-7-1
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Internal cylindrical gage
26
12
10 mm
A3
10/20/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/3210406
Disconnect terminal block - PTTBS 2,5-TGB/MTB - 3210406
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
27141126
27141120
ETIM
ETIM 5.0
EC000897
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-12
16 A
300 V
B
26-12
16 A
300 V
C
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-12
16 A
300 V
B
26-12
16 A
300 V
C
10/20/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/3210406
Disconnect terminal block - PTTBS 2,5-TGB/MTB - 3210406
Approvals
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
10 A
300 V
C
26-12
10 A
300 V
cULus Recognized
Drawings
Circuit diagram
