60W Constant Current Mode LED Driver
H B G - 6 0
series
110
SELV
05
■
Features
Constant Current mode output
■
Applications
LED bay lighting
LED stage lighting
LED spot lighting
LED down lighting
Circular
plastic housing with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty
■
Description

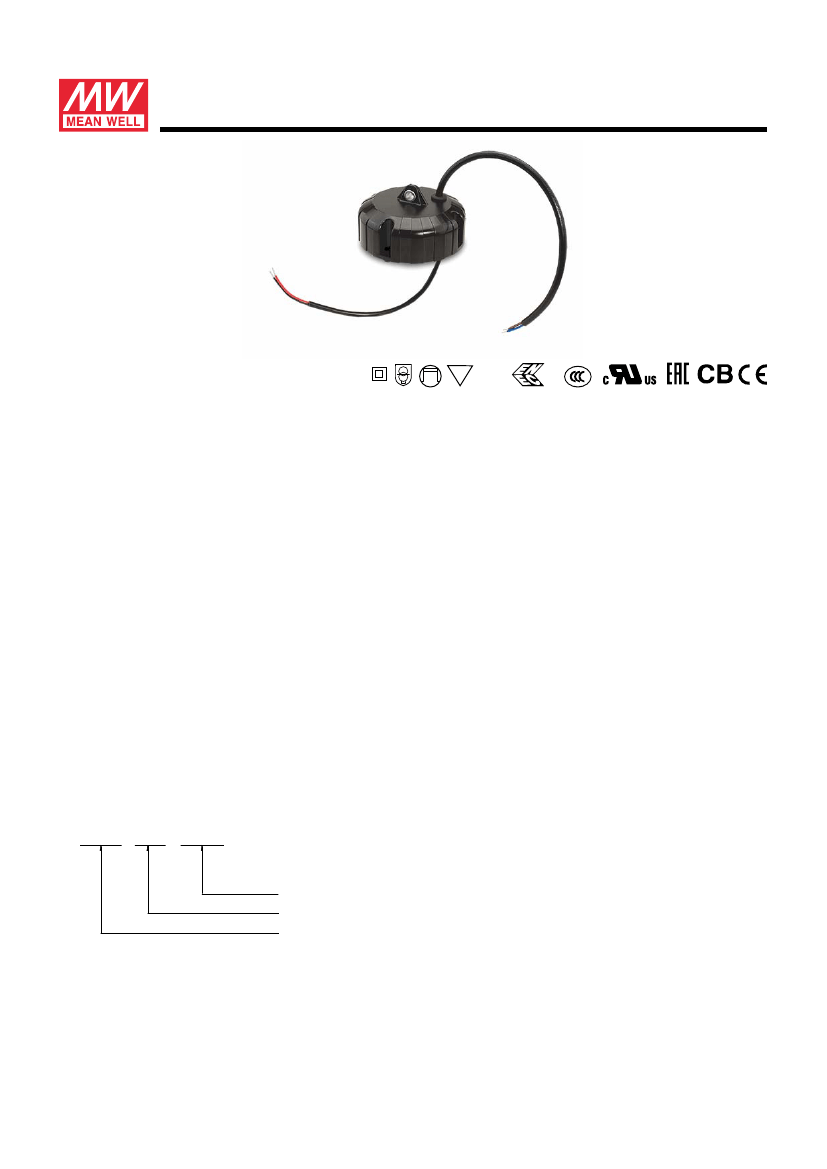

HBG-60 series is a 60W AC/DC LED driver featuring the circular shape design with the plastic
enclosure. It operates from 90~295VAC and offers the constant current output models with
different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%,
with the fanless design, the entire series is able to operate for -40
℃
~ +85
℃
case temperature
under free air convection.
■
Model Encoding
HBG - 60 - 1050
Rated output
current(1050mA/1400mA/2100mA)
Rated
wattage
Series name
File Name:HBG-60-SPEC 2018-09-30
60W Constant Current Mode LED Driver
SPECIFICATION
MODEL
H B G - 6 0
series
HBG-60-2100
2100mA
60.9W
19 ~ 29V
35V
1360mA ~ 2100mA
HBG-60-1050
RATED CURRENT
RATED POWER
CONSTANT CURRENT REGION
Note.2
1050mA
57.75W
37 ~ 55V
60V
680 ~ 1050mA
20% max. @rated current
±5.0%
HBG-60-1400
1400mA
60.2W
28 ~ 43V
50V
910 ~ 1400mA
OUTPUT
OPEN CIRCUIT VOLTAGE(max.)
CURRENT ADJ. RANGE
CURRENT RIPPLE
CURRENT TOLERANCE
SET UP TIME
Note.4
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR
INPUT
500ms / 230VAC 1200ms / 115VAC
90 ~ 295VAC
127 ~ 417VDC
Note.3
(Please refer to "STATIC CHARACTERISTIC" section)
47 ~ 63Hz
PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 20%(@load
≧
65%/115VC,230VAC; @load
≧
75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
90%
0.7A/115VAC
0.4A/230VAC
89%
0.3A/277VAC
89%
TOTAL HARMONIC DISTORTION
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER CURRENT
OVER TEMPERATURE
COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC
;
Per NEMA 410
28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
<0.75mA / 277VAC
PROTECTION
Hiccup mode, recovers automatically after fault condition is removed
Shut down o/p voltage, re-power on to recover
Tcase=-40 ~ +85
℃
(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Tcase=+85℃
20 ~ 95% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 60
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1
,EN61347-2-13
independent, E N 62384; GB19510.14, GB19510.1, EAC TP TC 004 approved
I/P-O/P:3.75KVAC
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55015, GB17743, GB17625.1, EN61000-3-2 Class C (@load≧65%) ; EN61000-3-3, EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level( surge immunity:Line-Line:2KV ), EAC TP TC 020
1504.1K hrs min. Telcordia SR-332 (Bellcore) ; 452Khrs min.
ψ110mm
* 60.5mm (D * H)
0.5Kg; 20pcs/ 11Kg/ 0.94CUFT
MIL-HDBK-217F (25
℃
)
WORKING TEMP.
MAX. CASE TEMP.
WORKING HUMIDITY
ENVIRONMENT
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY &
EMC
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
Note.
8
EMC IMMUNITY
MTBF
OTHERS
NOTE
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25
℃
of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3.
De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected
by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6.To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently
connected to the mains.
7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80
℃
or less.
8. Please refer to the warranty statement on MEAN WELL's website at
http://www.meanwell.com
9. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft)
10. For any application note and IP water proof function installation caution, please refer our user manual before using.
https://www.meanwell.com/Upload/PDF/LED_EN.pdf.
File Name:HBG-60-SPEC 2018-09-30
60W Constant Current Mode LED Driver
H B G - 6 0
series

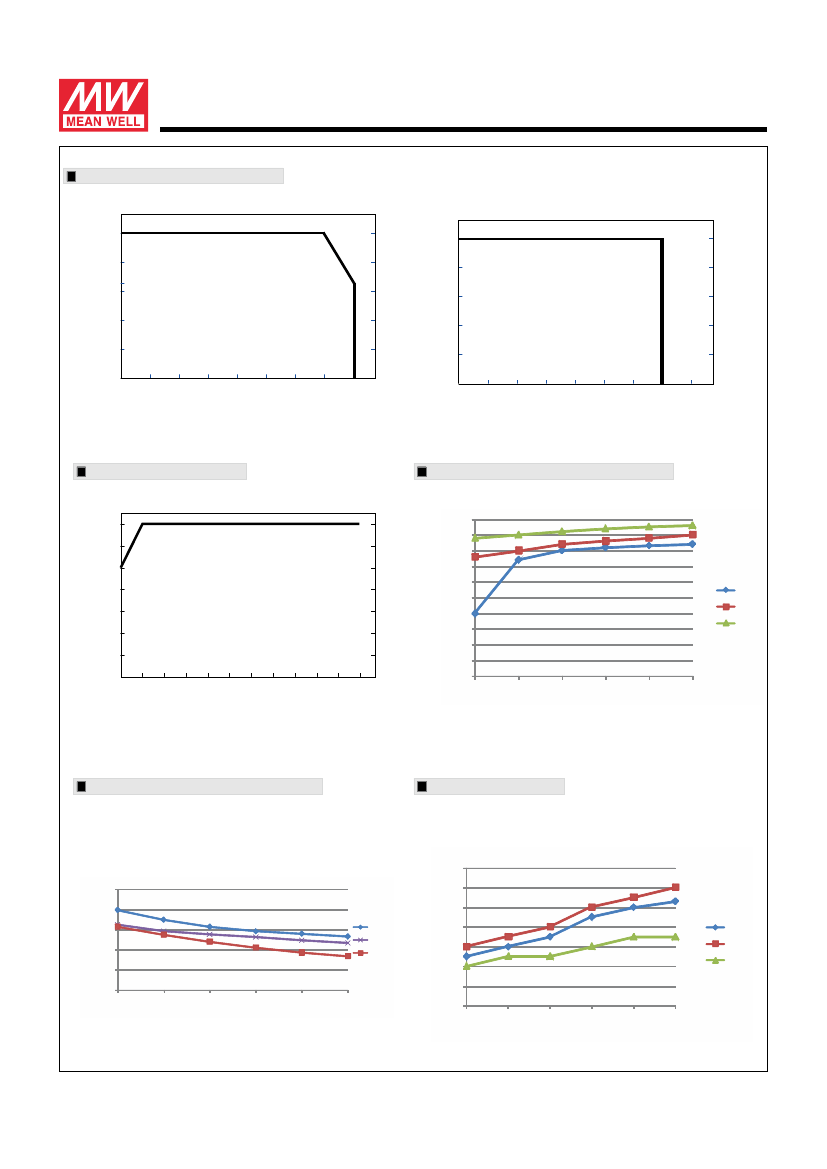

OUTPUT LOAD vs TEMPERATURE
100
100
80
65
60
80
60
LOAD (%)
40
LOAD (%)
-30
-25
0
15
30
50
60
70
(HORIZONTAL)
40
20
20
-40
-40
-20
0
10
30
50
70
85
90 (HORIZONTAL)
AMBIENT TEMPERATURE,Ta (
℃
)
Tcase (
℃
)
STATIC CHARACTERISTIC
POWER FACTOR (PF) CHARACTERISTIC
※
Tcase at 75℃
1
0.95
0.9
0.85
0.8
0.75
0.7
0.65
0.6
0.55
0.5
277V
230V
115V
100
90
80
70
LOAD (%)
60
50
40
90
100
125
135
145
155 165
175
180
200
230
295
PF
50%
60%
70%
80%
90%
100%
(60W)
INPUT VOLTAGE (V) 60Hz
LOAD
※
De-rating is needed under low input voltage.
TOTAL HARMONIC DISTORTION (THD)
※
1050mA Model, Tcase at 75℃
EFFICIENCY vs LOAD
HBG-60 series possess superior working efficiency that up to 90% can
be reached in field applications.
※
1050mA Model, Tcase at 75℃
91
25%
90
EFFICIENCY(%)
20%
15%
10%
5%
0%
50%
60%
70%
80%
90%
100%
277VAC
230VAC
115VAC
89
88
87
86
85
84
50%
60%
70%
80%
90%
100%
277V
230V
115V
THD
LOAD
LOAD
File Name:HBG-60-SPEC 2018-09-30
