3210630002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3210630002

3210630002: DescriptionELECTRIC FUSE, 0.63A, 250VAC, 80A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size69KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

3210630002 Overview

ELECTRIC FUSE, 0.63A, 250VAC, 80A (IR), INLINE/HOLDER

3210630002 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	MEDIUM
body height	25 mm
Body length or diameter	5.2 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	2 J
Installation features	INLINE/HOLDER
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	BULK
physical size	5.2mm x 25mm
Pre-discharge time - minutes	5 ms
Rated breaking capacity	80 A
Rated current	0.63 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	DIN 41577
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

INIATURE

USES

5x25mm/

5x25mm No. 321

Indicator,

Indicator, 250V

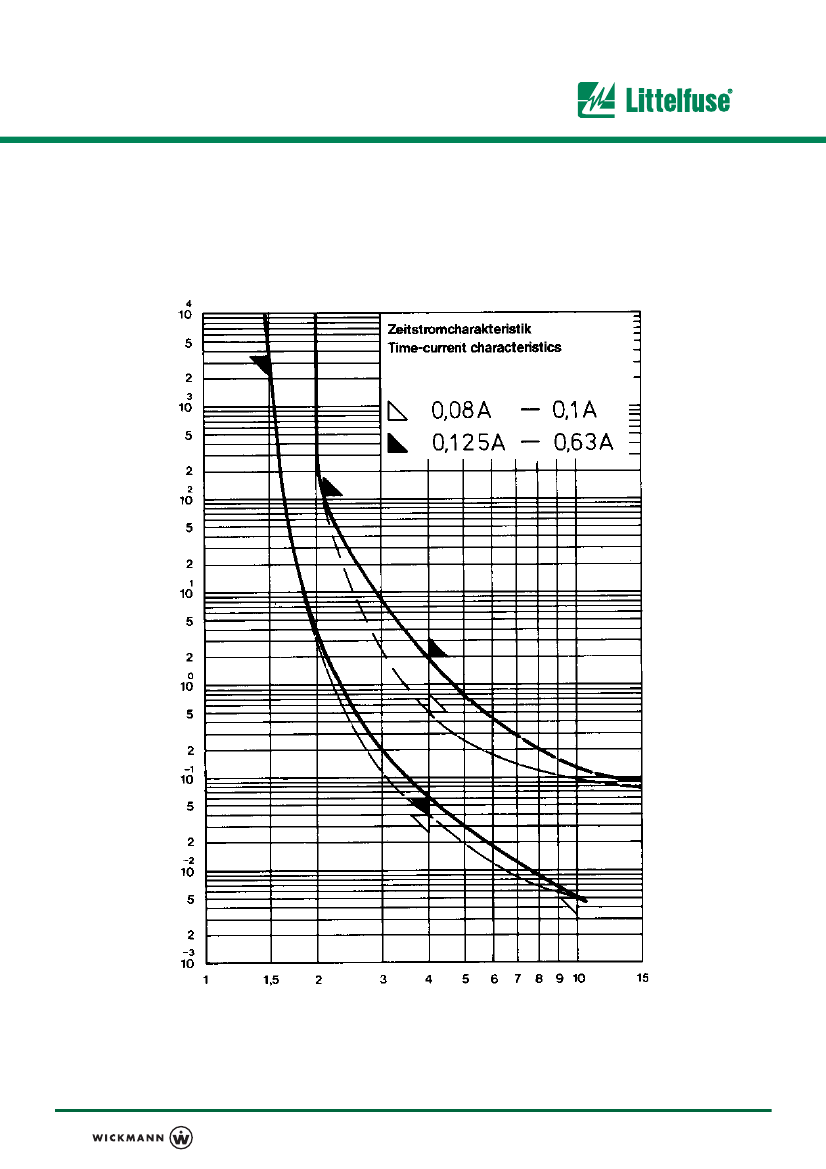

Time-Current

Standard

Mitteträge (M)

DIN 41577, T.2

None

Specifications

Packaging

002: Pack (100 pcs.)

Characteristic

Materials

Approvals

Tube:

End Caps:

Ceramic

Nickel-plated brass

Temperature

Operating Temperature

Climatic Category

Stock Conditions

-25ºC to +70ºC (consider de-rating)

-25ºC/+70ºC/21 days (EN 60068-1..3)

+10ºC to +60ºC

relative humidity

≤

75% yearly average,

without dew

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60Hz at 0.75mm amplitude

60 - 2000Hz at 10g acceleration

, M, Current Rating, 250V, C

Dimensions

Ø5,2

+0,1

- 0,2

Vibration Resistance

±0,5

Kappe mit Kennmelder

cap with indicator

Marking

Limits for Pre-arcing Time

Rated Current

80mA ... 100mA

125 mA ... 630 mA

1.5 x I

Rated

>1h

2.1 x I

Rated

2.75 x I

Rated

<2min

4 x I

Rated

40ms ... 500ms

60ms ... 2s

10 x I

Rated

> 5ms

80%

Permissible continuous operating current is

≤

80% at ambient temperature of 23ºC (73.4ºF).

Rated

Amp

Voltage

Breaking Voltage Drop Power Dissipation Melting Integral

Current

Code

Rating

Capacity

1.0 x I

Rated

1.5 x I

Rated

10 x I

Rated

max. (mV)

max. (W)

min. (A

80mA

100mA

125mA

160mA

200mA

250mA

315mA

400mA

500mA

630mA

color of indicator

0080

0100

0125

0160

0200

0250

0315

0400

0500

0630

250V1

250V

80A @ 250 V AC

50Hz

cos

= 1.0

520

500

480

400

500

470

400

380

on request

0.015

0.030

0.053

0.11

0.23

0.38

0.53

0.75

1.5

2.3

grey

red

velvet

orange

blue

yellow

black

brown

white

green

operating voltage

≥

10 V

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

012006

Qty.

Order-

Number

Series

321

Amp Code

Packaging

Specifications are subject

to change without notice

www.littelfuse.com

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

3210630002 Related Products

	3210630002	3210080002	3210100002	3210125002	3210160002	3210400002	3210200002	3210500002	3210315002	3210250002
Description	ELECTRIC FUSE, 0.63A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.08A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.1A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.125A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.16A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.4A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.2A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.5A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.315A, 250VAC, 80A (IR), INLINE/HOLDER	ELECTRIC FUSE, 0.25A, 250VAC, 80A (IR), INLINE/HOLDER
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	MEDIUM	MEDIUM	MEDIUM	MEDIUM	MEDIUM	MEDIUM	MEDIUM	MEDIUM	MEDIUM	MEDIUM
body height	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm
Body length or diameter	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Built-in features	INDICATOR	INDICATOR	INDICATOR	INDICATOR	INDICATOR	INDICATOR	INDICATOR	INDICATOR	INDICATOR	INDICATOR
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
physical size	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm	5.2mm x 25mm
Pre-discharge time - minutes	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms
Rated breaking capacity	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A
Rated current	0.63 A	0.08 A	0.1 A	0.125 A	0.16 A	0.4 A	0.2 A	0.5 A	0.315 A	0.25 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	DIN 41577	DIN 41577	DIN 41577	DIN 41577	DIN 41577	DIN 41577	DIN 41577	DIN 41577	DIN 41577	DIN 41577
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Base Number Matches	1	1	1	1	1	1	1	1	1	1
