Part Number

Search

5500807

Description
LED 5MM 5V RT ANGLE YELLOW PCMNT
CategoryLED optoelectronic/LED
File Size98KB,1 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric View All

5500807 Overview

LED 5MM 5V RT ANGLE YELLOW PCMNT

5500807 Parametric

Parameter NameAttribute value
coloryellow
Wavelength - Peak583nm
Configurationsingle
current10mA
millicandela level8mcd
perspective60°
Lens typescattering
Lens style/sizeRound, domed, 5mm (T-1 3/4)
Rated voltage5V
Installation typeThrough hole, right angle

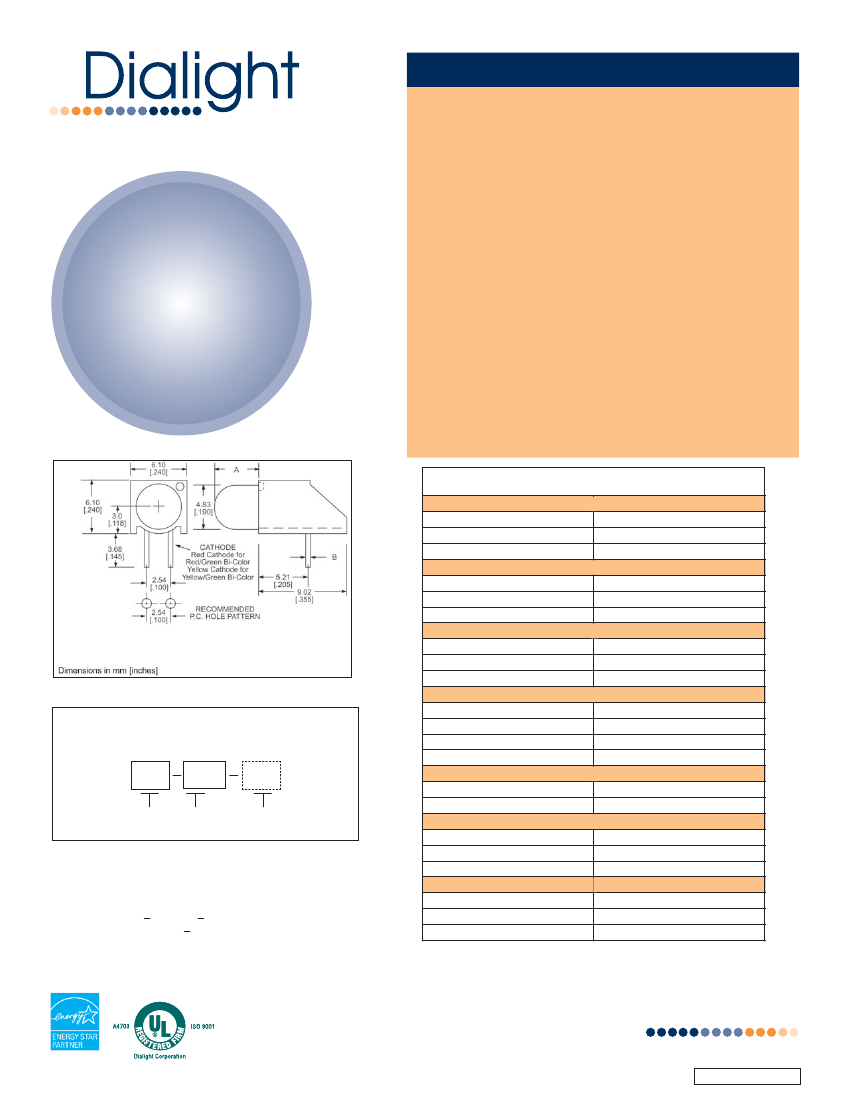

FEATURES / BENEFITS
Multiple CBIs form horizontal LED arrays on
6.35mm (0.250”) center-lines.
High contrast, UL 94 V-0 rated, black housing
Oxygen index: 32%
Polymer content: PBT, 0.206 g
Housing stand-offs facilitate PCB cleaning
Solderability per MIL-STD-202F, method 208F
LEDs are safe for direct viewing per IEC 825-1,
EN-60825-1
550 SERIES
5mm LED CBI
®
Circuit Board Indicator
Sloped Back Housing with
Standoffs
Compatible with: 550-xx07 Dual Block and
550-xx07-004 Quad Block
PART NUMBER
GENERAL PURPOSE
550-0207
550-0307
550-0407
INTEGRAL RESISTOR
550-0507
550-0707
550-0807
Dimension A: 3.43 [.135] for -0207 to -0407, 4.83 [.190] for all others
Dimension B: .635 [.025] for -0507 to -0707, .508 [.020] for all others
Hole Diameter: 1.22 [.48] for .635 [.025] leads, 1.02 [.040] for all others
COLOR
Green
Yellow
Red
Red, 5V
Green, 5V
Yellow, 5V
Red
Yellow
Green
Green
Yellow
Red
Orange
Red/Green
Yellow/Green
Red
Green
Yellow
Red
Green
Yellow
LOW CURRENT
550-1107
550-1207
550-1307
HIGH EFFICIENCY
550-2207
550-2307
550-2407
550-2507
Standard Polarity shown in drawing: Cathode right
PART NUMBER ORDERING CODE
550
Series
xx07
LED Type
010
Reverse Polarity Option
1) Cathode Left
BI-COLOR
550-3007
550-3107
SUPER BRIGHT, DIFFUSED
550-5107
550-5207
550-5307
550-5507
550-5607
550-5707
Contact factory for information on
custom color combinations.
TOLERANCE NOTE: As noted, otherwise:
• LED Protrusion: +0.41mm [+0.016]
• CBI Housing: +0.20mm [+0.008]
To order any of the 550-xx07 part numbers with Reverse Polarity
(Cathode Left), please add -010 to the part numbers shown above.
SUPER BRIGHT, WATER CLEAR (Non-tinted, Non-diffused)
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
a Roxboro Group Company
MDEA550X001_A
