VSD3913

Description
DIODE GEN PURP 400V 30A DO203AB
Categorysemiconductor    Discrete semiconductor
File Size97KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

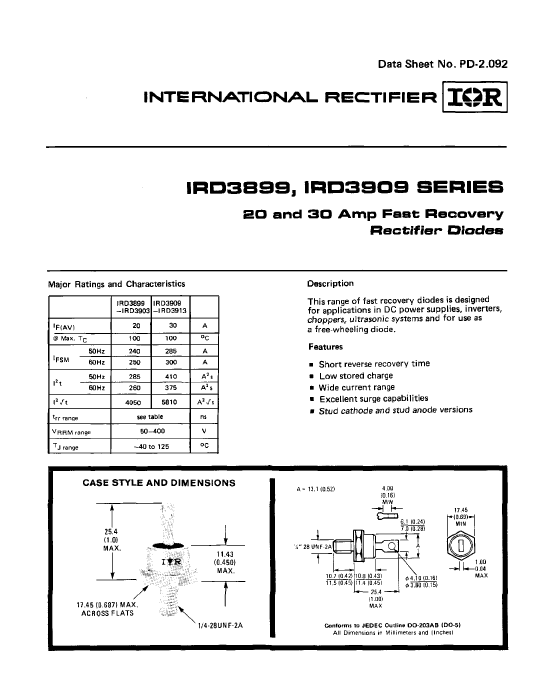

VSD3913 Overview

DIODE GEN PURP 400V 30A DO203AB

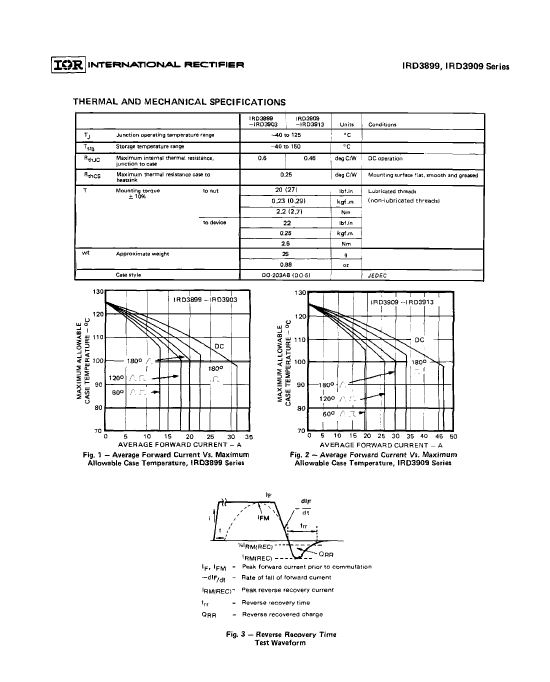

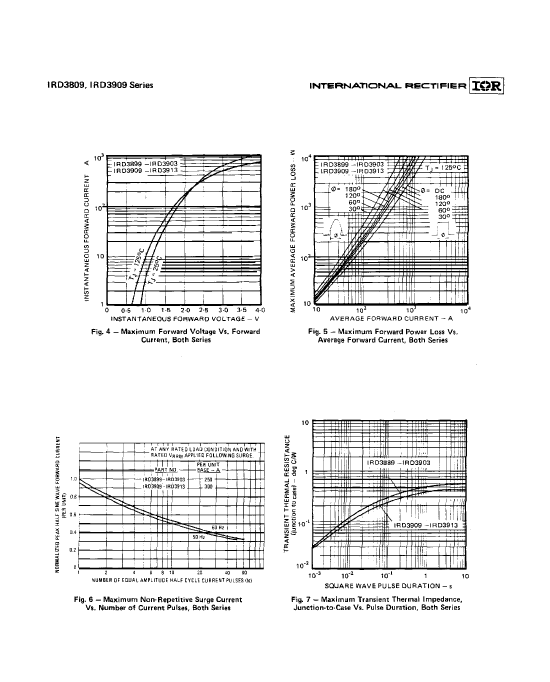

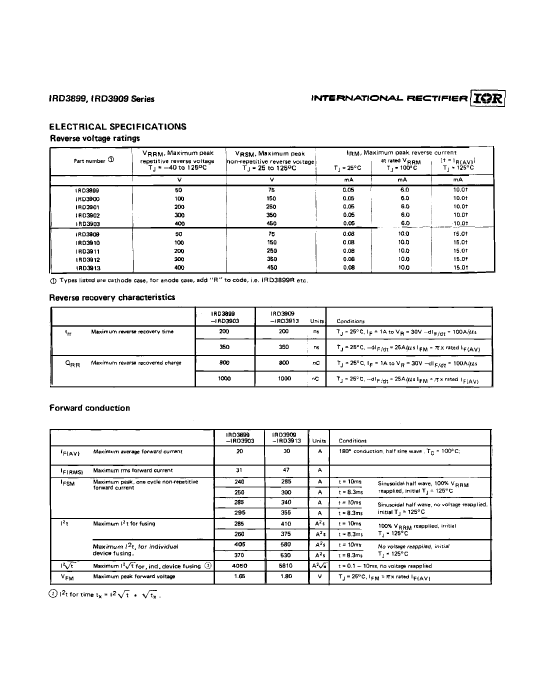

VSD3913 Parametric

Parameter NameAttribute value
Diode typestandard
Voltage - DC Reverse (Vr) (Maximum)400V
Current - average rectification (Io)30A
speedStandard recovery >500ns, >200mA (Io)
Capacitance at different Vr, F-
Installation typeBase, terminal installation
Package/casingDO-203AB, DO-5, binding posts
Supplier device packagingDO-203AB

VSD3913 Related Products

VSD3913 IRD3910 IRD3909 IRD3909R
Description DIODE GEN PURP 400V 30A DO203AB Rectifiers 100 Volt 30 Amp DIODE GEN PURP 50V 30A DO203AB DIODE GEN PURP 50V 30A DO203AB
Diode type standard RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Is it lead-free? - Contains lead Contains lead Contains lead
Is it Rohs certified? - incompatible incompatible incompatible
Parts packaging code - DO-5 DO-5 DO-5
package instruction - DO-5, 1 PIN DO-5, 1 PIN DO-5, 1 PIN
Contacts - 1 1 1
Reach Compliance Code - compliant compliant compliant
Other features - FREEWHEELING DIODE FREEWHEELING DIODE FREEWHEELING DIODE
application - FAST RECOVERY FAST RECOVERY FAST RECOVERY
Shell connection - CATHODE CATHODE ANODE
Configuration - SINGLE SINGLE SINGLE
Diode component materials - SILICON SILICON SILICON
Maximum forward voltage (VF) - 1.8 V 1.8 V 1.8 V
JEDEC-95 code - DO-203AB DO-203AB DO-203AB
JESD-30 code - O-MUPM-D1 O-MUPM-D1 O-MUPM-D1
Maximum non-repetitive peak forward current - 300 A 300 A 300 A
Number of components - 1 1 1
Phase - 1 1 1
Number of terminals - 1 1 1
Maximum operating temperature - 125 °C 125 °C 125 °C
Minimum operating temperature - -40 °C -40 °C -40 °C
Maximum output current - 30 A 30 A 30 A
Package body material - METAL METAL METAL
Package shape - ROUND ROUND ROUND
Package form - POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT
Peak Reflow Temperature (Celsius) - 225 NOT SPECIFIED NOT SPECIFIED
Certification status - Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage - 100 V 50 V 50 V
Maximum reverse recovery time - 0.36 µs 0.36 µs 0.36 µs
surface mount - NO NO NO
Terminal form - SOLDER LUG SOLDER LUG SOLDER LUG
Terminal location - UPPER UPPER UPPER
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Base Number Matches - 1 1 1
