I2124 rev. B 10/99
QUIET
IR
Series
8EWF..S
SURFACE MOUNTABLE
FAST SOFT RECOVERY
DIODE
V
F
t
rr
< 1.2V @ 8A
= 55ns
V
RRM
200 to 600V
Description/Features
The 8EWF..S fast soft recovery
QUIET
IR
rectifier
series has been optimized for combined short
reverse recovery time, low forward voltage drop
and low leakage current
The glass passivation ensures stable reliable
operation in the most severe temperature and
power cycling conditions.
Typical applications are both:
Output rectification and freewheeling diode
in inverters, choppers and converters.
Input rectifications where severe
restrictions on conducted EMI should be met.
Major Ratings and Characteristics
Characteristics
I
F(AV)
Sinusoidal waveform
V
RRM
I
FSM
V
F
t
rr
T
J
@ 8 A, T
J
= 25°C
@ 1A, 100A/µs
Package Outline
Units
A
V
A
V
ns
°C
8EWF..S
8
200 to 600
170
1.2
55
- 40 to 150
TO-252AA (D-Pak)
Document Number: 93160
www.vishay.com
1
QUIET
8EWF..S
I2124 rev. B 10/99
IR
Series
Voltage Ratings
Part Number
V
RRM
, maximum
peak reverse voltage
V
8EWF02S
8EWF04S
8EWF06S
200
400
600
V
RSM
, maximum non repetitive
peak reverse voltage
V
300
500
700
I
RRM
150°C
mA
3
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
I
FSM
I
2
t
I
√t
2
8EWF..S
8
170
200
140
200
Units
A
A
A
2
s
A
√s
2
Conditions
@ T
C
= 96° C, 180° conduction half sine wave
10ms Sine pulse, rated V
RRM
applied
10ms Sine pulse, no voltage reapplied
10ms Sine pulse, rated V
RRM
applied
10ms Sine pulse, no voltage reapplied
t = 0.1 to 10ms, no voltage reapplied
Max. Peak One Cycle Non-Repetitive
Surge Current
Max. I
2
t for fusing
Max. I
√t
for fusing
2
2000
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
r
t
Forward slope resistance
8EWF..S
1.2
16
1.13
0.1
3
Units
V
mΩ
V
mA
Conditions
@ 8A, T
J
= 25°C
T
J
= 150°C
T
J
= 25 °C
T
J
= 150 °C
V
F(TO)
Threshold voltage
I
RM
Max. Reverse Leakage Current
V
R
= rated V
RRM
Typical Reverse Recovery Characteristics
Parameters
t
rr
I
rr
Q
rr
S
Reverse Recovery Time
Reverse Recovery Current
Reverse Recovery Charge
Snap Factor
tb/ta
8EWF..S
140
2.6
0.25
0.5
Units
ns
A
µC
-
Conditions
I
F
@ 8Apk
@ 25A/µs
@ T
J
= 25°C
di
dt
I
rr
I
FM
t
rr
ta
tb
Q
rr
t
Document Number: 93160
www.vishay.com
2
QUIET
8EWF..S
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
Soldering Temperature
R
thJC
Max. Thermal Resistance Junction
to Case
R
thJA
Typ. Thermal Resistance Junction
to Ambient (PCB Mount)**
wt
Approximate Weight
Case Style
2
IR
Series
I2124 rev. B 10/99
8EWF..S
- 40 to 150
- 40 to 150
240
2.5
50
1(0.03)
Units
°C
°C
°C
°C/W
°C/W
g (oz.)
Conditions
for 10 seconds
DCoperation
TO-252AA (D-Pak)
**When mounted on 1" square (650mm ) PCB of FR-4 or G-10 material 4 oz (140µm) copper 40°C/W
For recommended footprint and soldering techniques refer to application note #AN-994
Maximum Allowable Case Temperature (°C)
140
130
120
110
100
90
80
70
60
0
1
2
3
30°
8EWF..S Series
R
thJC
(DC) = 2.5 °C/W
Maximum Allowable Case Temperature (°C)
150
150
140
130
120
110
100
90
80
70
0
2
4
6
8
10
12
14
Average Forward Current (A)
Conduction Period
8EWF..S Series
R
thJC
(DC) = 2.5 °C/W
Conduction Angle
30°
60°
90°
120°
180°
60°
90°
120°
180°
DC
4
5
6
7
8
9
Average Forward Current (A)

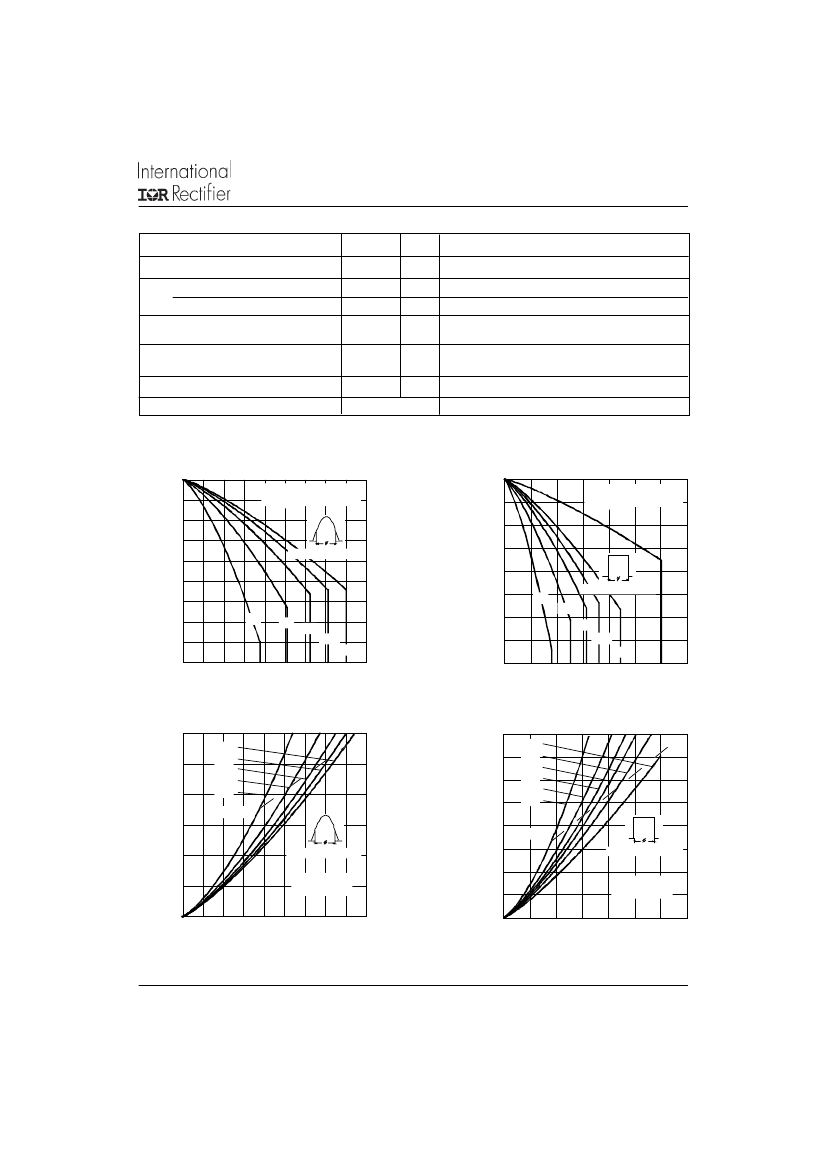

Fig. 1 - Current Rating Characteristics
Maximum Average Forward Power Loss (W)
Maximum Average Forward Power Loss (W)
Fig. 2 - Current Rating Characteristics
16
14
12
10
8
6
4
2
0
0
2
4
6
8
10
12
14
Average Forward Current (A)
8EWF..S Series
T
J
= 150°C
DC
180°
120°
90°
60°
30°
12
10
8
6
4
2
0
0
1
2
3
4
5
6
7
8
9
Average Forward Current (A)
Conduction Angle
180°
120°
90°
60°
30°
RMS Limit
RMS Limit
Conduction Period
8EWF..S Series
T
J
= 150°C
Fig. 3 - Forward Power Loss Characteristics
Fig. 4 - Forward Power Loss Characteristics
Document Number: 93160
www.vishay.com
3
QUIET
8EWF..S
I2124 rev. B 10/99
Peak Half Sine Wave Forward Current (A)
200
175
150
125
100
75
50
1
IR
Series
Peak Half Sine Wave Forward Current (A)
200
180
160
140
120
100
80
60
40
0.01
8EWF..S Series
At Any Rated Load Condition And With
Rated V
RRM
Applied Following Surge.
Initial T
J
= 150°C
@ 60 Hz 0.0083 s
@ 50 Hz 0.0100 s
Maximum Non Repetitive Surge Current
Versus Pulse Train Duration.
Initial T
J
= 150°C
No Voltage Reapplied
Rated V
RRM
Reapplied
8EWF..S Series
10
100
0.1
Pulse Train Duration (s)
1
Number Of Equal Amplitude Half Cycle Current Pulses (N)

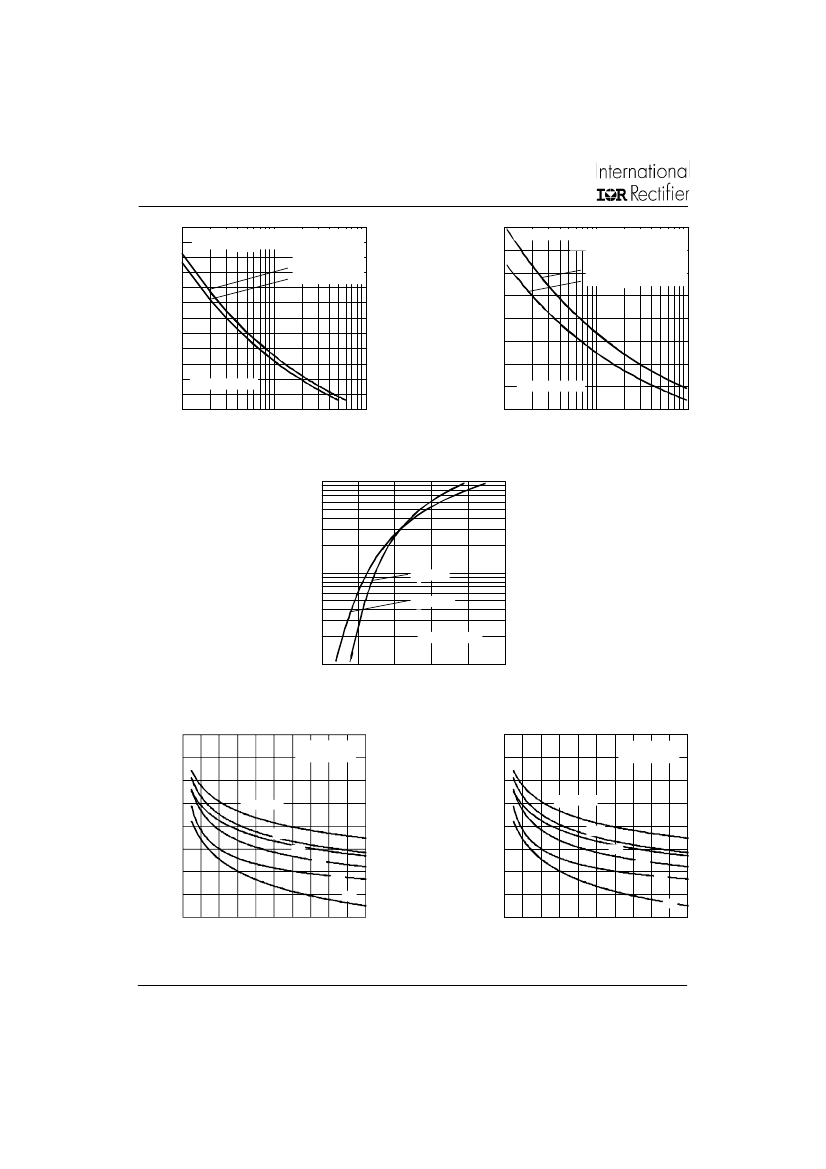

Fig. 5 - Maximum Non-Repetitive Surge Current
100
Instantaneous Forward Current (A)
Fig. 6 - Maximum Non-Repetitive Surge Current
10
T
J
= 25°C
T
J
= 150°C
8EWF..S Series
1
0.5
1
1.5
2
2.5
3
Instantaneous Forward Voltage (V)
Fig. 7 - Forward Voltage Drop Characteristics
8EWF..S Series
T
J
= 25 °C
0.3
I
FM
= 20 A
Maximum Reverse Recovery Time - Trr (µs)
Maximum Reverse Recovery Time - Trr (µs)
0.4
0.4
8EWF..S Series
T
J
= 150 °C
0.3
I
FM
= 20 A
0.2
10 A
8A
5A
0.2
10 A
8A
5A
0.1
2A
1A
0.1
2A
1A
0
0
40
80
120
160
200
Rate Of Fall Of Forward Current - di/dt (A/µs)
0
0
40
80
120
160
200
Rate Of Fall Of Forward Current - di/dt (A/µs)
Fig. 8 - Recovery Time Characteristics, T
J
= 25°C
Fig. 9 - Recovery Time Characteristics, T
J
= 150°C
Document Number: 93160
www.vishay.com
4
QUIET
8EWF..S

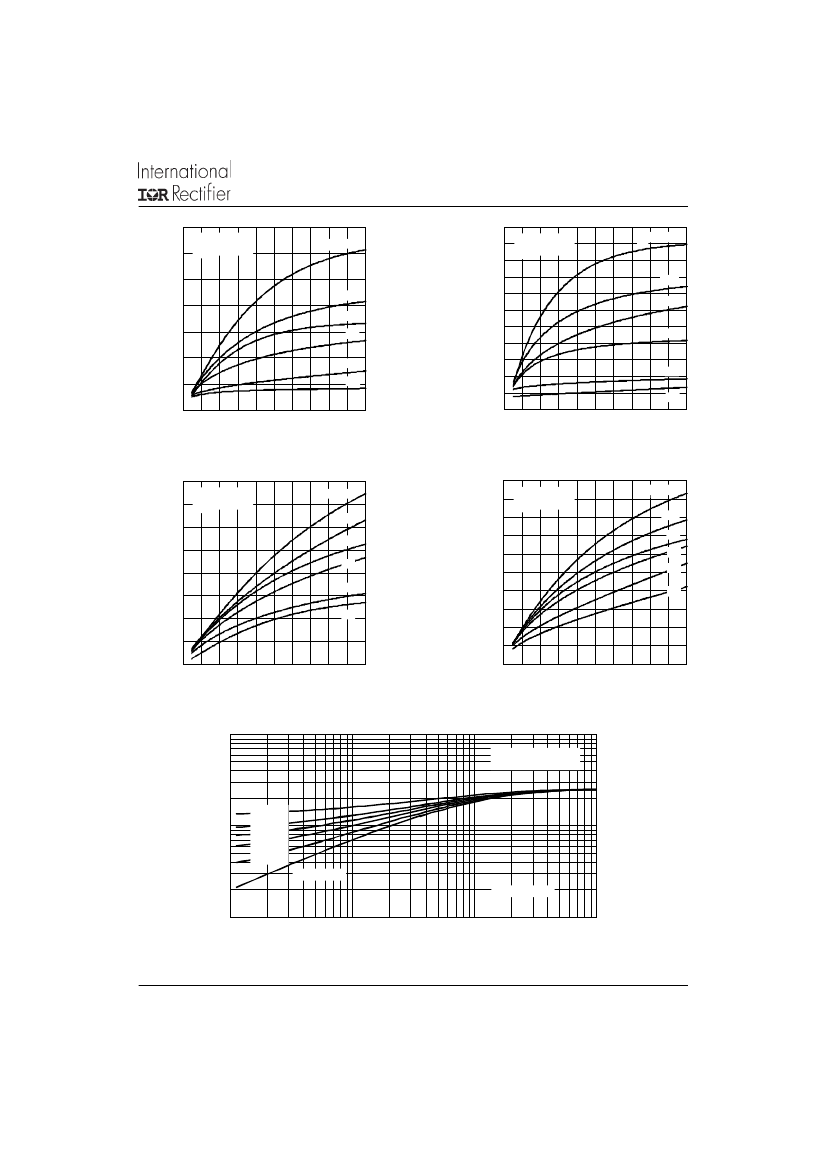

Maximum Reverse Recovery Charge - Qrr (µC)
Maximum Reverse Recovery Charge - Qrr (µC)
IR
Series
I2124 rev. B 10/99
1.4
1.2
1
10 A
2.4
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
40
80
120
160
200
Rate Of Fall Of Forward Current - di/dt (A/µs)
2A
1A
5A
8EWF..S Series
T
J
= 25 °C
I
FM
= 20 A
8EWF..S Series
T
J
= 150 °C
I
FM
= 20 A
10 A
8A
0.8
8A
0.6
0.4
0.2
0
0
40
80
120
160
5A
2A
1A
200
Rate Of Fall Of Forward Current - di/dt (A/µs)
Fig. 10 - Recovery Charge Characteristics, T
J
= 25°C
Maximum Reverse Recovery Current - Irr (A)
16
14
12
8A
Fig. 11 - Recovery Charge Characteristics, T
J
= 150°C
Maximum Reverse Recovery Current - Irr (A)
20
18
16
14
12
10
8
6
4
2
0
0
40
80
120
160
200
Rate Of Fall Of Forward Current - di/dt (A/µs)
8EWF..S Series
T
J
= 150 °C
I
FM
= 20 A
10 A
8A
5A
2A
1A
8EWF..S Series
T
J
= 25 °C
I
FM
= 20 A
10 A
10
8
6
4
2
0
0
40
80
120
160
200
Rate Of Fall Of Forward Current - di/dt (A/µs)
5A
2A
1A
Fig. 12 - Recovery Current Characteristics, T
J
= 25°C
Transient Thermal Impedance Z
thJC
(°C/W)
10
Fig. 13 - Recovery Current Characteristics, T
J
= 150°C
Steady State Value
(DC Operation)
1
D
D
D
D
D
=
=
=
=
=
0.50
0.33
0.25
0.17
0.08
Single Pulse
8EWF..S Series
0.1
0.0001
0.001
0.01
0.1
Square Wave Pulse Duration (s)
Fig. 14 - Thermal Impedance Z
thJC
Characteristics
Document Number: 93160
www.vishay.com
5
