39860-0304 datasheet, PDF - EEWORLD Datasheet

39860-0304: DescriptionTERM BLOCK PLUG 4POS 5.08MM; CategoryThe connector; File Size580KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

39860-0304 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39860-0304	-	-	View	Buy Now

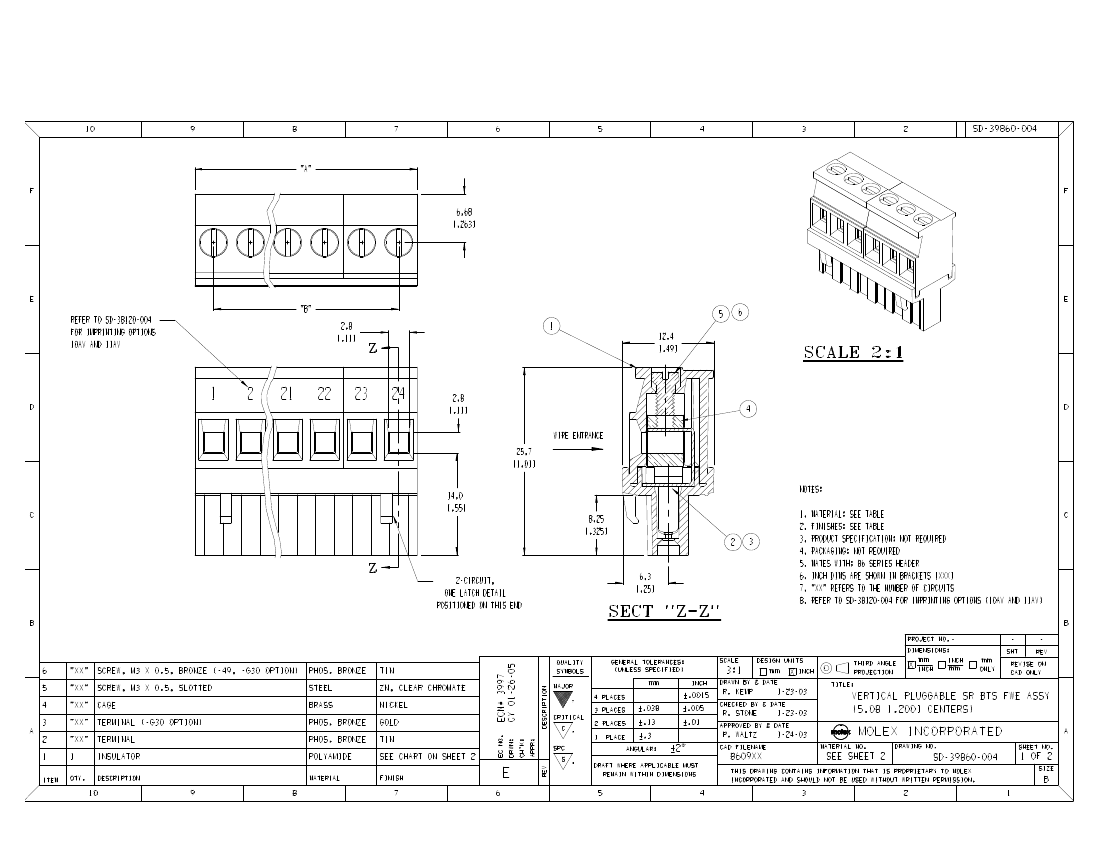

TERM BLOCK PLUG 4POS 5.08MM

Parameter Name	Attribute value
type	plug, female socket
Number of pins	4
Number of pins per level	4
Number of levels	1
spacing	0.200"（5.08mm）
Needle seat direction	-
Plug entrance	90°
Terminal type	Screws - Lift Cage Clamp
Installation type	free hanging
Current - IEC	-
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-26 AWG
Wire gauge or range - mm²	-
color	black
Operating temperature	110°C
Contact mating surface treatment	tin
characteristic	Fixed lock (wire side)
Material flammability rating	-
Intrusion protection	-
Screw size	M3
Torque - Screws	-
Wire stripping length	-
Contact material	Phosphor bronze
Shell material	Polyamide (PA), nylon
Contact tail length	-
Insulation height	1.010"（25.65mm）

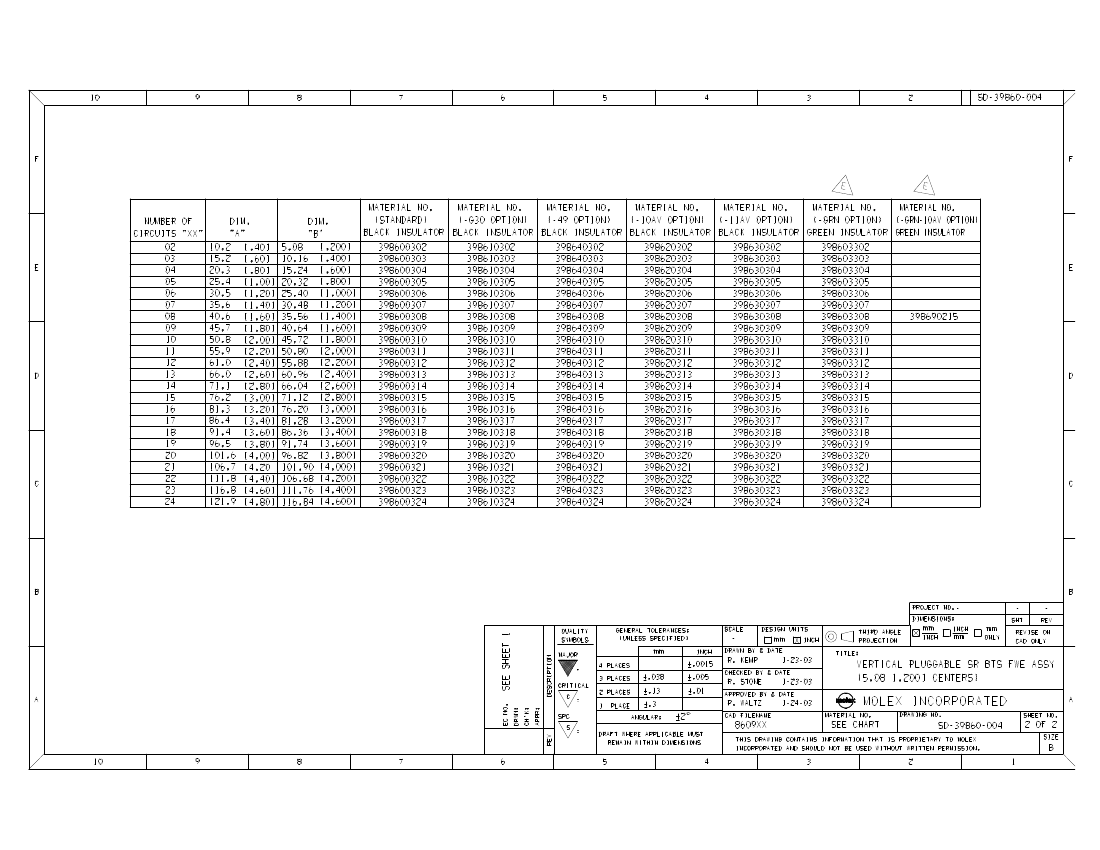

	39860-0304	39860-0302	39860-0303	39860-0306
Description	TERM BLOCK PLUG 4POS 5.08MM	TERM BLOCK PLUG 2POS 5.08MM	TERM BLOCK PLUG 3POS 5.08MM	TERM BLOCK PLUG 6POS 5.08MM
type	plug, female socket	plug, female socket	plug, female socket	plug, female socket
Number of pins	4	2	3	6
Number of pins per level	4	2	3	6
Number of levels	1	1	1	1
spacing	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）
Plug entrance	90°	90°	90°	90°
Terminal type	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp
Installation type	free hanging	free hanging	free hanging	free hanging
Current - UL	15A	15A	15A	15A
Voltage - UL	300V	300V	300V	300V
Wire Gauge or Range - AWG	12-26 AWG	12-26 AWG	12-26 AWG	12-26 AWG
color	black	black	black	black
Operating temperature	110°C	110°C	110°C	110°C
Contact mating surface treatment	tin	tin	tin	tin
characteristic	Fixed lock (wire side)	Fixed lock (wire side)	Fixed lock (wire side)	Fixed lock (wire side)
Screw size	M3	M3	M3	M3
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Shell material	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
Insulation height	1.010"（25.65mm）	1.010"（25.65mm）	1.010"（25.65mm）	1.010"（25.65mm）
