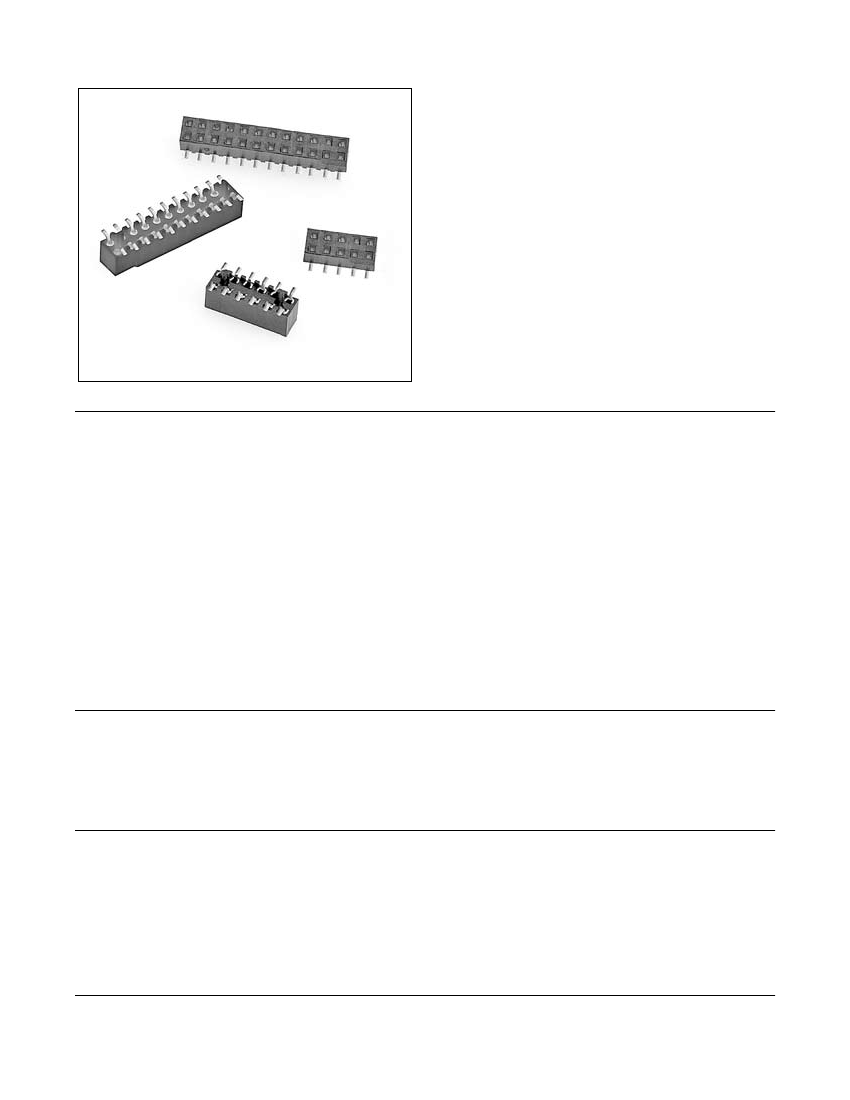

3M
™
Boardmount Socket
2 mm x 2 mm Str. Surface Mount, Str. and R. A. Plated Through-Hole
•
•
•
•
•
•
•
•
1502 Series
High temperature dielectric
Reflow solder compatible
Surface mount and through hole mounting styles
Industry standard compatible
Minimizes PC board stacking heights
End stackable feature
Side stackable feature on PTH versions
SMT Sockets are available in tape and reel with
vacuum cap for automatic placement.
•
See Regulatory Information Appendix (RIA) for
•
chemical compliance information
Date Modified: January 23, 2008
TS-0519-E
Sheet 1 of 4
Physical
Insulator:
Material: Glass Filled PCT
Flammability: UL 94V-0
Color: Black
Contact:
Material: Copper Alloy
Plating:
Underplating: 50-150 μ” [ 1.27-3.81 μm ] Nickel overall
Wiping Area: 30 μ” [0.76 μm] Gold
Solder Tails: 200 μ” [ 5.1 μm ] Matte Tin or Tin Lead (refer to ordering information)
Marking:
Orientation delta and 3M Logo
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1 × 10
9
Ω
at 250 V
DC
Withstanding Voltage:
500 V
DC
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C, (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Boardmount Socket
2 mm x 2 mm Str. Surface Mount, Str. and R. A. Plated Through-Hole
Table 1
Contact
Quantity
4
6
Dimension A
0.156 [3.96]
0.231 [5.87]
Tape
Width
n/a
n/a
Order
Code
n/a
n/a
A
(See Table 1)
1502 Series
C
10
14
12
8
0.310 [7.87]
0.389 [9.88]
24 mm
24 mm
24 mm
WB
WB
WB
WB
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
0.546 [13.87]
0.467 [11.86]
0.625 [15.88]
0.704 [17.88]
0.782 [19.86]
0.861 [21.87]
0.940 [23.88]
1.019 [25.88]
1.097 [27.86]
1.176 [29.87]
1.255 [31.88]
1.334 [33.88]
1.412 [35.86]
1.491 [37.87]
1.570 [39.88]
1.649 [41.88]
1.727 [43.87]
24 mm
24 mm
32 mm
32 mm
44 mm
44 mm
44 mm
44 mm
44 mm
56 mm
56 mm
56 mm
56 mm
56 mm
56 mm
72 mm
.220 ± .010
[ 5.59 ]
.020 [ 0.51 ]
Positions per row, subtract 1,
multiple by 2 mm [ .079 ] spacing
WD
WD
WD
WD
WD
WD
WE
WE
WE
WE
WE
WE
WF
WF
WD
WB
.043 [ 1.09 ]
Mate Point
.151 [ 3.84 ]
.183 [ 4.65 ]
.079 [ 2.00 ] Typ
**Optional locator posts:
Positions per row, multiple by 2mm
[ .079 ], and then subtract
4 mm [ .157 ]
.051 [ 1.30 ]
58
60
56
54
52
50
48
46
2.042 [5 1.87]
2.200 [55.88]
2.121 [53.87]
1.964 [49.89]
1.885 [47.88]
1.806 [45.87]
2.278 [57.86]
2.357 [59.87]
88 mm
88 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
WF
WF
WF
WF
WG
WG
.055
[ 1.40 ]
.003
WF
.079 [ 2.00 ] Typ
.060 [ 1.52 ]
Notes:
1.Tape & reel include vacuum pick-up cap for pick ‘n place
handling equipment.
2. Parts in tray packaging are supplied without vacuum cap.
Inch
[mm]
.220
[ 5.59 ]
.030
[ 0.76 ]
**Optional locator holes:
Positions per row, multiple by
2mm [ .079 ], and then subtract
4 mm [ .157 ]
Tolerance Unless Noted
.0
.00
Inch
±
.1
.000
[ ] Dimensions for
Reference only
±
.01
±
.005
Positions per row, subtract 1,
multiple by 2mm [ .079 ] spacing
Recommended MountingHole Pattern
**Optional Locator Posts available for positions eight and greater.
Ordering Information
1502XX-20X0-XX-XX
Number of Positions
(see table 1)
(Even No.: 4 - 60)
Board Location Post
0 = None
2 = With Board Location Post
Packaging style:
Blank = tray packaging
WX = tape & reel pkg (see Table 1 for
ordering code)
TS-0519-E
Sheet 2 of 4
Plating suffix:
RB = 30 μ” [.76 μm] Gold with Matte Tin solder tails (RIA E1 & C1 apply)
TB = 30 μ” [.76 μm] Gold with Tin-lead solder tails (RIA E3 & C2 apply)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Boardmount Socket
2 mm x 2 mm Str. Surface Mount, Str. and R. A. Plated Through-Hole
Table 1
Contact
Quantity
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
Dimension A
0.156 [3.96]
0.231 [5.87]
0.310 [7.87]
0.467 [11.86]
0.389 [9.88]
“A”
(See Table 1)
1502 Series
C
0.546 [13.87]
0.625 [15.88]
0.704 [17.88]
0.782 [19.86]
0.861 [21.87]
0.940 [23.88]
1.019 [25.88]
1.097 [27.86]
1.176 [29.87]
1.255 [31.88]
1.334 [33.88]
1.412 [35.86]
1.491 [37.87]
1.570 [39.88]
1.649 [41.88]
1.727 [43.87]
1.806 [45.87]
1.885 [47.88]
2.042 [5 1.87]
2.121 [53.87]
2.200 [55.88]
2.278 [57.86]
2.357 [59.87]
.079
[ 2.00 ]
.028
[ 0.71 ]
Positions per row, subtract 1,
multiple by 2 mm [ .079 ] spacing
.043
[ 1.09 ]
Mate Point
.151
[ 3.84 ]
.177
[ 4.50 ]
.020
[ 0.51 ]
.008
[ 0.20 ]
.079
[ 2.00 ]
‘‘B''
±
.010
1.964 [49.89]
.079 [ 2.00 ]
∅.028 ±
.003
[ 0.71 ]
Positions per row, subtract 1 position,
multiple by 2 mm [ .079 ] spacing
Tolerance Unless Noted
.0
.00
Inch
±
.1
Inch
[mm]
Recommended Hole Pattern
.000
[ ] Dimensions for
Reference only
±
.01
±
.005
Ordering Information
1502XX-600X-XX
Number of Positions
(see table 1)
(Even No.: 4 - 60)
Solder Tail Length
Dimension B
1 = .055″ (1.4 mm)
2 = .100″ (2.54 mm)
Plating suffix:
RB = 30 μ” [.76 μm] Gold with Matte Tin solder tails (RIA E1 & C1 apply)
TB = 30 μ” [.76 μm] Gold with Tin-lead solder tails (RIA E3 & C2 apply)
TS-0519-E
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Boardmount Socket
2 mm x 2 mm Str. Surface Mount, Str. and R. A. Plated Through-Hole
Table 1
Contact
Quantity
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
Dimension A
0.310 [7.87]
0.467 [11.86]
0.389 [9.88]
C
1502 Series
0.546 [13.87]
0.625 [15.88]
0.704 [17.88]
0.782 [19.86]
0.861 [21.87]
0.940 [23.88]
1.019 [25.88]
1.097 [27.86]
1.176 [29.87]
1.255 [31.88]
1.334 [33.88]
1.412 [35.86]
1.491 [37.87]
1.570 [39.88]
1.649 [41.88]
1.727 [43.87]
1.806 [45.87]
1.885 [47.88]
2.042 [5 1.87]
2.121 [53.87]
2.200 [55.88]
2.278 [57.86]
2.357 [59.87]
.079 [ 2.00 ]
.130 [ 3.30 ]
.079 Typ
[ 2.00 ]
B
Standoff
Height
A
.043
[ 1.09 ]
Mating Point
.308
[ 7.82 ]
Positions per row, subtract 1,
multiple by 2 mm [ .079 ] spacing
C
D
E
.020
[ 0.51 ]
Optional locator posts:
Positions per row, multiple by 2 mm
[ .079 ], and then subtract
4 mm [ .157 ]
F
.074
[ 1.88 ]
.079 Typ
[ 2.00 ]
.130
[ 3.30 ]
1.964 [49.89]
Positions per row, subtract 1,
multiple by 2mm [ .079 ] spacing
.079 Typ
[ 2.00 ]
∅.028 ±.003
[ 0.71 ]
∅.055 ±.003
[ 1.40 ]
Optional locator holes:
Positions per row, multiple by 2mm
[ .079 ], and then subtract
4mm [ .157 ]
Recommended Hole Pattern
Table 2
Standoff
Height Code
0
1
2
Dimensions
B
.015 [0.38]
.053 [1.35]
.028 [0.71]
C
.065 [1.65]
.103 [2.62]
.078 [1.98]
D
.179 [4.55]
.217 [5.51]
.192 [4.88]
E
.100 [2.54]
.100 [2.54]
.125 [3.18]
F
.040 [1.02]
.040 [1.02]
.015 [0.38]
.0
Inch
[mm]
Tolerance Unless Noted
.00
Inch
±
.1
.000
[ ] Dimensions for
Reference only
±
.01
±
.005
Ordering Information
1502XX-5XX2-XX
Number of Positions
(see table 1)
(Even No.: 10 - 60)
Standoff Height Code
(see table 2, Dim B)
0 = .015″ [0.38] (Standard)
1 = .053″ [1.35]
2 = .028″ [0.71](Position 40,
44, and 50 only)
Board Location Post
0 = None
2 = With Board Location Post
Plating suffix:
RB = 30 μ” [.76 μm] Gold with Matte Tin solder tails
(RIA E1 & C1 apply)
TB = 30 μ” [.76 μm] Gold with Tin-lead solder tails
(RIA E3 & C2 apply)
TS-0519-E
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC, as amended by EU Commission Decision 2005/717/EC, as amended by
EU Court of Justice Decision 2008/C 116/04
This product contains decaBDE in the insulating material in excess of the maximum concentration allowed for finished
products subject to EU RoHS that are placed on the EU market after June 30, 2008.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.product Warranty stated below.
RIA-2217A-E
京公网安备 11010802033920号
EEWORLD
