MCC
TM
Micro Commercial Components
omponents
20736 Marilla Street Chatsworth
!"#
$
% !"#
DTA114TCA
Features
•
•
•
Lead Free Finish/RoHS Compliant ("P" Suffix designates
RoHS Compliant. See ordering information)
Epoxy meets UL 94 V-0 flammability rating
Moisure Sensitivity Level 1
Built-in bias resistors enable the configuration of an inverter circuit

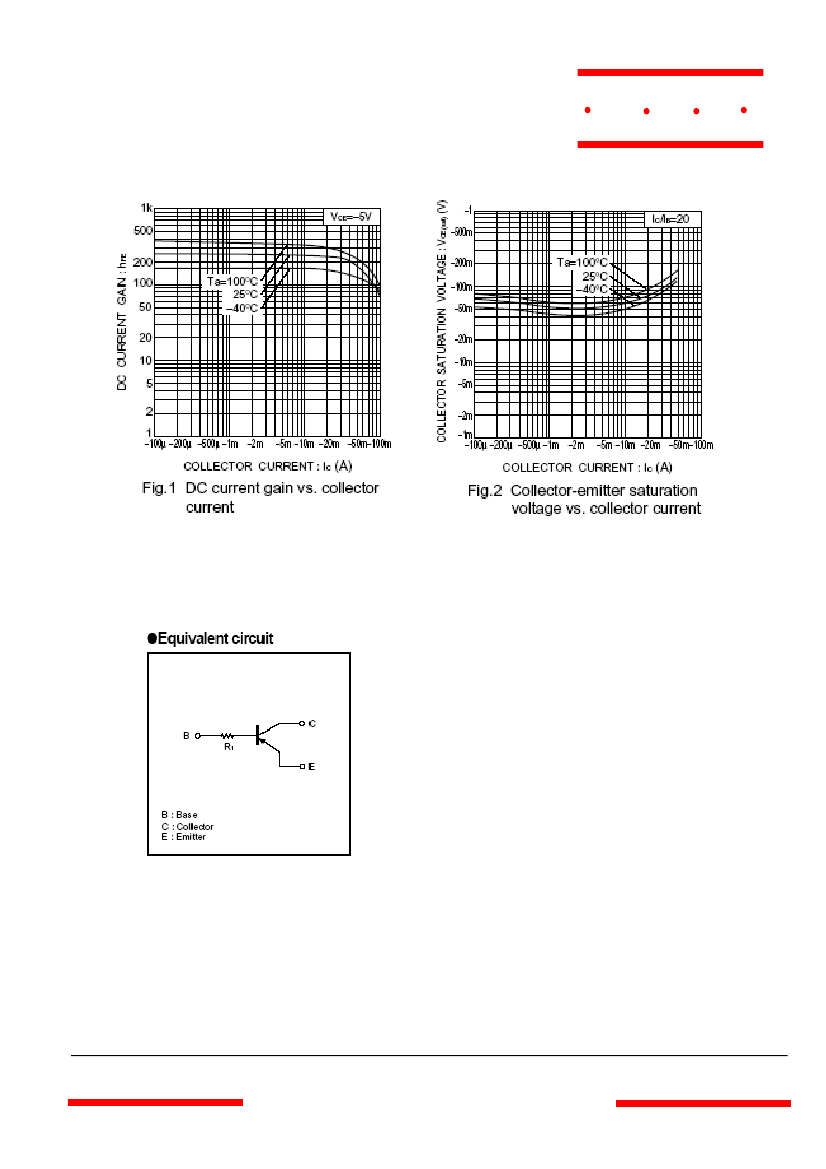

without connecting external input resistors (see equivalent circuit)
The bias resistors consist of thin-film resistors with complete
isolation to allow negative biasing of the input. They also have the
advantage of almost completely eliminating parasitic effects
Only the on/off conditions need to be set for operation, making
device design easy
Halogen
free available upon request by adding suffix "-HF"
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base voltage
Collector Current-Continuous
Collector Dissipation
Junction Temperature Range
Storage Temperature Range
PNP Digital Transistor
SOT-23
A
D
3
1
C
2
•
Absolute Maximum Ratings
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J
T
STG
Value
-50
-50
-5
-100
200
-55~150
-55~150
Unit
V
V
V
mA
mW
G
B
1.
Base
2.
Emitter
3.
Collector
F
E
H
J
K
DIMENSIONS
Electrical Characteristics
Sym
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
V
CE(sat)
R
1
f
T
Parameter
Collector-Base Breakdown Voltage
(I
C
=-50uA, I
E
=0)
Collector-Emitter Breakdown Voltage
(I
C
=-1mA, I
B
=0)
Emitter-Base Breakdown Voltage
(I
E
=-50uA, I
C
=0)
Collector Cut-off Current
(V
CB
=-50V, I
E
=0)
Emitter Cut-off Current
(V
EB
=-4V, I
C
=0)
DC Current Gain
(V
CE
=-5V, I
C
=-1mA)
Collector-Emitter Saturation Voltage
(I
C
=-10mA, I
B
=-1mA)
Input Resistor
Transition Frequency
(V
CE
=-10V, I
C
=-5mA, f=100MHz)
Min
-50
-50
-5
---
---
100
---
7
---
Typ
---
---
---
---
---
250
---
10
250
Max
---
---
---
-0.5
-0.5
600
-0.3
13
---
Unit
V
V
V
uA
uA
---
V
K
MHz
DIM
A
B
C
D
E
F
G
H
J
K
INCHES
MIN
MAX
.110
.120
.083
.104
.047
.055
.035
.041
.070
.081
.018
.024
.0005
.0039
.035
.044
.003
.007
.015
.020
MM
MIN
2.80
2.10
1.20
.89
1.78
.45
.013
.89
.085
.37
MAX
3.04
2.64
1.40
1.03
2.05
.60
.100
1.12
.180
.51
NOTE
Suggested Solder
Pad Layout
.031
.800
.035
.900
.079
2.000
inches
mm
*Marking: 94
.037
.950
.037
.950
www.mccsemi.com
Revision: B
1
of
3
2013/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel;3Kpcs/Reel
