DTC113ZUA-TP

Description
TRANS PREBIAS NPN 200MW SOT323
Categorysemiconductor    Discrete semiconductor
File Size196KB,2 Pages
ManufacturerMicro Commercial Co
Environmental Compliance
Download Datasheet Parametric View All

DTC113ZUA-TP Online Shopping

Suppliers Part Number Price MOQ In stock
DTC113ZUA-TP - - View Buy Now

DTC113ZUA-TP Overview

TRANS PREBIAS NPN 200MW SOT323

DTC113ZUA-TP Parametric

Parameter NameAttribute value
Transistor typeNPN - Pre-biased
Current - Collector (Ic) (Maximum)100mA
Resistor - Substrate (R1)1 kOhms
Resistor - Emitter Base (R2)10 kOhms
DC current gain (hFE) at different Ic, Vce (minimum value)33 @ 5mA,5V
Vce saturation value (maximum value) when different Ib,Ic300mV @ 500µA,10mA
Current - collector cutoff (maximum)500nA
Frequency - Transition250MHz
Power - Max200mW
Installation typesurface mount
Package/casingSC-70,SOT-323
Supplier device packagingSOT-323
MCC
Micro Commercial Components
TM
  omponents
20736
Marilla
Street Chatsworth

  !"#
$ %    !"#

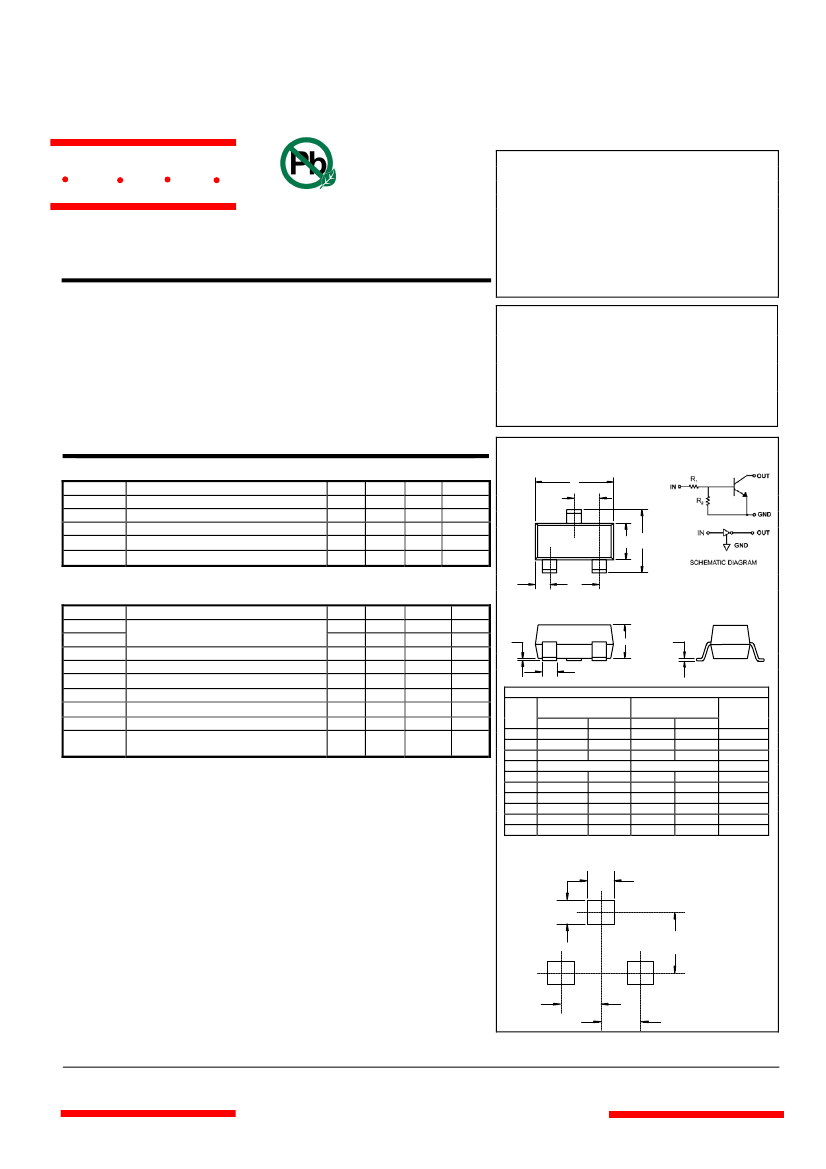

DTC113ZUA
Features
Lead Free Finish/RoHS Compliant ("P" Suffix designates
RoHS Compliant. See ordering information)
Epitaxial Planar Die Construction
Complementary NPN Types Available
Built-In Biasing Resistors
Epoxy meets UL 94 V-0 flammability rating
Moisure Sensitivity Level 1
Marking: E21
Halogen
free available upon request by adding suffix "-HF"
Symbol
I
C
V
IN
P
d
T
j
T
stg
Parameter
Collector current
Input voltage
Power dissipation
Junction temperature
Storage temperature
Min
---
-5
---
---
-55
Typ
100
---
200
150
---
Max
---
+10
---
---
150
Unit
mA
V
mW
Digital Transistors
Absolute maximum ratings @ 25
A
D
3
SOT-323
1
2
B
C
1.IN
Electrical Characteristics @ 25
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T
Parameter
Input voltage (V
CC
=5V, I
O
=100 A)
(V
O
=0.3V, I
O
=20mA)
Output voltage (I
O
=10mA,I
i
=0.5mA)
Input current (V
I
=5V)
Output current (V
CC
=50V, V
I
=0)
DC current gain (V
O
=5V, I
O
=5mA)
Input resistance
Resistance ratio
Transition frequency
(V
CE
=10V, I
E
=5mA, f=100MHz)
Min
---
3.0
---
---
---
33
0.7
8
---
Typ
---
---
---
---
---
---
1.0
10
250
Max
0.3
---
0.3
7.2
0.5
---
1.3
12
---
Unit
V
V
V
mA
A
K
MHz
DIM
A
B
C
D
E
F
G
H
J
K
G
F
E
2.GND
3.OUT
H
J
K
DIMENSIONS
INCHES
MIN
MAX
.071
.087
.045
.053
.083
.096
.026 Nominal
.047
.055
.012
.016
.000
.004
.035
.039
.004
.010
.006
.016
MM
MIN
MAX
1.80
2.20
1.15
1.35
2.10
2.45
0.65Nominal
1.20
1.40
.30
.40
.000
.100
.90
1.00
.100
.250
.15
.40
NOTE
Suggested Solder
Pad Layout
0.70
0.90
1.90
mm
0.65
0.65
Revision: C
www.mccsemi.com
1 of 2
2013/09/24
