PI3EQX502IZHEX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> PI3EQX502IZHEX

PI3EQX502IZHEX: DescriptionIC REDRIVER USB 3.0 1CH 16TQFN; Categorysemiconductor Analog mixed-signal IC; File Size392KB，1 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PI3EQX502IZHEX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PI3EQX502IZHEX	-	-	View	Buy Now

PI3EQX502IZHEX Overview

IC REDRIVER USB 3.0 1CH 16TQFN

PI3EQX502IZHEX Parametric

Parameter Name	Attribute value
type	buffer, redriver
application	USB 3.0
enter	CML
output	CML
Data rate (maximum)	5Gbps
Number of channels	1
delay	-
signal conditioning	Input equalization, output de-emphasis
Voltage - Power	3.3V
Current - Power	-
Operating temperature	-
Package/casing	16-WFQFN Exposed Pad
Supplier device packaging	16-TQFN（3x3）

Preview

Download Datasheet

View All

New Product Brief

Product Databrief

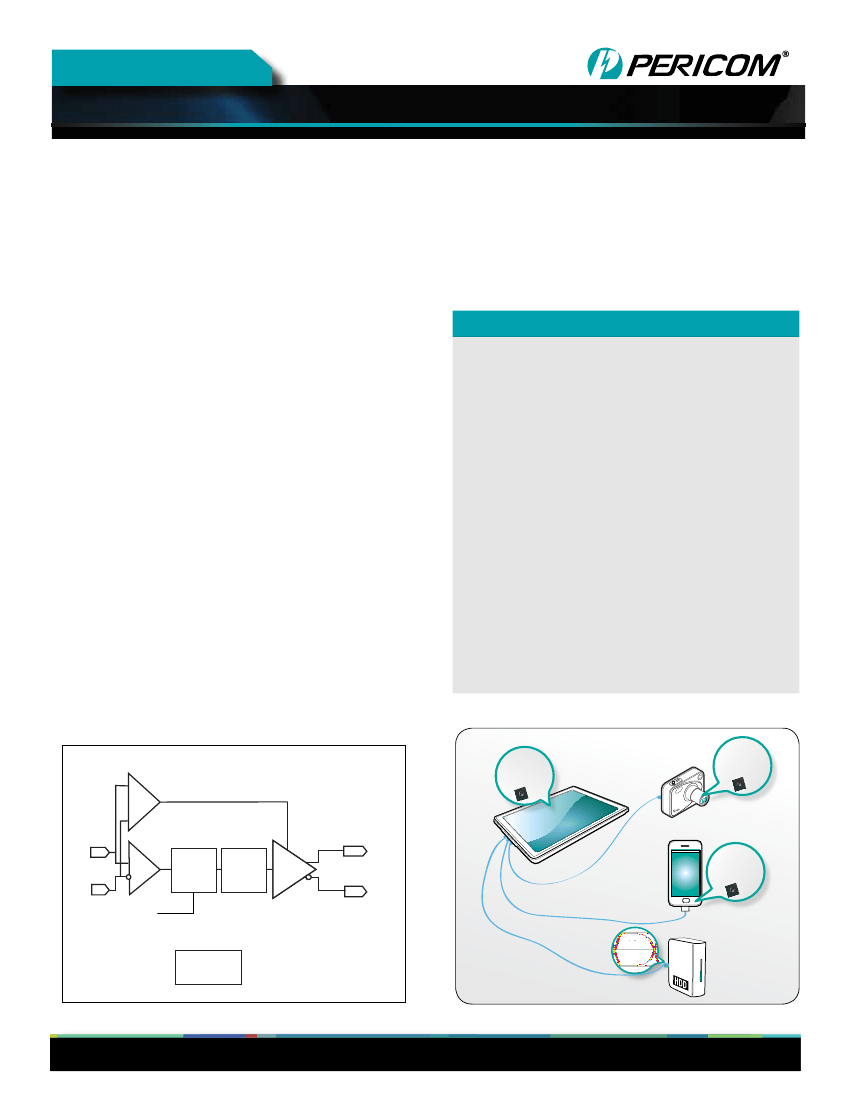

PI3EQX502I

5.0Gbps, 1-port, USB3.0 ReDriver™

Pericom Semiconductor’s PI3EQX502I is a low power, high

performance 5.0 Gbps signal ReDriver™ designed specifi-

cally for the USB 3.0 protocol. The device provides pro-

grammable equalization and De-Emphasis to optimize per-

formance over a variety of physical mediums by reducing

Inter-Symbol Interference. PI3EQX502I supports two 100Ω

Differential CML data I/O’s between the Protocol ASIC to

a switch fabric, over cable, or to extend the signals across

other distant data pathways on the user’s platform.

The integrated equalization circuitry provides flexibility with

signal integrity of the signal before the ReDriver. A low-level

input signal detection and output squelch function is provid-

ed for each channel. Each channel operates fully indepen-

dently. The channels’ input signal level (on xI+/-) determines

whether the output is active. If the input signal level of the

channel falls below the active threshold level (Vth-) then the

outputs are driven to the common mode voltage.

The PI3EQX502I also includes an automatic receiver de-

tect function. The receiver detection loop will be ac-

tive again if the corresponding channel’s signal detec-

tor is idle for longer than 7.3mS. The channel will then

move to Unplug Mode if load not detected, or it will re-

turn to Low Power Mode (Slumber Mode) due to inactivity.

Block Diagram

Signal Detection

Features

ÎÎ

USB

ÎÎ

Full

ÎÎ

Two

3.0 compatible

5.0Gbps differential signal pairs

Receiver Equalization

Differential CML I/O’s

Compliancy to USB3.0 Super Speed Standard

ÎÎ

Adjustable

ÎÎ

100Ω

ÎÎ

Configured Output Emphasis Control

ÎÎ

Input

signal level detect and squelch for

each channel

Receiver Detect

Power : ~330mW

ÎÎ

Automatic

ÎÎ

Low

ÎÎ

Auto

“Slumber” mode for adaptive power

management

Supply Voltage: 3.3V

16-Contact TQFN

ÎÎ

Single

ÎÎ

Packaging:

Application Diagram

Pericom

USB3.0

ReDriver

Pericom

USB3.0

ReDriver

Tablet PC

Digital Camera

CML

XI+

XO+

Equalizer

XI –

Limiting

Amp

XO –

Pericom

USB3.0

ReDriver

USB 3.0 Cable

EQ_x

Smart Phone

Power

Management

External

Storage

Device

www.pericom.com | 1-408-232-9100
