A product Line of
Diodes Incorporated
PRODUCT BRIEF
PI2EQX502T
Description
1.2V, 5.0Gbps, 1-Port, USB3.0 ReDriver
Features
¼
¼
USB 3.0 compatible
¼
¼
Full Compliancy to USB3.0 Super Speed Standard
¼
¼
Two 5.0Gbps differential signal pairs
¼
¼
Adjustable Receiver Equalization
¼
¼
100Ω Differential CML I/O’s
¼
¼
Pin Configured Output Emphasis Control
¼
¼
Input signal level detect and squelch for each channel
¼
¼
Automatic Receiver Detect
¼
¼
Low Power : ~137mW
¼
¼
Auto “Slumber” mode for adaptive power management
¼
¼
Single Supply Voltage: 1.2V
¼
¼
Packaging: 16-Pin TQFN 3 x 3 mm
The PI2EQX502T is a low power, high performance 5.0 Gbps
signal ReDriver designed specifically for the USB 3.0 protocol.
The device provides programmable equalization and De-
Emphasis to optimize performance over a variety of physical
mediums by reducing Inter-Symbol Interference. PI2EQX502T
supports two 100Ω Differential CML data I/O’s between the
Protocol ASIC to a switch fabric, over cable, or to extend the
signals across other distant data pathways on the user’s platform.
The integrated equalization circuitry provides flexibility with
signal integrity of the signal before the ReDriver. A low-level
input signal detection and output squelch function is provided
for each channel. Each channel operates fully independently.
The channels’ input signal level (on xI+/-) determines whether
the output is active.
The PI2EQX502T also includes an automatic receiver detect
function. The receiver detection loop will be active again if the
corresponding channel’s signal detector is idle for longer than
7.3mS. The channel will then move to Unplug Mode if load not
detected, or it will return to Low Power Mode (Slumber Mode)
due to inactivity.

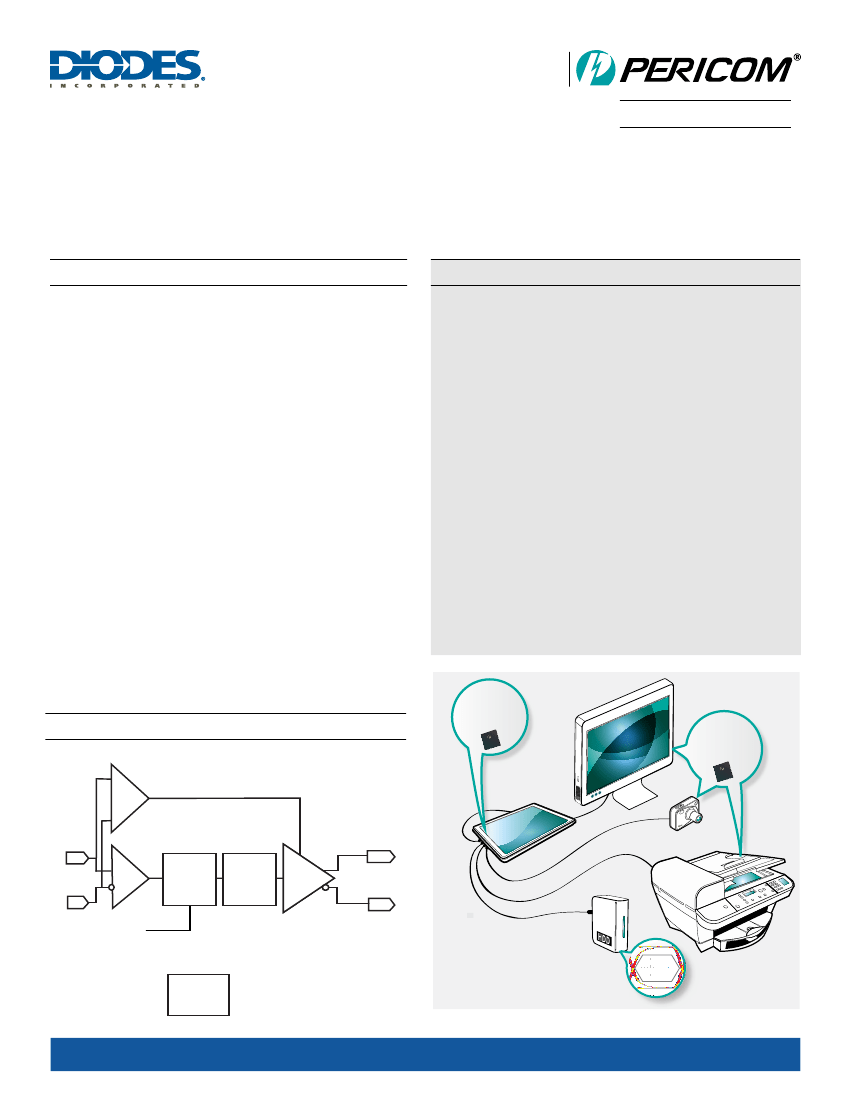

Application Diagram
Signal Detection
Pericom
USB 3.0
ReDriver
PC Monitor
Pericom
USB 3.0
ReDriver
Tablet PC
CML
CML
XI+
Equalizer
XI –
EQ_x
Limiting
Amp
XO –
XO+
Digital Camera
- Repeated 2 times -
External Storage
USB 3.0
Device
Cable
Multi-function
Printer
Power
Management
diodes.com | 1-408-232-9100
