0460101821

Description
MF PLUSHCS PCB RECEP HDR 18CKT V
CategoryThe connector
File Size2MB，3 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric Compare View All

0460101821 Overview

MF PLUSHCS PCB RECEP HDR 18CKT V

0460101821 Parametric

Parameter NameAttribute value
Connector typesocket
Contact typefemale socket
styleBoard to Board or Cable
Number of pins18
Number of pins loadedall
Spacing - Mating0.165"（4.20mm）
Number of rows2
Line spacing - patching0.165"（4.20mm）
Installation typeThrough hole
Terminationwelding
Fastening typepush-pull
Contact surface treatment - matingtin
Contact Surface Treatment Thickness - Mating100.0µin（2.54µm）
Insulation colornatural
Insulation height0.446"（11.33mm）
Contact length - terminal0.138"（3.50mm）
Operating temperature-40°C ~ 105°C
Material flammability ratingUL94 V-0
Contact Surface Preparation - Columntin
Joint stack height10.9mm，15.24mm，15.82mm
Intrusion protection-
characteristicplate lock
Rated current-
Rated voltage600VAC
application-
Insulation MaterialsPolyamide (PA66), Nylon 66
Contact shapeSquare
Contact materialcopper alloy
Contact Surface Treatment Thickness - Column50.0µin（1.27µm）

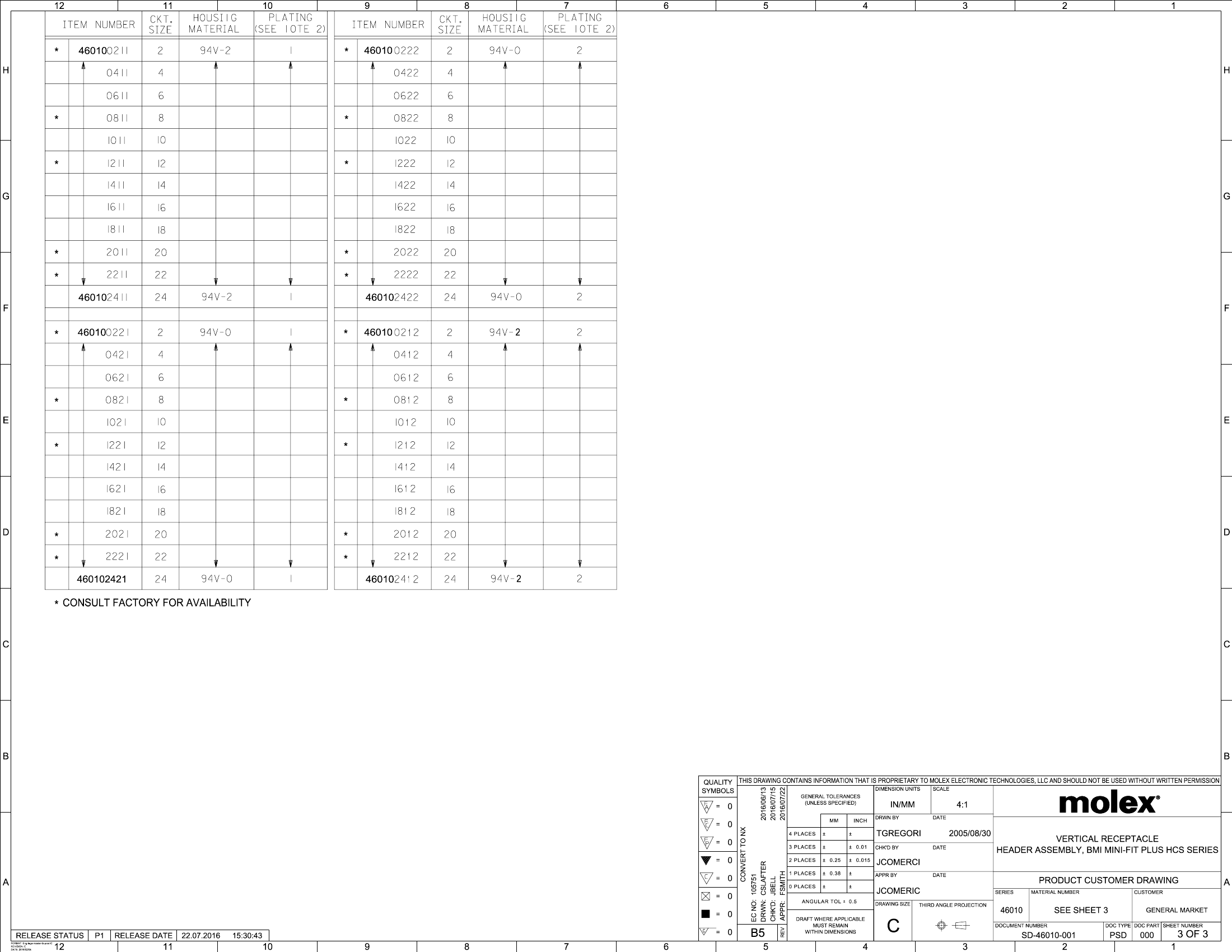

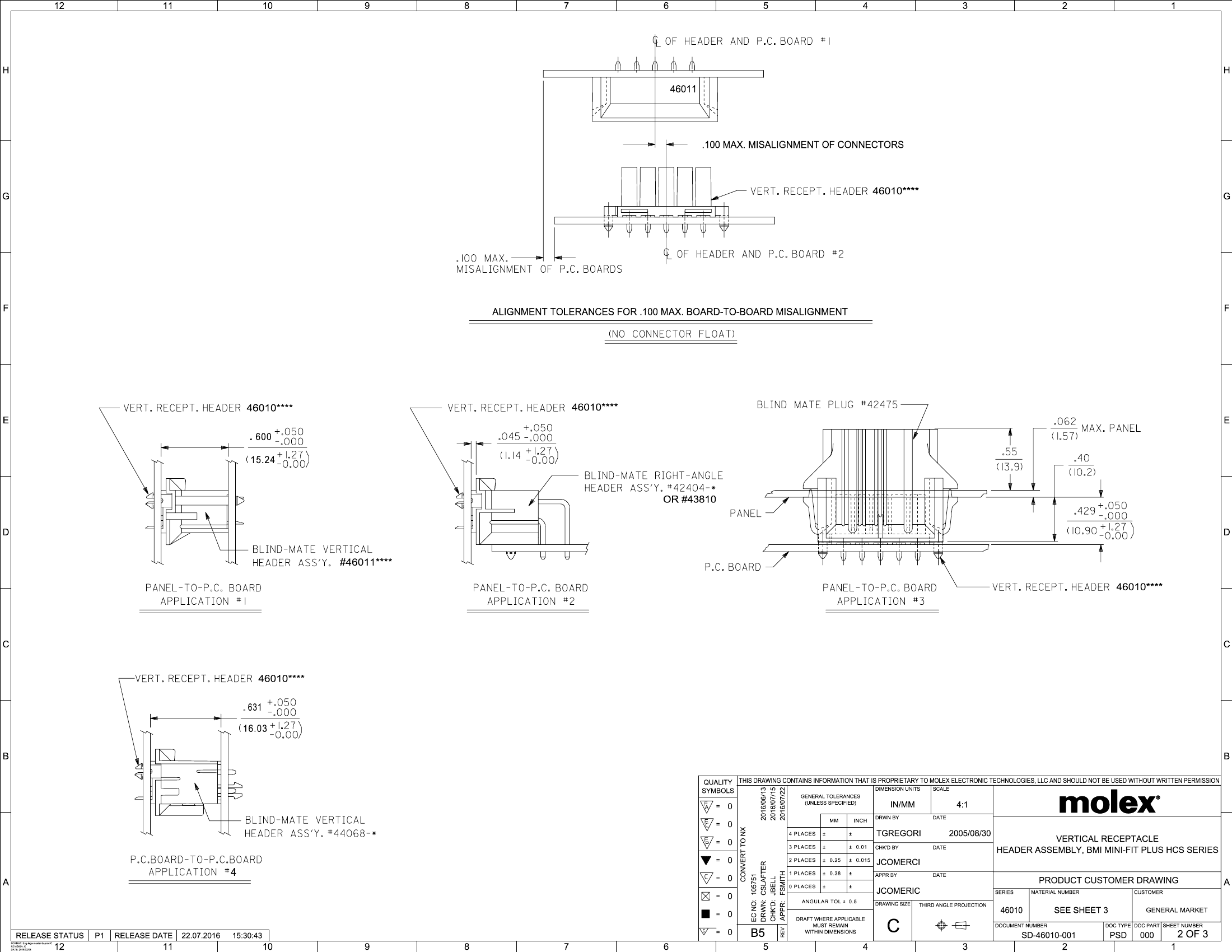

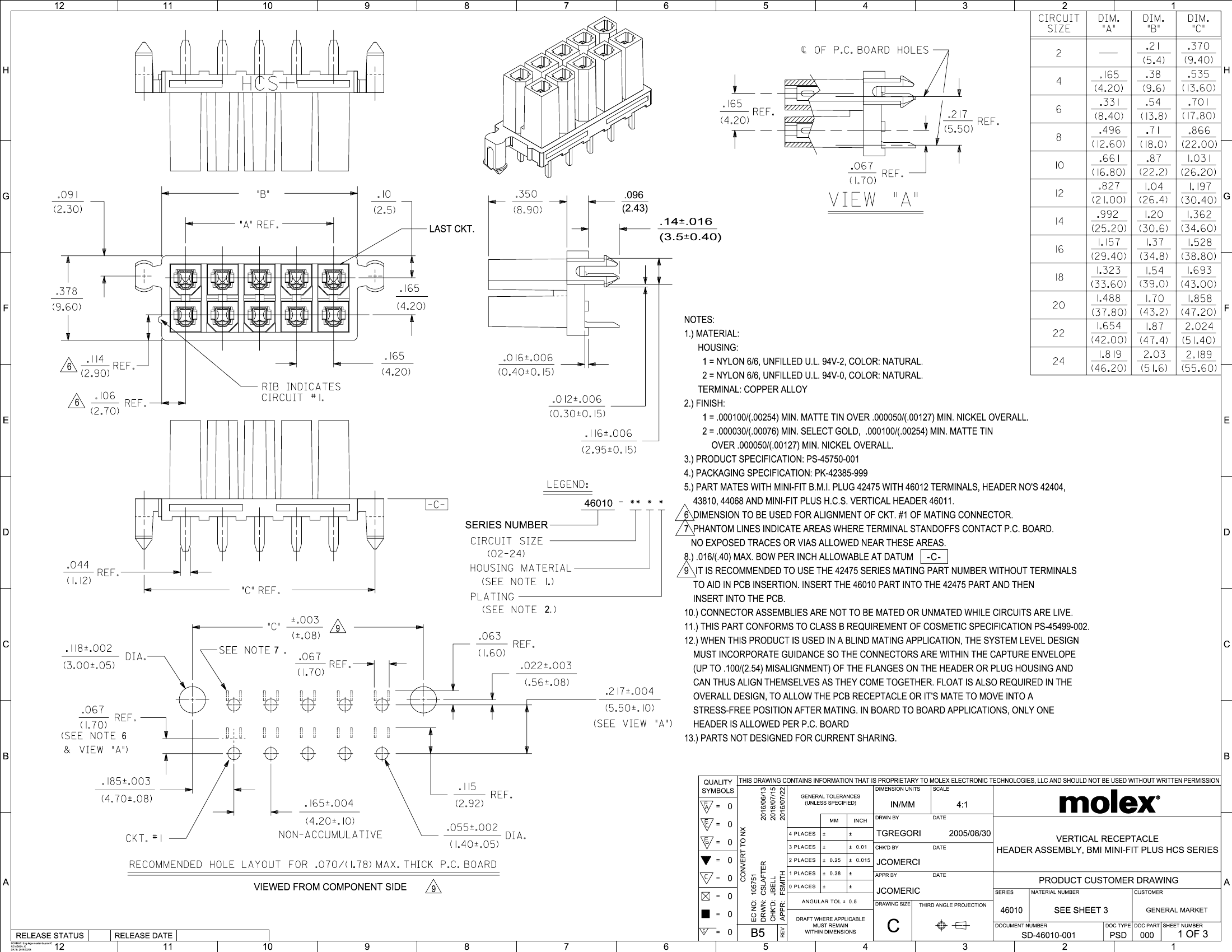

Preview

Download Datasheet

0460101821 Related Products

0460101821 0460100411 0460100622 0460100421 0460101421 0460101022 0460100611 0460102422 0460100621 0460100612
Description MF PLUSHCS PCB RECEP HDR 18CKT V MF PLUSHCS PCB RECEP HDR 4CKT V2 M-F PLUSHCS PCB RECEP HDR 6CKT M-F PLUSHCS PCB RECEP HDR 4CKT MF PLUSHCS PCB RECEP HDR 14CKT V M-F PLUSHCS PCB RECEP HDR 10CKT M-F PLUSHCS PCB RECEP HDR 6CKT V MF PLUSHCS PCB RECEP HDR 24CKT V M-F PLUSHCS PCB RECEP HDR 6CKT MF HCS+ VERT RECEPT HDR 6CKT V2
Connector type socket socket socket socket socket socket socket socket socket socket
Contact type female socket female socket female socket female socket female socket female socket female socket female socket female socket female socket
style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Number of pins 18 4 6 4 14 10 6 24 6 6
Number of pins loaded all all all all all all all all all all
Spacing - Mating 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm）
Number of rows 2 2 2 2 2 2 2 2 2 2
Line spacing - patching 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm） 0.165"（4.20mm）
Installation type Through hole Through hole Through hole Through hole Through hole Through hole Through hole Through hole Through hole Through hole
Termination welding welding welding welding welding welding welding welding welding welding
Fastening type push-pull push-pull push-pull push-pull push-pull push-pull push-pull push-pull push-pull push-pull
Contact surface treatment - mating tin tin gold tin tin gold tin gold tin gold
Contact Surface Treatment Thickness - Mating 100.0µin（2.54µm） 100.0µin（2.54µm） 30.0µin（0.76µm） 100.0µin（2.54µm） 100.0µin（2.54µm） 30.0µin（0.76µm） 100.0µin（2.54µm） 30.0µin（0.76µm） 100.0µin（2.54µm） 30.0µin（0.76µm）
Insulation color natural natural natural natural natural natural natural natural natural natural
Insulation height 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm） 0.446"（11.33mm）
Contact length - terminal 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm） 0.138"（3.50mm）
Operating temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Material flammability rating UL94 V-0 UL94 V-2 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-2 UL94 V-0 UL94 V-0 UL94 V-2
Contact Surface Preparation - Column tin tin tin tin tin tin tin tin tin tin
Joint stack height 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm 10.9mm，15.24mm，15.82mm
characteristic plate lock plate lock plate lock plate lock plate lock plate lock plate lock plate lock plate lock plate lock
Rated voltage 600VAC 600VAC 600VAC 600VAC 600VAC 600VAC 600VAC 600VAC 600VAC 600VAC
Insulation Materials Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66 Polyamide (PA66), Nylon 66
Contact shape Square Square Square Square Square Square Square Square Square Square
Contact material copper alloy copper alloy copper alloy copper alloy copper alloy copper alloy copper alloy copper alloy copper alloy copper alloy
Contact Surface Treatment Thickness - Column 50.0µin（1.27µm） 50.0µin（1.27µm） 100.0µin（2.54µm） 50.0µin（1.27µm） 50.0µin（1.27µm） 100.0µin（2.54µm） 50.0µin（1.27µm） 100.0µin（2.54µm） 50.0µin（1.27µm） 100.0µin（2.54µm）
