TB200-02SPQC7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> TB200-02SPQC7

TB200-02SPQC7: DescriptionTERMINAL BLOCK; CategoryThe connector terminals; File Size135KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

TB200-02SPQC7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TB200-02SPQC7	-	-	View	Buy Now

TB200-02SPQC7 Overview

TERMINAL BLOCK

TB200-02SPQC7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	4 weeks 2 days
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

Connectors

Double Row Terminal Blocks

Series TB200 & TB200HB

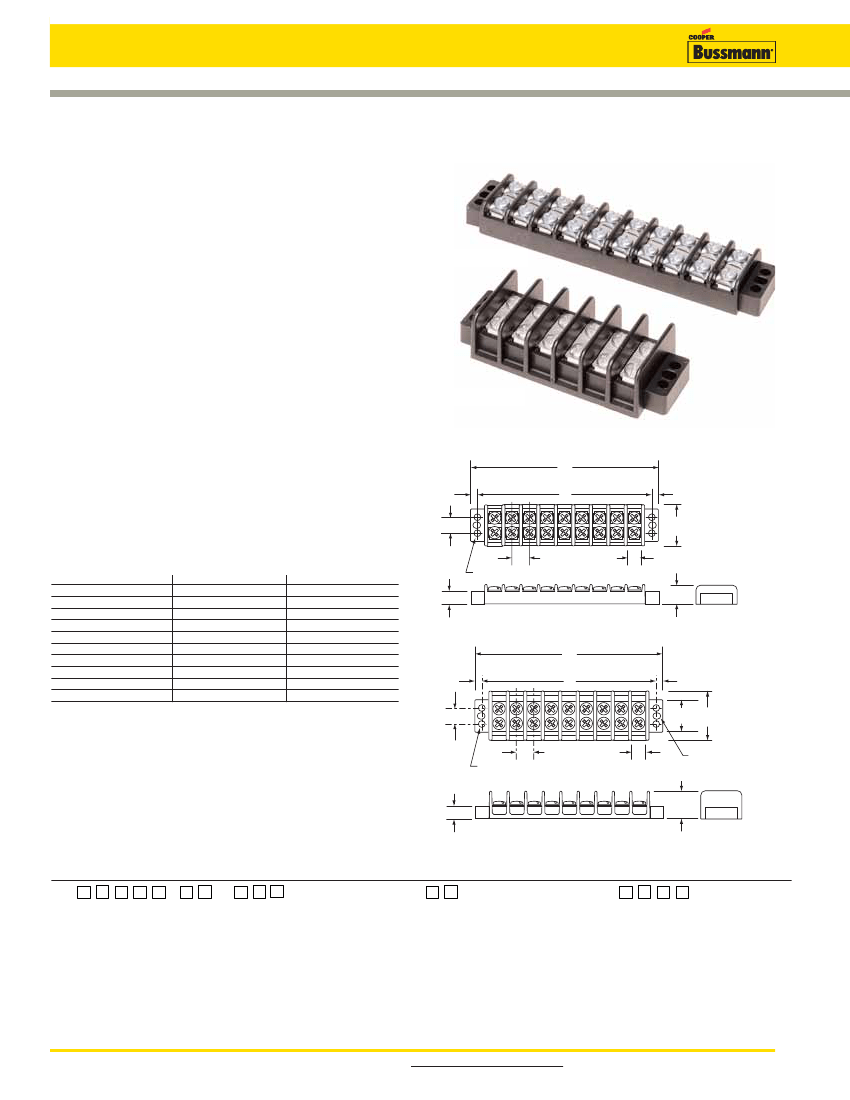

Specifications

Description:

Double row terminal blocks.

Ratings:

Volts: — 300V* (TB200)

— 600V* (TB200HB)

Amps: — 30A*

Center Spacing:

0.437” or 7/16” (11.10mm)

Wire Range:

#12 - 22 AWG Cu

Screw Size:

#6-32 philslot screws

Torque Rating:

9 lb-in.

Distance Between Barriers:

0.353” (8.97mm)

Mounting:

#6 screws

Operating Temperature:

130°C (266°F) max., -40°C (-40°F)

min.

Materials:

Molded base: Black, UL rated 94V0

thermoplastic

Terminal plating: Tin over brass; Screws: zinc-plated steel

Breakdown Voltage:

4800V

Agency Information:

UL File E62622, CSA File 47235 &

15364; IEC Compliance; CE Certified

* Max rating shown; some options may be rated lower - consult factory.

TB200-10SP

TB200HB-06

TB200 - in (mm)

0.16

(4.0)

0.16

(4.0)

1.12

(28.4)

0.437

(11.1)

0.353

(8.9)

0.44 (11.2)

Dimensions - in

Poles

1.63

2.07

2.51

2.94

3.38

3.82

4.25

4.69

5.13

5.57

1.31

1.75

2.18

2.62

3.06

3.50

3.93

4.37

4.81

5.25

Poles

6.00

6.44

6.87

7.31

7.75

8.19

8.62

9.06

9.50

9.94

5.68

6.12

6.56

7.00

7.43

7.87

8.31

8.75

9.18

9.62

Poles

10.37

10.81

11.25

11.68

12.12

12.56

13.00

13.44

13.87

10.06

10.50

10.93

11.37

11.81

12.25

12.68

13.12

13.56

.31 (7.8)

0.17 dia.

(4.3)

0.56

(14.2)

TB200HB

0.16

(4.0)

0.16

(4.0)

1” = 25.4mm.

0.44 (11.2)

0.90

1.37

(22.8) (34.8)

0.17 dia.

(4.3)

0.437

(11.1)

0.353

(8.9)

0.17 x 0.22

slots

(4.3 x 5.6)

0.33 (8.4)

0.75

(19.0)

Catalog Number Build-A-Code

Series

200 = Standard

200HB = High barrier

—

02 to 30

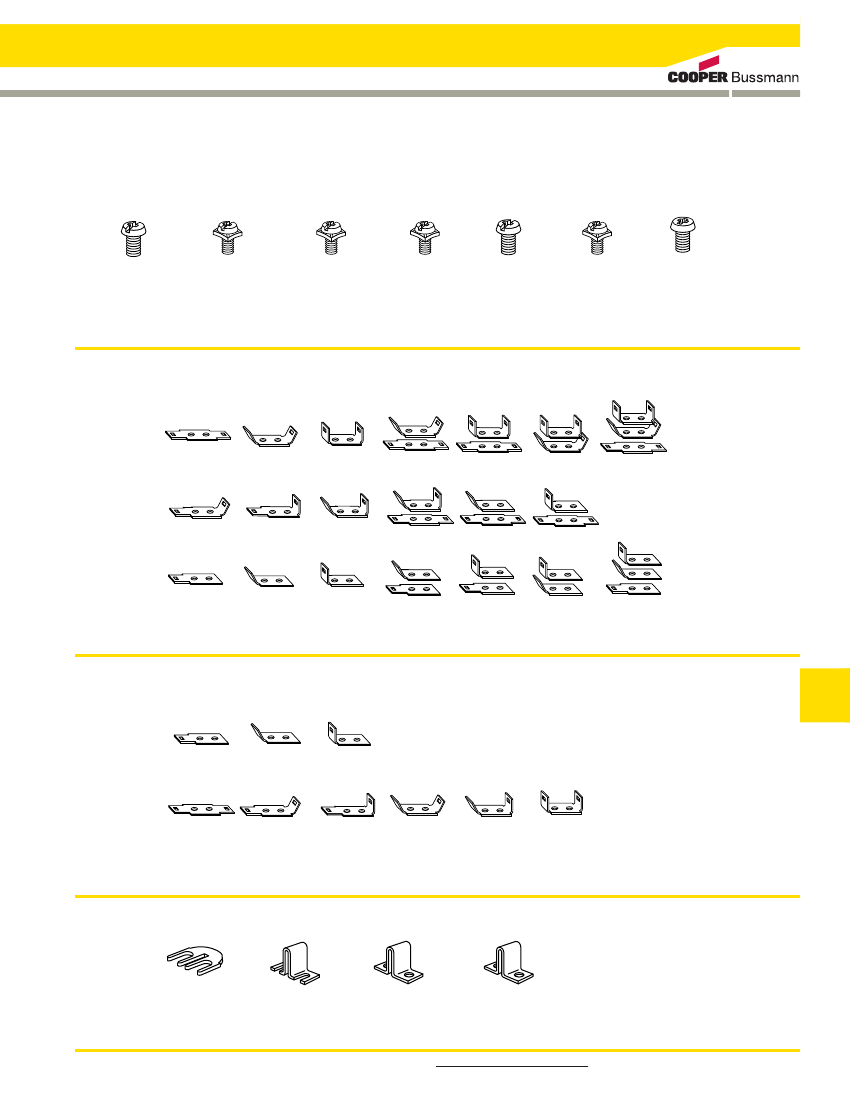

Blank = Steel philslot, zinc-plated

00 = Screws shipped bulk

B = Brass philslot, nickel-plated

BS = Brass Sems philslot, nickel-plated

SP = Steel Sems philslot, zinc-plated

P = Steel Sems (P-style)

ST = Stainless steel, philslot

SS = Stainless steel Sems, philslot

STR = Stainless steel, phillips (recess)

L1 to L6 Marking Strips (See page 318)

Special Markings (See page 318)

Covers (See page 318)

QC1 to QC20 = Quick connects

J201 = Flat slip-on jumper (2 position only)

0J3 = Over barrier jumpers

0J5 = Over barrier jumpers

0J7 = Over barrier jumpers

Poles

Screw Options

Marking/Cover

Hardware Options

314

For more information, visit www.cooperbussmann.com
