7P-38.400MBP-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 7P-38.400MBP-T

7P-38.400MBP-T: DescriptionOSC TCXO 38.400MHZ CMOS SMD; CategoryPassive components; File Size920KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

7P-38.400MBP-T Overview

OSC TCXO 38.400MHZ CMOS SMD

7P-38.400MBP-T Parametric

Parameter Name	Attribute value
type	TCXO
frequency	38.4MHz
Function	-
output	CMOS
Voltage - Power	2.7 V ~ 5.5 V
frequency stability	±280ppb
Operating temperature	-40°C ~ 85°C
Current - Power (maximum)	10mA
grade	-
Installation type	surface mount
Package/casing	6-SMD, no leads
size/dimensions	0.197" long x 0.126" wide (5.00mm x 3.20mm)
Height - Installation (maximum)	0.059"（1.50mm）
Current - Power (disabled) (maximum)	-

Preview

Download Datasheet

View All

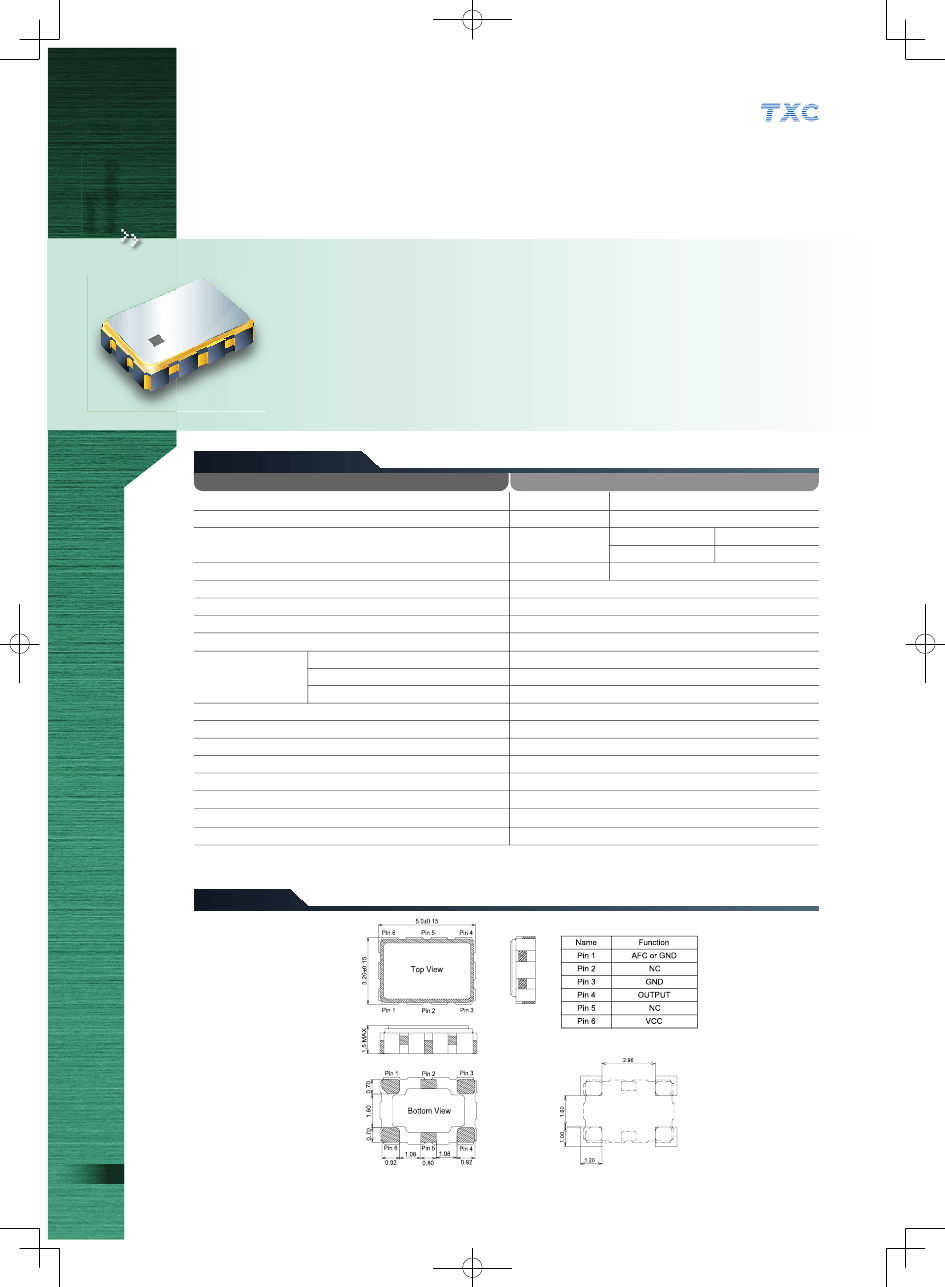

Precise SMD Temperature

Compensated Crystal Oscillators

5.0 x 3.2 x 1.5 mm 7P Series

Features

P0 01

．

High Stability Over Temperature:

0.1ppm~

0.28ppm

．

Operating Temperature Range: -40

℃

~85

℃

．

Holdover 24Hr:

0.32ppm (Option)

．

Free Run Stability for 20 years:

4.6ppm (Option)

．

Frequency: 10 ~ 52MHz

．

Supply Voltage: 2.7V ~ 5.5V

．

Voltage Control Function Available

．

Output Enable/Disable Function Available

．

Support Clipped Sinewave and CMOS Output Waveform

．

Application: Small Cell, Base Station, Networking Infrastructure

．

ROHS Compliant / Pb Free

Think of Frequency Think of

come visit our site http://www.txccorp.com

Oscillators

Series

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

Electrical Speciﬁcations

Item / Type

Output Type

Output Load

Output Voltage

Supply Current

Oscillation Mode

Supply Voltage

Frequency Range

Initial Frequency Tolerance at 25

℃

after 2 Reﬂows

Vs. Temperature ( - 40 ~ + 85

℃

)

Frequency Tolerance Vs. Load (

5 % )

Vs. Supply Voltage (

5 % )

Storage Temperature Range

Auto Frequency Control Range (Option)

Start-up Time

Harmonics

Phase Noise at 1KHz Offset

Aging

24 Hr Holdover Stability (Option)

[#1]

Free Run Stability for 20 Years (Option)

[#2]

Clipped Sinewave

10K

//10pF

0.8 Vp-p Min.

5 mA Max.

CMOS

15pF

Output Low (VOL)

Output High (VOH)

Fundamental

2.7 ~ 5.5 V

10 ~ 52 MHz

2.0 ppm

0.28 /

0.5 /

2.0 ppm

0.1 ppm Max.

0.1 * Vcc Max.

0.9 * Vcc Min.

10 mA Max.

-55 ~ +125

℃

5 ~

16 ppm (1.5

1 V)

2.5 ms Max.

-5 dBc Max.

-130 dBc/Hz

1 ppm / year Max.

40 ppb

4.6 ppm

[#1] 24 hours at constant temperature after 48 hours operation.

[#2] Inclusive of initial tolerance at 25

℃

, temperature, supply voltage

5%, load

5%, reﬂow soldering and ageing 20 years.

Dimensions

Pin Connection

Recommended Land Pattern

Units: mm

7P-38.400MBP-T Related Products

	7P-38.400MBP-T	7P-19.200MBP-T	7P-26.000MBP-T	7P-25.000MBP-T
Description	OSC TCXO 38.400MHZ CMOS SMD	OSC TCXO 19.200MHZ CMOS SMD	OSC TCXO 26.000MHZ CMOS SMD	OSC TCXO 25.000MHZ CMOS SMD
type	TCXO	TCXO	TCXO	TCXO
frequency	38.4MHz	19.2MHz	26MHz	25MHz
output	CMOS	CMOS	CMOS	CMOS
Voltage - Power	2.7 V ~ 5.5 V	2.7 V ~ 5.5 V	2.7 V ~ 5.5 V	2.7 V ~ 5.5 V
frequency stability	±280ppb	±280ppb	±280ppb	±280ppb
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Current - Power (maximum)	10mA	10mA	10mA	10mA
Installation type	surface mount	surface mount	surface mount	surface mount
Package/casing	6-SMD, no leads	6-SMD, no leads	6-SMD, no leads	6-SMD, no leads
size/dimensions	0.197" long x 0.126" wide (5.00mm x 3.20mm)	0.197" long x 0.126" wide (5.00mm x 3.20mm)	0.197" long x 0.126" wide (5.00mm x 3.20mm)	0.197" long x 0.126" wide (5.00mm x 3.20mm)
Height - Installation (maximum)	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）
