17308-4292 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 17308-4292

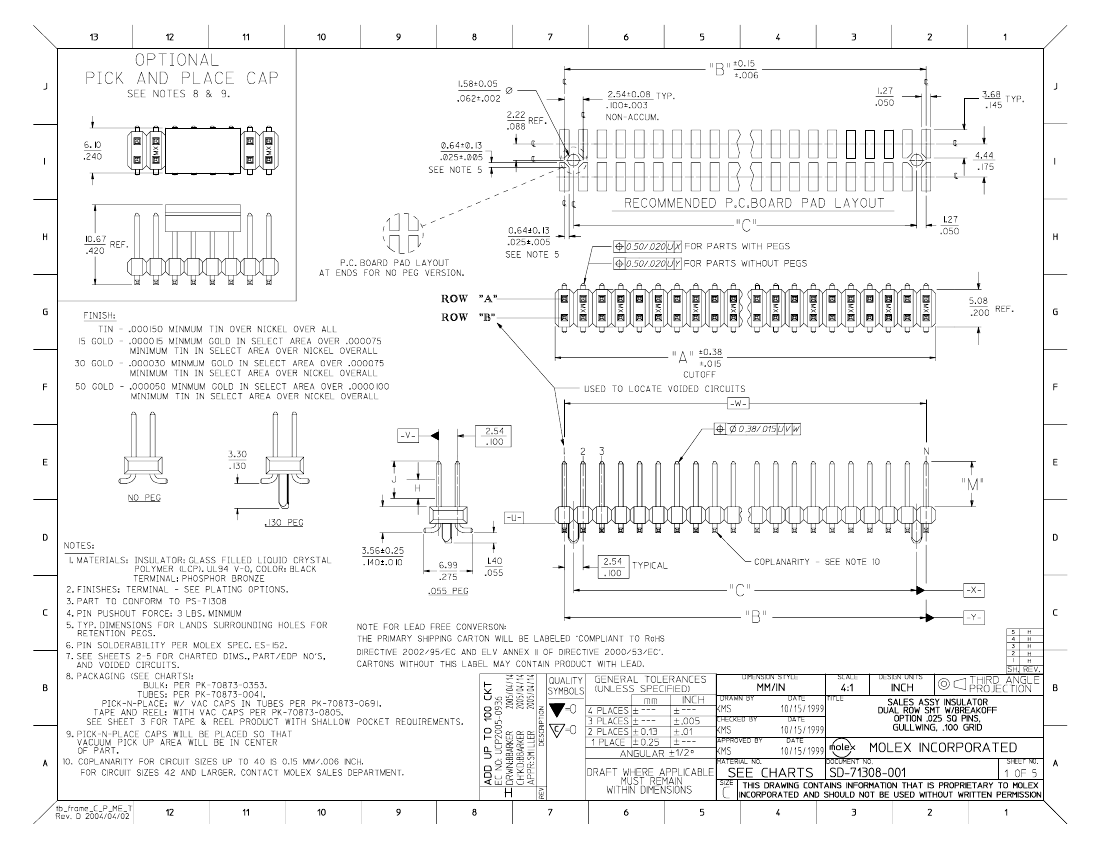

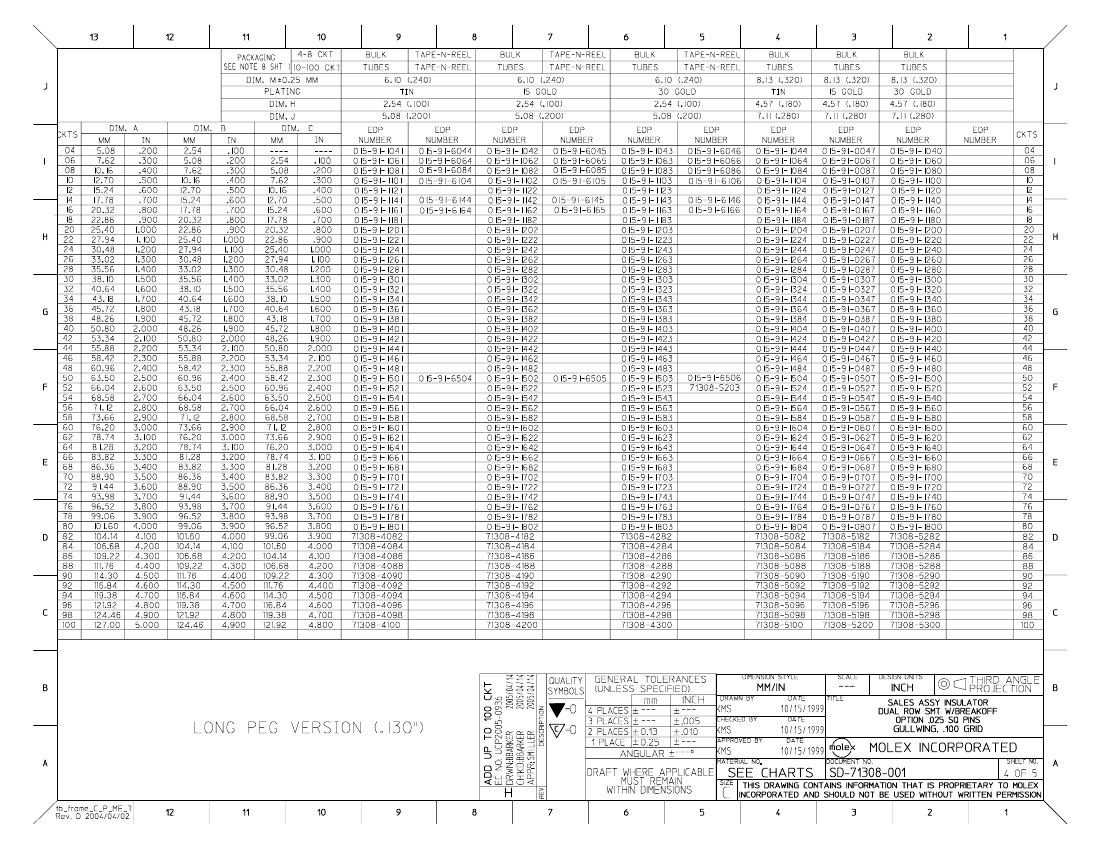

17308-4292: DescriptionBoard Connector, 92 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size338KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

17308-4292 Overview

Board Connector, 92 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

17308-4292 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	17308
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	92
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

17308-4292 Related Products

	17308-4292	17308-4288	17308-4290	17308-4294	17308-4296	17308-4298	17308-4300	17308-4282	17308-4284	17308-4286
Description	Board Connector, 92 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 88 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 90 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 94 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 98 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 82 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 86 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	17308	17308	17308	17308	17308	17308	17308	17308	17308	17308
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	92	88	90	94	96	98	100	82	84	86
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1	1
