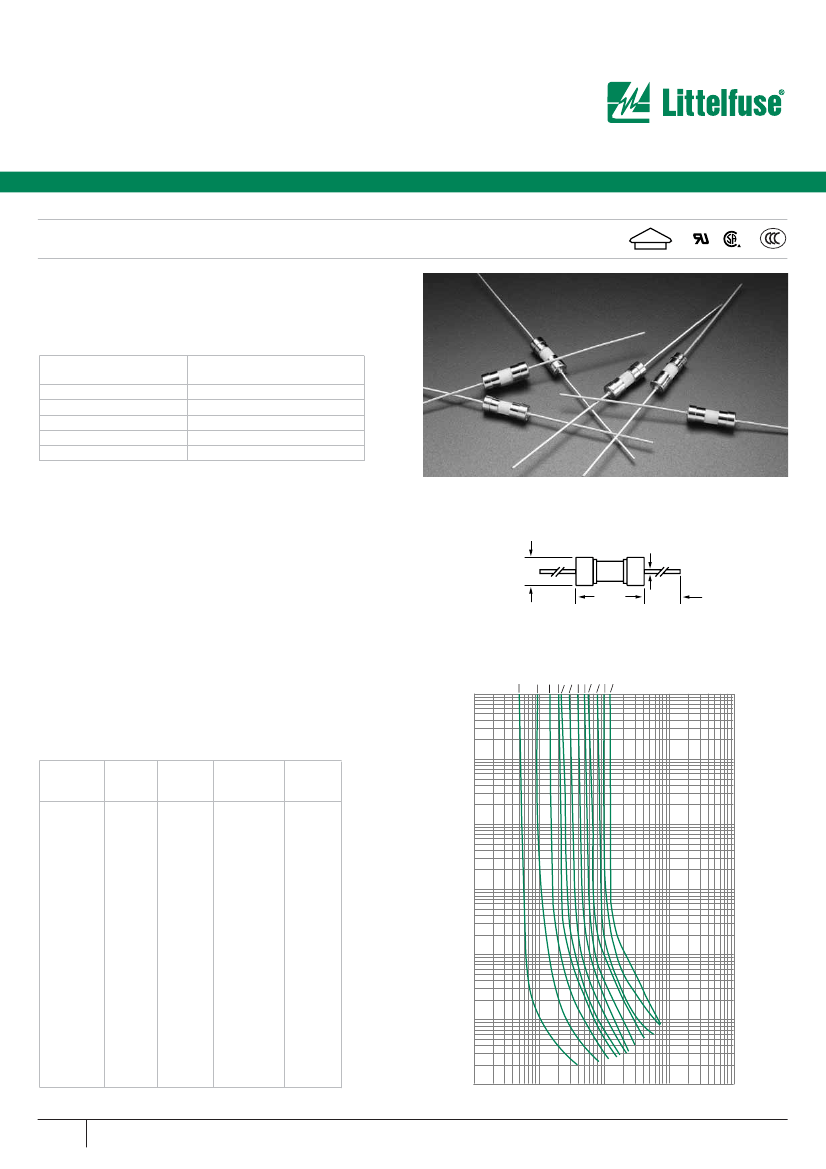

Axial Lead and Cartridge Fuses
Ceramic Body
3.6 x 10 mm
Fast-Acting Fuse 676 Series
• Meets the requirements of IEC 60127-3, Standard Sheet 3.
• Fast-Acting, ceramic body fuse in a compact package.
• This space saving fuse is ideally suited for lighting, power supply, and
adapter applications.
D
V
E
®
®
ELECTRICAL CHARACTERISTICS:
% of Ampere
Opening
Rating
Time
150%
210%
275%
400%
1000%
60 minutes, Minimum
30 minutes, Maximum
10 msec., Min.; 3 sec. Max.
3 msec., Min.; .3 sec. Max.
20 msec, Max.
AGENCY APPROVALS:
Recognized under the Components Program of Underwriters
Laboratories and recognized by CSA from 0.050 through 6.3 Amps.
VDE approved from 1 through 5 Amps. CCC approval pending
(1 through 5 Amps).
676
000
Series
0.6 (.024") ( 0.05 -4A)
0.8 (.031") (5 -6.3A)
3.9 (.153")
INTERRUPTING RATING:
35A or 10 x rated current, whichever is greater @ 250V AC
PACKAGING OPTIONS:
Please refer to the following suffixes when ordering:
Bulk (1000 pieces): Add MXE suffix to the catalog part number.
Tape and Reel (1500 pieces): Add DRT4 suffix to the catalog
part number.
30.0
(1.181") TYP.
Axial Lead Material: Solder coated copper.
11.0
(.433")
Average Time Current Curves
250mA
500mA
800mA
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
TAPE AND REEL SPECIFICATIONS:
Per EIA-296 with 10mm pitch and 56.5mm inside tape spacing.
1000
ORDERING INFORMATION:
Catalog
Number
0676.050
0676.063
0676.080
0676.100
0676.125
0676.160
0676.200
0676.250
0676.315
0676.400
0676.500
0676.630
0676.800
0676
001.
0676
1.25
0676
01.6
0676
002.
0676
02.5
0676
3.15
0676
004.
0676
005.
0676
06.3
Ampere
Rating
.050
.063
.080
.100
.125
.160
.200
.250
.315
.400
.500
.630
.800
1.00
1.25
1.60
2.00
2.50
3.15
4.00
5.00
6.30
Voltage
Rating
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Nominal
Resistance
Cold mOhms
9.400
6.900
4.700
3.300
2.300
1.700
0.500
0.390
0.285
0.195
0.150
0.105
0.083
0.063
0.053
0.042
0.032
0.025
0.019
0.014
0.010
0.006
Nominal
Melting i
2
t
A
2
Sec.
0.00050
0.00080
0.00100
0.00160
0.00790
0.0128
0.0200
0.0250
0.0300
0.112
0.130
0.202
0.320
0.450
0.750
1.79
3.01
5.15
8.55
14.6
20.4
33.8
100
10
TIME IN SECONDS
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
436
