MX34028NF1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> MX34028NF1

MX34028NF1: DescriptionCONN HEADER 2.2MM 28POS R/A; CategoryThe connector; File Size189KB，7 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric View All

MX34028NF1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MX34028NF1	-	-	View	Buy Now

MX34028NF1 Overview

CONN HEADER 2.2MM 28POS R/A

MX34028NF1 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.087"（2.20mm）
Number of pins	28
Number of rows	2
Line spacing - patching	0.118"（3.00mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	welding
Fastening type	Lock pin slide
Contact Length - Mating	0.303"（7.70mm）
Contact length - terminal	0.126"（3.20mm）
Overall contact length	-
Insulation height	0.626"（15.90mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Syndiotactic polystyrene (SPS), glass filled
characteristic	Mounting flange
Operating temperature	-40°C ~ 85°C
Intrusion protection	-
Material flammability rating	-
Insulation color	grey
Rated current	3A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	Automotive grade

Preview

Download Datasheet

View All

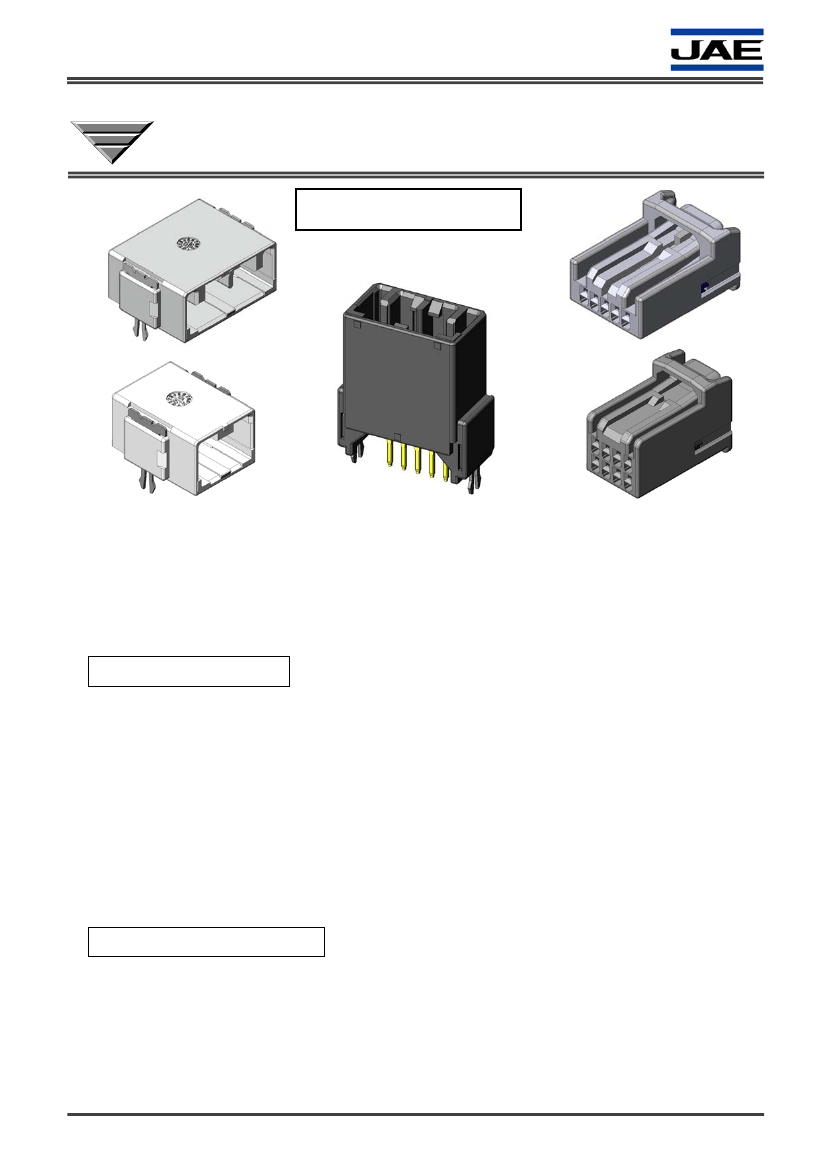

COMPONENTS PRODUCT INFORMATION

NEW

Compact Automotive Connectors for PCB-to-Cable Applications CONNECTOR

MB-0175-1

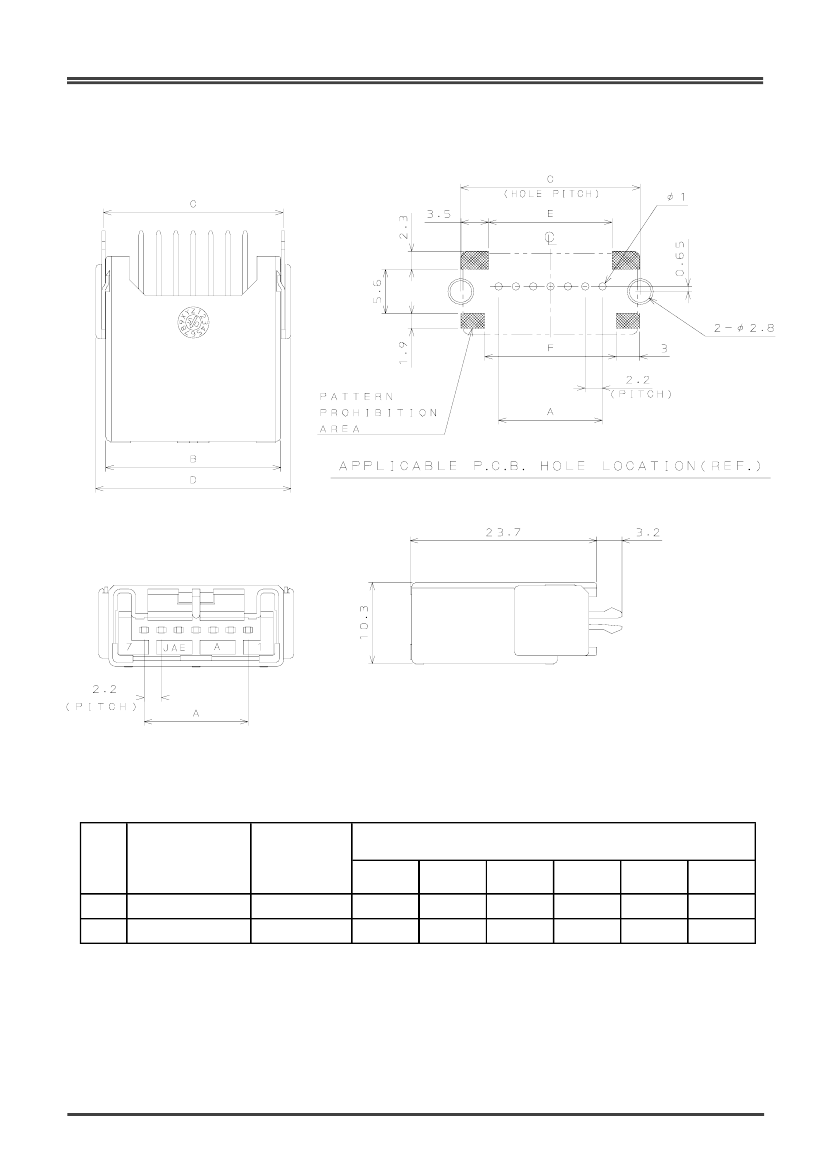

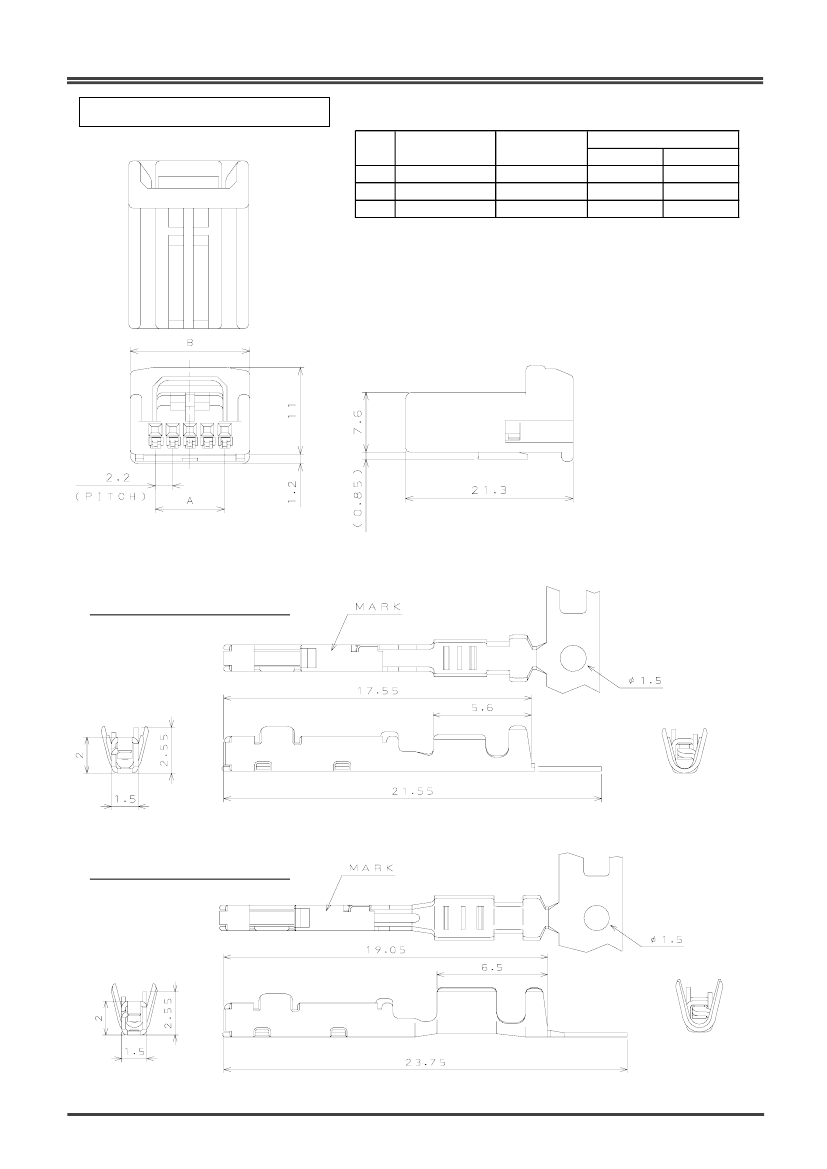

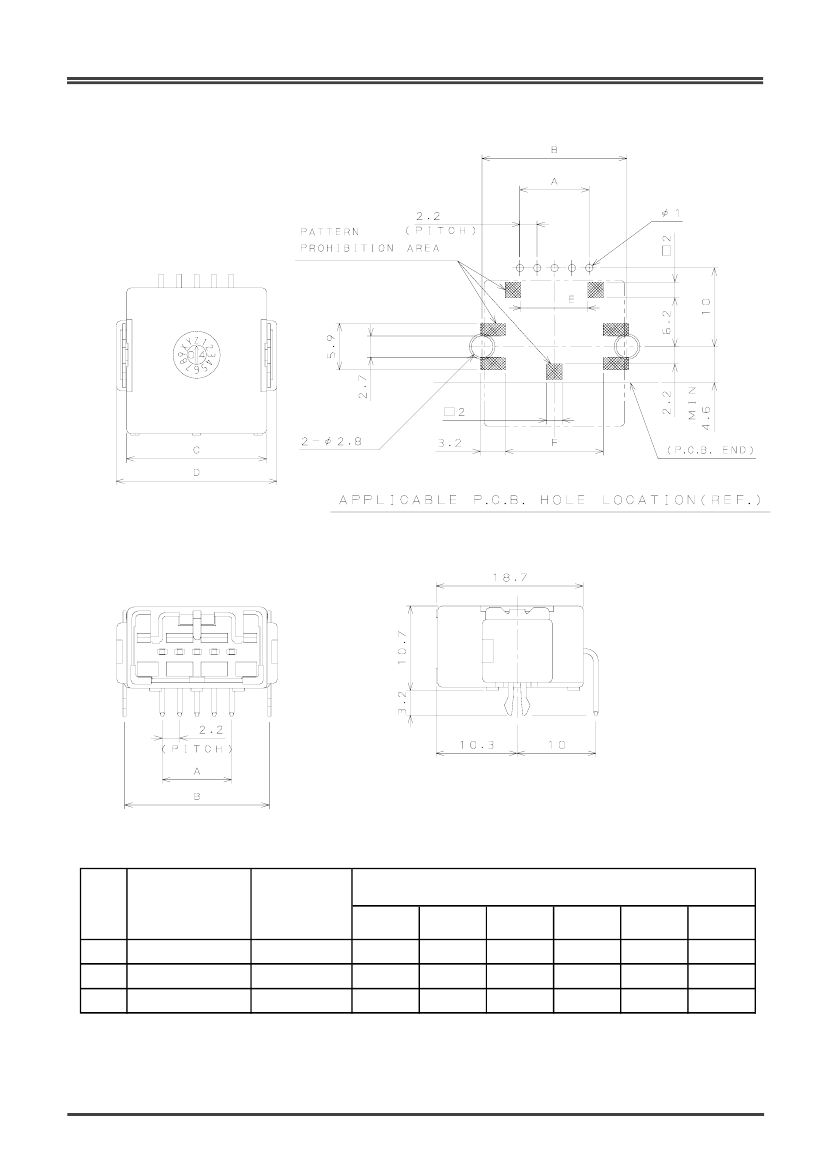

MX34 Series

(for Low Pin Counts)

RoHS　Compliant

October 2007

Compact, single row type connectors have been developed to add to the existing line

of MX34 Series connectors for automobiles.

The available pin counts are 3, 5 and 7 positions, available in straight and angle pin

header type. (Straight type is available in 5 and 7 positions)

Hook pins are placed on both sides for easier board attachment. An 8 position,

double row type has also been developed.

Features

•Compact, single row PCB-to-cable connector with 2.2 mm horizontal pitch.

(8 pos. is available in double row, 2.4mm pitch)

•Hook pins are placed on both sides for easier board attachment.

•Socket contact with box-type pin header is durable in external forces; contact is

highly resistant to twisting and equipped with a proven double leaf spring.

(In common with MX34 Series double row type)

• Adoption of a preset-type retainer facilitates easy wire harness operation.

If retainer is not completely inserted in housing, the connector is not engaged,

and incomplete contact insertion is detected.

•Lock spring is equipped with a bridge protecting the contacts from external load.

General Specifications

•No. of contacts: Single row 3, 5, 7 pos.

Double row 8 pos.

•Contact resistance:

5m ohm max. (initial)

•Dielectric withstanding voltage:

AC 1000V (per minute)

•Operating temperature:

-40 Deg. C to +85 Deg. C

1/6

•Rated current: 3A

•Insulation resistance: 100M ohm min

•Durability: 50 times

•Applicable wire:

Please refer to next page
