0677.800 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0677.800

0677.800: DescriptionAxial Lead and Cartridge Fuses - Ceramic Body; CategoryCircuit protection Circuit protection; File Size35KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0677.800 Overview

Axial Lead and Cartridge Fuses - Ceramic Body

0677.800 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Fusing characteristics	SLOW
body height	11 mm
Body length or diameter	3.9 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e0
Joule integral nominal	3 J
Installation features	THROUGH HOLE
physical size	3.9mm x 11mm
Rated breaking capacity	35 A
Rated current	0.8 A
Rated voltage (AC)	250 V
Guideline	CCC; CSA; IEC; UL; VDE
surface mount	NO
Terminal surface	TIN LEAD
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

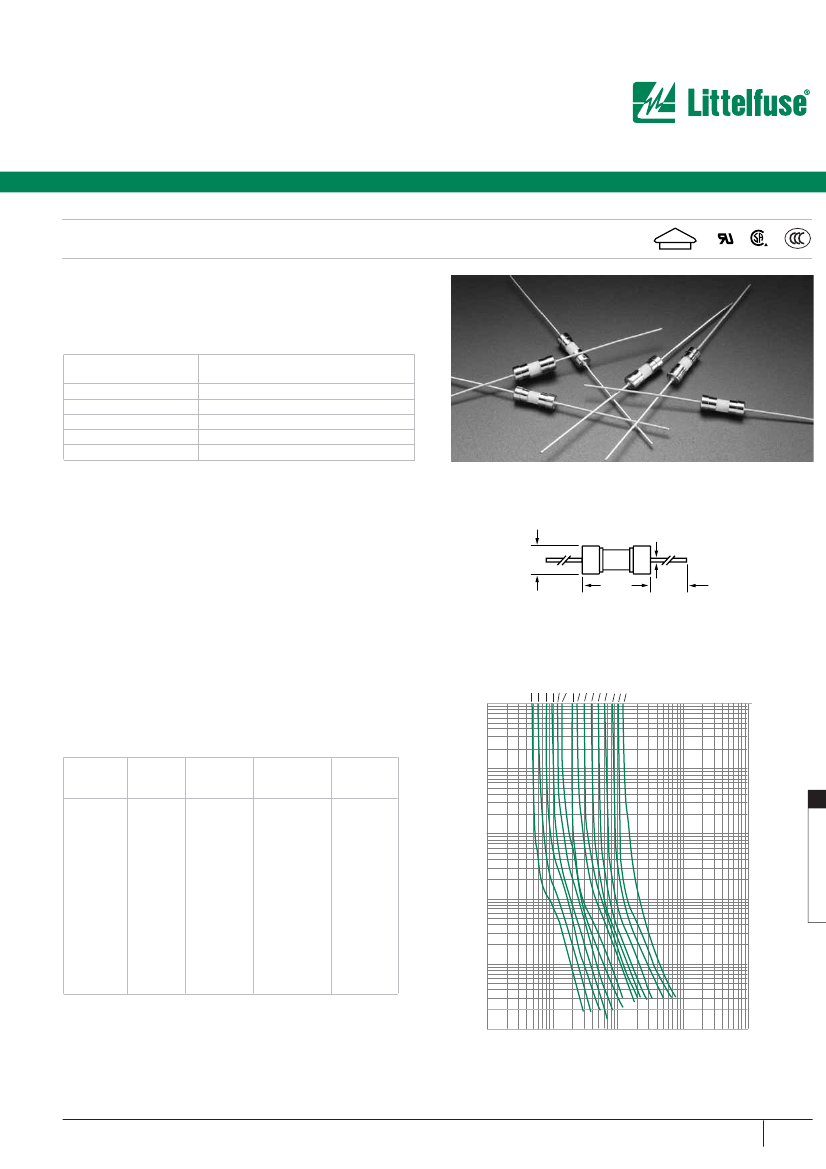

Axial Lead and Cartridge Fuses

Ceramic Body

3.6 x 10 mm

Slo-Blo

Fuse 677 Series

• Meets the requirements of IEC 60127-3, Standard Sheet 4.

• Slo-Blo, ceramic body fuse in a compact package.

• This space saving fuse is ideally suited for lighting, power supply, and

adapter applications.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Opening

Rating

Time

150%

210%

275%

400%

1000%

60 minutes, Minimum

2 minutes, Maximum

400 msec., Min.; 10 sec. Max.

150 msec., Min.; .3 sec. Max.

20 msec., Min.; 150 msec Max.

AGENCY APPROVALS:

Recognized under the Components Program of Underwriters

Laboratories and recognized by CSA from 0.250 through 6.3 Amps.

VDE approved from 0.250 through 6.3 Amps. CCC approval pending

(0.250 through 6.3 Amps).

677

000

Series

0.6 (.024") ( 0.250 -4A)

0.8 (.031") (5 -6.3A)

3.9 (.153")

INTERRUPTING RATING:

35A or 10 x rated current, whichever is greater @ 250V AC

PACKAGING OPTIONS:

Please refer to the following suffixes when ordering:

Bulk (1000 pieces): Add MXE suffix to the catalog part number.

Tape and Reel (1500 pieces): Add DRT4 suffix to the catalog

part number.

11.0

(.433")

30.0

(1.181") TYP.

Axial Lead Material: Solder coated copper.

Average Time Current Curves

250mA

315mA

400mA

500mA

630mA

800mA

1.25A

1.6A

2.5A

3.15A

6.3A

TAPE AND REEL SPECIFICATIONS:

Per EIA-296 with 10mm pitch and 56.5mm inside tape spacing.

1000

ORDERING INFORMATION:

Catalog

Number

0677.250

0677.315

0677.400

0677.500

0677.630

0677.800

0677

001.

0677

1.25

0677

01.6

0677

002.

0677

02.5

0677

3.15

0677

004.

0677

005.

0677

06.3

Ampere

Rating

.250

.315

.400

.500

.630

.800

1.00

1.25

1.60

2.00

2.50

3.15

4.00

5.00

6.30

Voltage

Rating

250

Nominal

Resistance

Cold mOhms

0.630

0.460

0.360

0.310

0.178

0.125

0.092

0.065

0.048

0.035

0.028

0.020

0.016

0.014

0.009

Nominal

Melting i

Sec.

0.312

0.422

0.755

1.32

2.55

3.25

6.95

12.1

18.2

20.8

32.5

40.8

95.0

140

240

100

TIME IN SECONDS

0.1

0.01

0.1

CURRENT IN AMPERES

100

1000

w w w. l i t t e l f u s e . c o m

437

AXIAL LEAD AND
