Dialight's HL16 RGB modules feature individually controllable red, green
and blue LEDs complete with heatsink housing. Comparable to a
traditional MR16 size, the HL16 RGB modules allow the ability to create
infinite numbers of colours with dynamic colour changing effects. The
modules can also be easily retrofitted into existing MR16 housings.

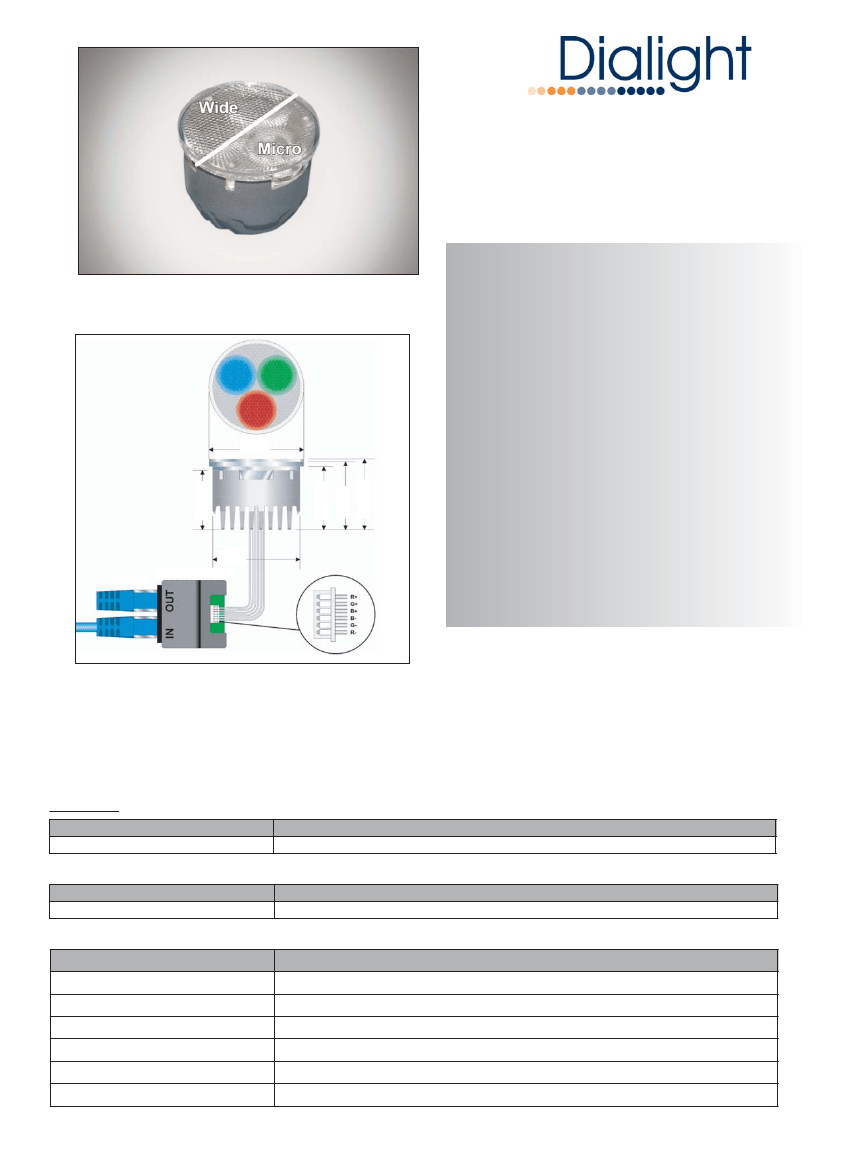

Mechanical Information:
HL16 RGB LED
LIGHT ENGINE
Container Dimensions:
Diameter = 50.0mm (1.97”)
Height = 36.0mm (1.42”), 37.5mm
(1.48”) with sub lens attached
Lead length = 150mm (5.91
94g
MR16 type housings
(supplied by others)
Container Weight:
Mounting:
Electrical specifications:
40mm
Operating Temperature:
33.5mm
37.5mm
-10ºC to +40ºC
350ma
Die cast heatsink
Acrylic lens
31.5mm
Drive Current:
Housing:
Lens:
46mm
RJ45-C
RJ45-CONN-ASSY
36mm
Photometric Information:
Lumen Output (Typ):
Red - 32lm
Blue - 24lm
Green - 42lm
Features & Benefits:
w
Ability to create infinite numbers of colors or dynamic color
changing effects
w
Easy retrofit to existing MR16 fixtures
w
Sub-lenses included for choice of light distribution
w
Long life of 50,000hrs at 70ºC PCB temperature
Order Codes:
Part Number
HL16-RGB
Ordering Codes: Compatible Drivers
Part Number
CDU-L-3-35-DMX
Ordering Codes: Cables and Accessories
Part Numbers
RJ45F-MLXM
RJ45-CON-ASSY
RJ45-C
RJ45-2
RJ45-5
RJ45-10
Description
Molex to female RJ45 connector (connects to output on CDU-L-3-35-DMX driver)
RJ45 interface connector (x1 required per HL16-RGB module)
End Termination
2 metre RJ45 male to male cable
5 metre RJ45 male to male cable
10 metre RJ45 male to male cable
LED light Engine
Description
Description
Minimum of 5 and maximum of 12 HL16-RGB modules
www.dialight.com
Operating Characteristics
Wide Optic
Spot Optic

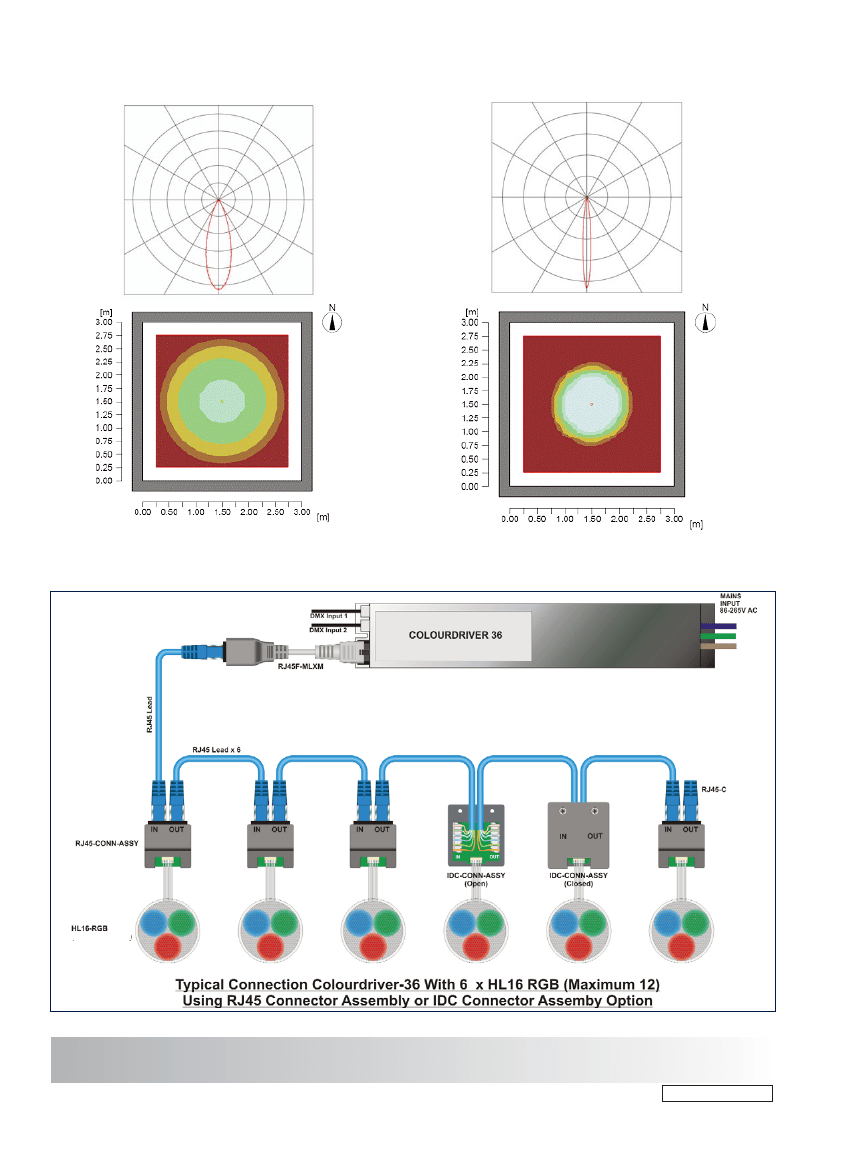

Typical Wiring Examples
(Min. 5 to Max. 12)
(Min. 5 to Max. 12)
Dialight reserves the right to make changes at any time in order to supply the best product possible.
The most current version of this document will always be available at:
www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXLUMHL16RGB.pdf
MDEXLUMHL16RGB_C
