Metral 5 Row 1000 & 2000 Series Right Angle Receptacle Insertion Tooling
The top tool is a modified “flat rock” press bar with side plates to support the ground shield during
insertion.
The bottom tool serves as a board support during insertion and is cleared out in the areas that the tails
come through the PCB.

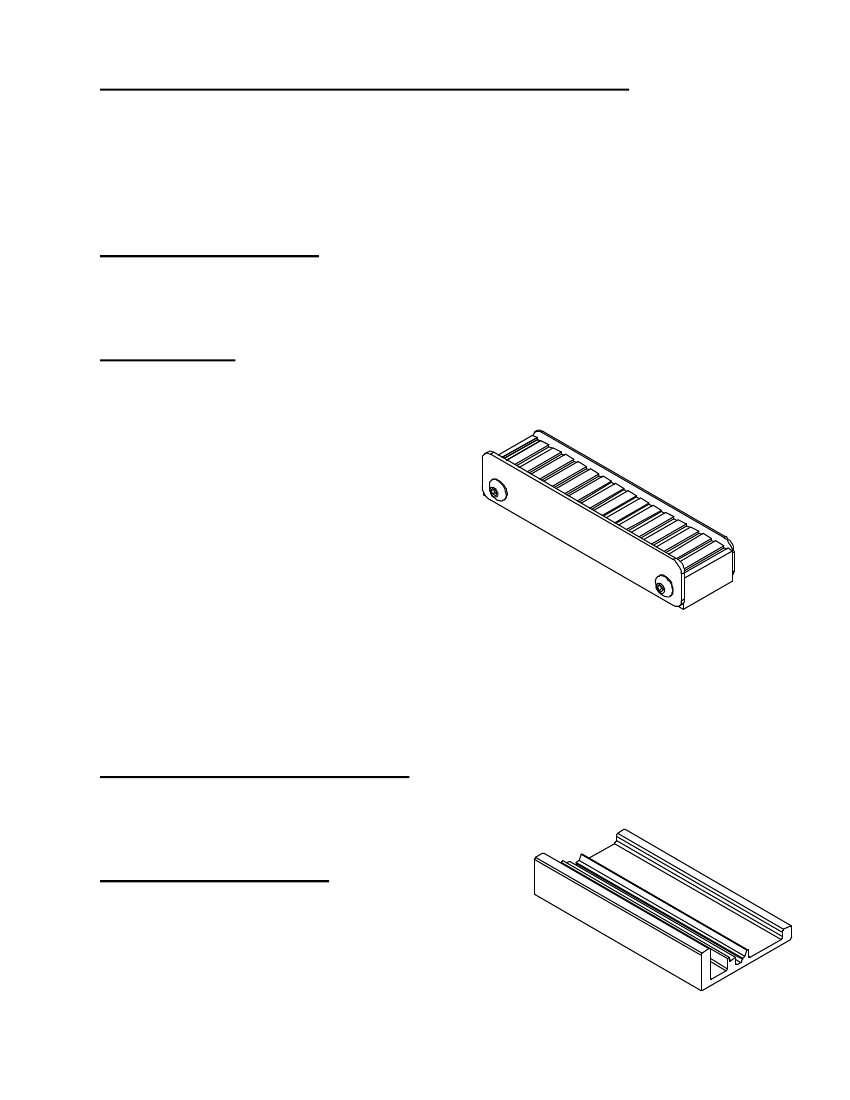

Top Tool Press Bar 415754-5xx
If all of the Metral modules that are to be inserted are stacked end to end you can use a standard press
bar. If you have groups of Metral connectors and then a space other than an even increment of 12mm
then you will need a custom top tool.
Standard Top Tools
415754-502
415754-503
415754-504
415754-505
415754-506
415754-507
415754-508
415754-509
415754-510
415754-511
415754-512
415754-513
415754-514
415754-515
415754-516
415754-517
415754-518
415754-519
415754-520
415754-521
2 (12mm) Modules
3 (12mm) Modules
4 (12mm) Modules
5 (12mm) Modules
6 (12mm) Modules
7 (12mm) Modules
8 (12mm) Modules
9 (12mm) Modules
10 (12mm) Modules
11 (12mm) Modules
12 (12mm) Modules
13 (12mm) Modules
14 (12mm) Modules
15 (12mm) Modules
16 (12mm) Modules
17 (12mm) Modules
18 (12mm) Modules
19 (12mm) Modules
20 (12mm) Modules
21 (12mm) Modules
Board Supports (Bottom Tools) 162383-XXX
Some Metral users prefer to develop their own board supports or use a PCB with oversized holes.
Either of these practices is acceptable but FCI also offers bottom tools for those customers who prefer
factory tooling. The bottom tools can be cut to the length needed.
STANDARD BOTTOM TOOLS
162383-001
162383-002
162383-003
162383-004
162383-005
07/21/00
146.8mm
194.8mm
302.8mm
457.2mm
609.6mm
Length
5.780 inches
7.669 inches
11.921 inches
18.000 inches
24.000 inches
Page 1 of 2
5 Row Rt Angle 1000 Series Recep Insert Tool

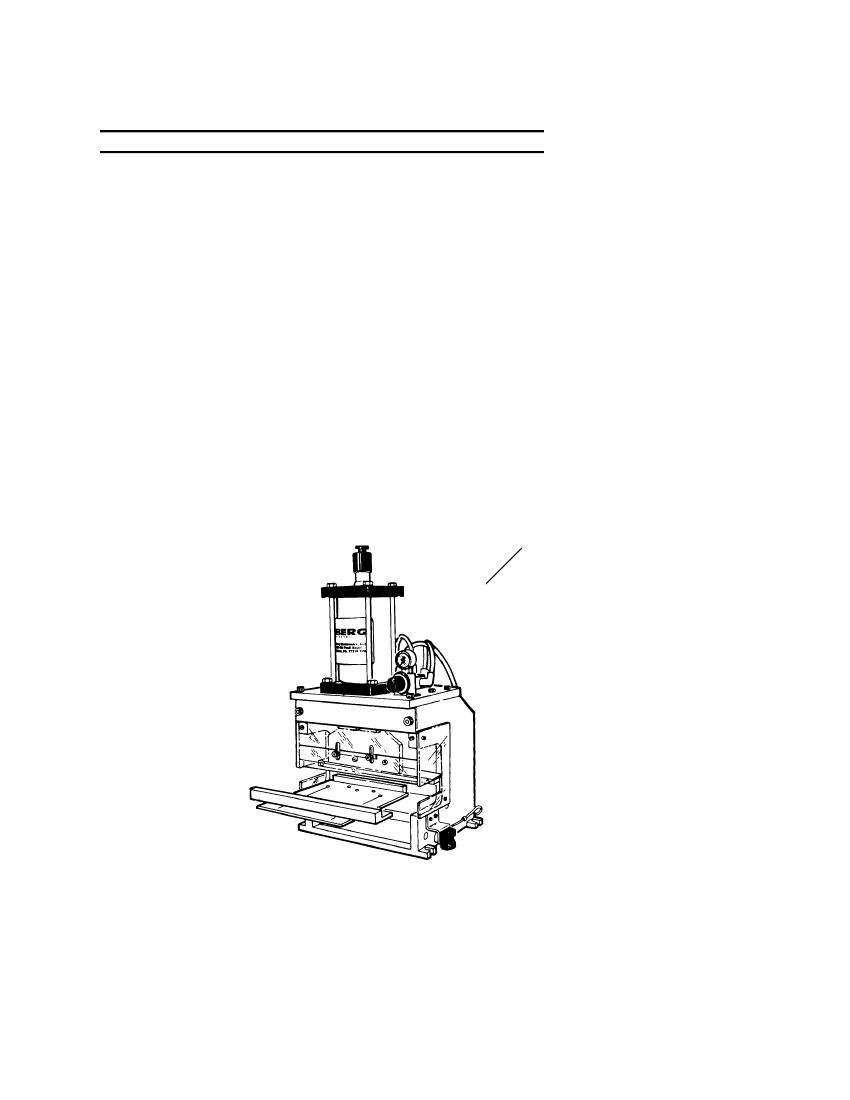

MT-511 1000 Series Insertion Press P/N 166380-009 (110VAC)
MT-511 1000 Series Insertion Press P/N 166380-010 (220VAC)
The MT-511-1000 Series Insertion Press is a semi-automatic bench top machine designed to terminate
Metral Press Fit 1000 Series Right Angle Receptacles. The MT-511 1000 Series machine is
pneumatically powered and electronically/pneumatically controlled. The MT-511 1000 Series Press
can terminate Metral 1000 Series Press Fit Right Angle Receptacles one at a time or any number up to
12 modules (1 module = 5x6) per press cycle. The press has an adjustable pressure control to allow
force adjustment from 1000 lbs to 8000 lbs.
The MT-511 1000 Series Press has the capability to terminate 1000 Series Metral connectors on a
printed circuit board ranging in size from 4 inches (100 mm) x 18 inches (460 mm) up to 14 (360 mm) x
18 inches (460 mm).
In addition you must also purchase top tooling 415754 (previous page) that is the correct length for
your application.
MT-511-1000 Series
07/21/00
5 Row Rt Angle 1000 Series Recep Insert Tool
Page 2 of 2
