0639013570 Overview

TOOL KIT

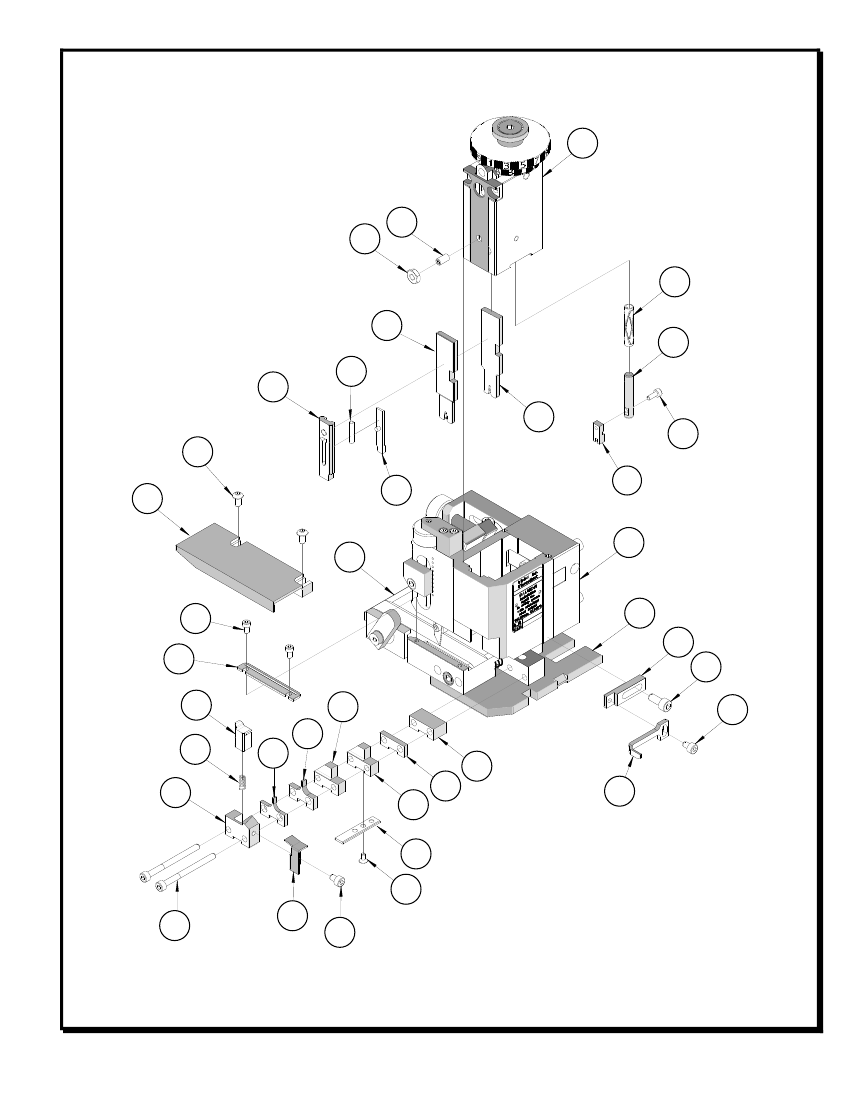

Fine Adjust Applicator for CTX280 Receptacle Terminals
FineAdjust Applicator

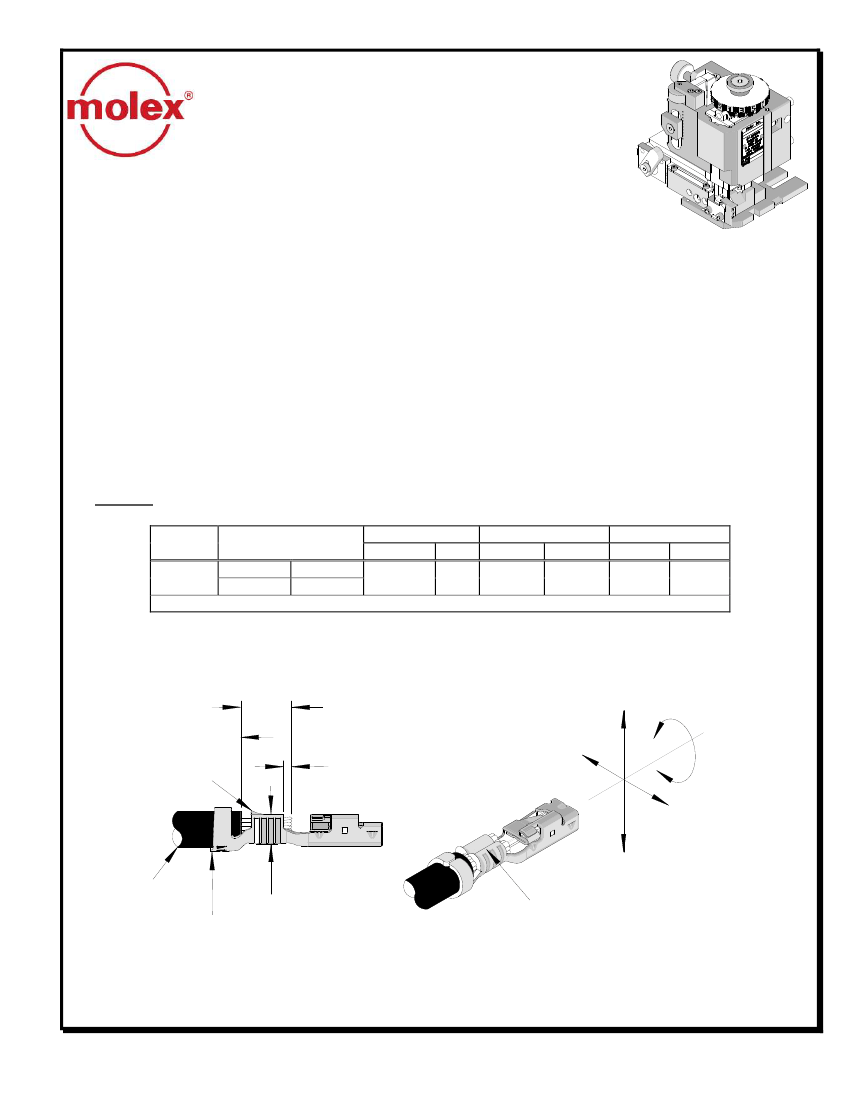

Applicator Tooling Specification Sheet
Order No. 63901-3500
FEATURES
Quick punch removal with the push of a button for fast and easy tooling change
Applicator designed to industry standard mounting and shut height 135.80mm (5.346")
Quick set-up time; plus the crimp height, track and feed adjustments can be set without removing the applicator
from the press
Fine adjustment allows users to achieve target with little effort by adjusting in increments of .015mm (.0006") for
conductor crimp height and .063mm (.0025") for insulation height
Independent adjustment rings allow users to quickly adjust the conductor or insulation crimp height without
affecting each other
Directly adapts to most automatic wire processing machines
SCOPE
Products: CTX280 Receptacle Terminals: >2.0 - 3.0 mm
2
metric, type ISO wire.
Terminal
Series No.
98675
Terminal
Wire Size and Type
Insulation Diameter
Strip Length
Order No.
mm²
Type
mm
In.
mm
In.
98675-0003 98675-0013
>2.0 – 3.0
ISO 2.70-3.40 .106-.134 4.30-4.80 .169-.189
98675-0023 98675-0033
See crimp specification for the individual Insulation Diameter.
DEFINITION OF TERMS
BEND UP
STRIP LENGTH
TWISTING
BELL MOUTH
CONDUCTOR
BRUSH
ROLLING
WIRE
CONDUCTOR
CRIMP
CUT-OFF
TAB
SEAM
BEND
DOWN
Doc No. ATS-639013500
Revision: B
Release Date: 08-25-09
Revision Date: 12-11-09
UNCONTROLLED COPY
Page 1 of 5
