Appliance Tester/Power Analyzer
Compact, battery operated device for analyzing AC power loads
With PC interface plus datalogging
Features:
•
Four simultaneous displays of Watts,
Power Factor or VA, Voltage or Hz, Amps
•
True RMS Voltage & Current measurements
of sine, square, triangular and distorted
wave forms with a crest factor < 5
•
Max, Data Hold and Overload Protection
•
Battery or AC adaptor provides line isolation
•
Plug device to be tested
directly into the Power Analyzer
•
Sampling (update) rate is 2.5 times/second
•
Windows
®
95/98/NT/2000/XP/ME software
allows user to download stored data or save
data directly, and to create an ASCII file.
Computations include phase angle,
apparent and reactive power, consumption
and cost, and power factor correction
•
Complete with Windows compatible
software, cable, 8 x AA batteries,
power cord, 117 VAC adaptor and case
Applications:
•
Measure and Audit power consumption of
single phase devices
•
Evaluate load performance under varying
line conditions
•
Demonstrate effectiveness of
power conservation efforts
•
Characterize device AC power
requirements
Software included to
download and store data
to a PC
Built-into heavy duty
carrying case.

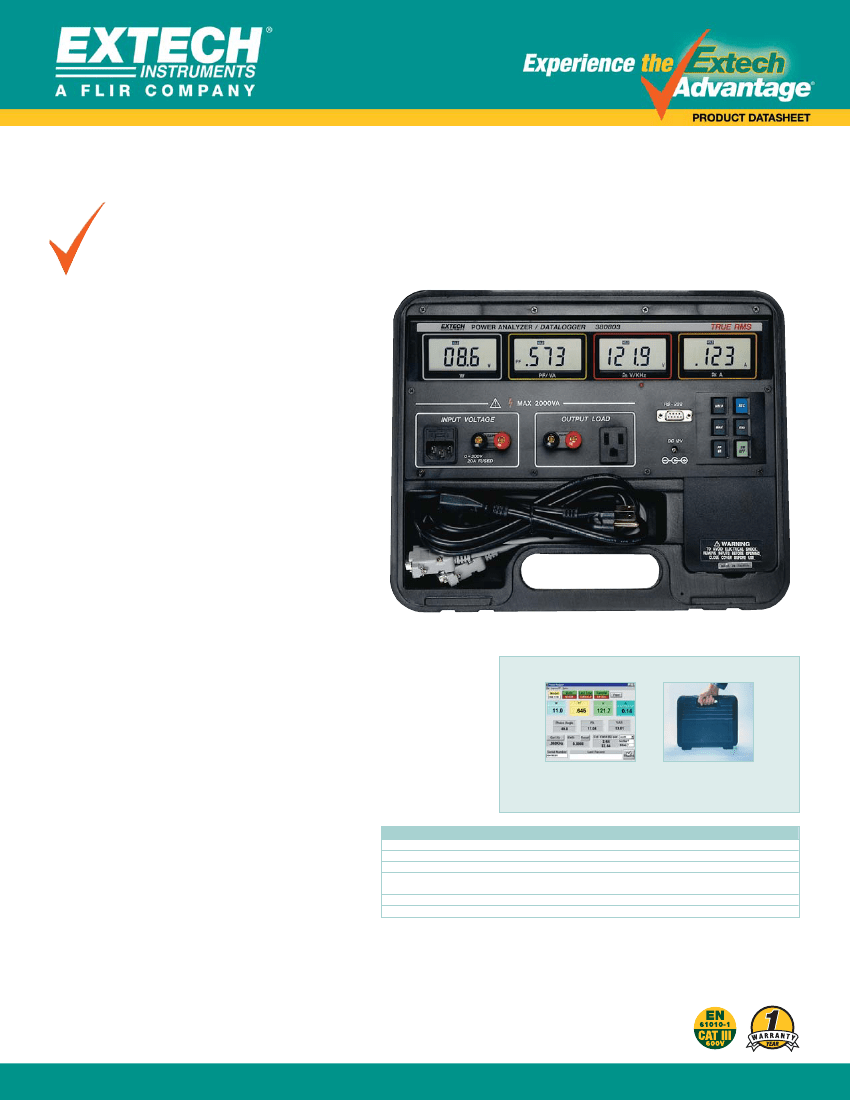

Model 380803 Datalogger
•
Built-in Datalogger stores up to 1,012 readings
(Single record storage or continuous datalogging)
Specifications:
Watt
Power Factor
Voltage
Current
Frequency
Dimensions/Weight
Model 380801
•
Used for data acquisition when connected to a PC
Range
Resolution
Basic Accuracy (%rdg)
200/2000W
0.1/1W
±(0.9% + 4d)@50/60Hz
0.5 to 1.0
0.001
(Based on W, V, A)
200.0/750V
0.1/1V
±(0.5%)
2/20A via terminals
±(0.5%)
2/15A via sockets
40Hz to 20kHz
1Hz to 10Hz
±(0.5%)
13.9 x 11.8 x 3.9" (352 x 300 x 100mm) / 3.6 lbs. (1.6 kg)
Input Signal Range
300V, 20A, 40-400Hz
250V, 20A, 50/60Hz
750VAC
(Fuse Protection)
Ordering Information:
380801
..............True RMS Single Phase Power Analyzer
380801-NIST
......380801 with Calibration Traceable to NIST
380803
..............True RMS Power Analyzer Datalogger
380803-NIST
......380803 with Calibration Traceable to NIST
USB100
..............RS-232 to USB Adaptor
www.extech.com
Specifications subject to change without notice.
7/27/10 - R1
