D7V0S1U2WS-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> D7V0S1U2WS-7

D7V0S1U2WS-7: DescriptionTVS DIODE 7V 15.5V SOD323; CategoryCircuit protection; File Size274KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

D7V0S1U2WS-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D7V0S1U2WS-7	-	-	View	Buy Now

D7V0S1U2WS-7 Overview

TVS DIODE 7V 15.5V SOD323

D7V0S1U2WS-7 Parametric

Parameter Name	Attribute value
type	Zina
One way channel	1
Voltage - Reverse OFF (Typical)	7V (maximum)
Voltage - Breakdown (minimum)	7.5V
电压 - 箝位（最大值）@ Ipp	15.5V

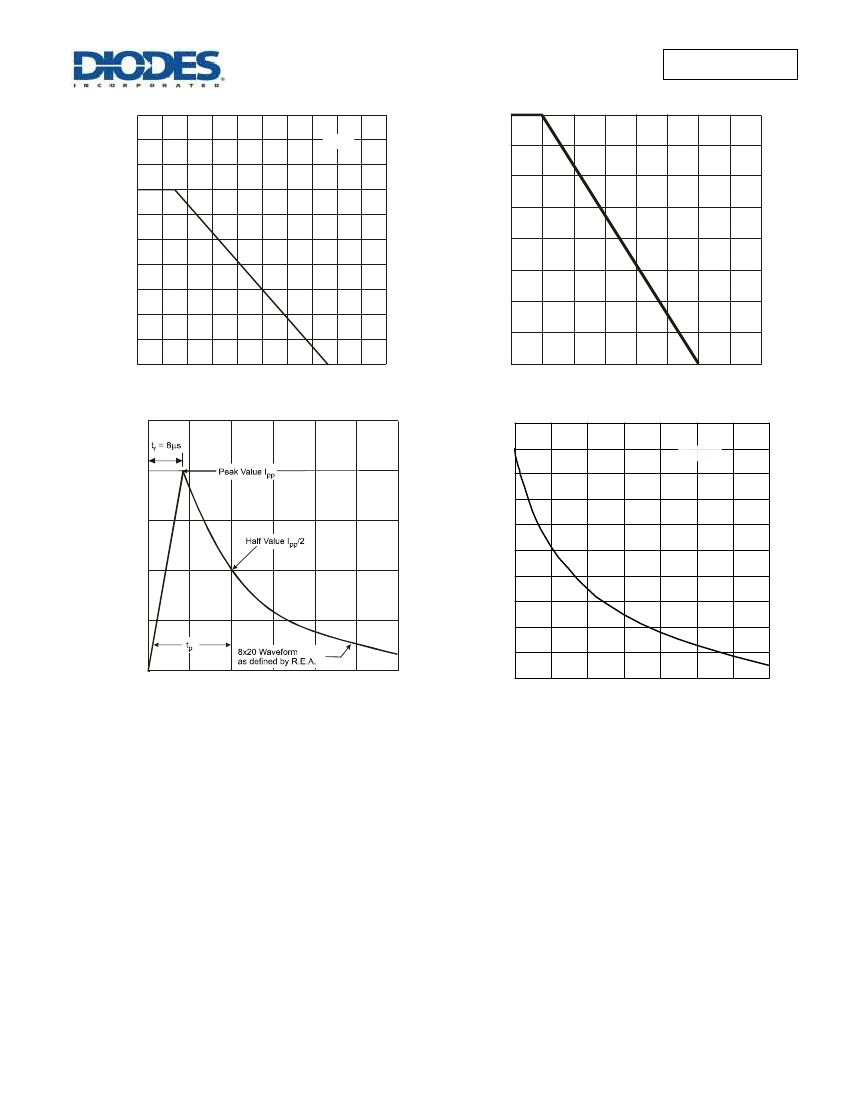

Current - Peak Pulse (10/1000µs)	90A（8/20µs）
Power - Peak Pulse	1400W（1.4kW）
Power line protection	none
application	Universal
Capacitance at different frequencies	750pF @ 1MHz
Operating temperature	-65°C ~ 150°C（TJ）
Installation type	surface mount
Package/casing	SC-76，SOD-323
Supplier device packaging	SOD-323

Preview

Download Datasheet

View All

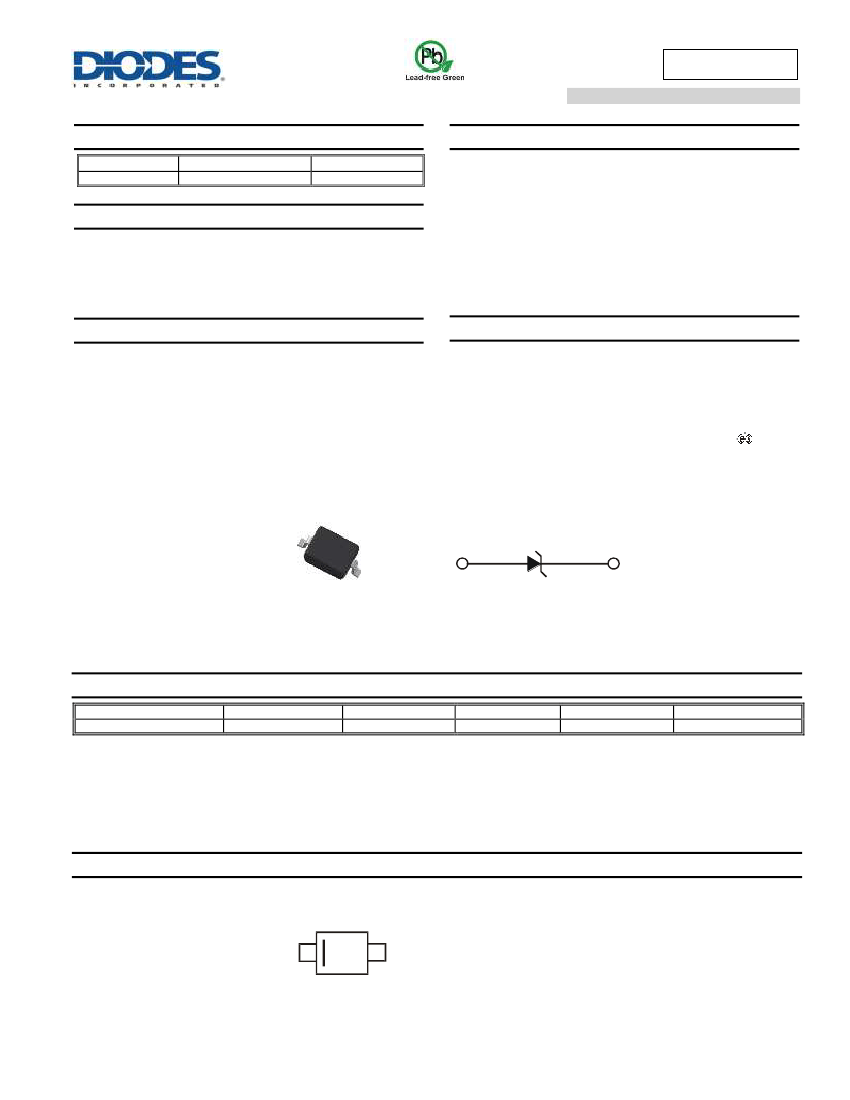

D7V0S1U2WS

1 CHANNEL UNIDIRECTIONAL TVS

Product Summary

BR MIN

7.5V

PP MAX

90A

IN TYP

750pF

Features



Provides ESD Protection per IEC 61000-4-2 Standard:

Air ±30kV, Contact ±30kV

1 Channel of ESD Protection

Low Channel Input Capacitance

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Description

This new generation TVS is designed to protect sensitive electronics

from the damage due to ESD. The combination of small size and high

ESD surge capability makes it ideal for use in portable applications

such as cellular phones, digital cameras, and MP3 players.

Applications



Cellular Handsets

Portable Electronics

Computers and Peripheral

Mechanical Data



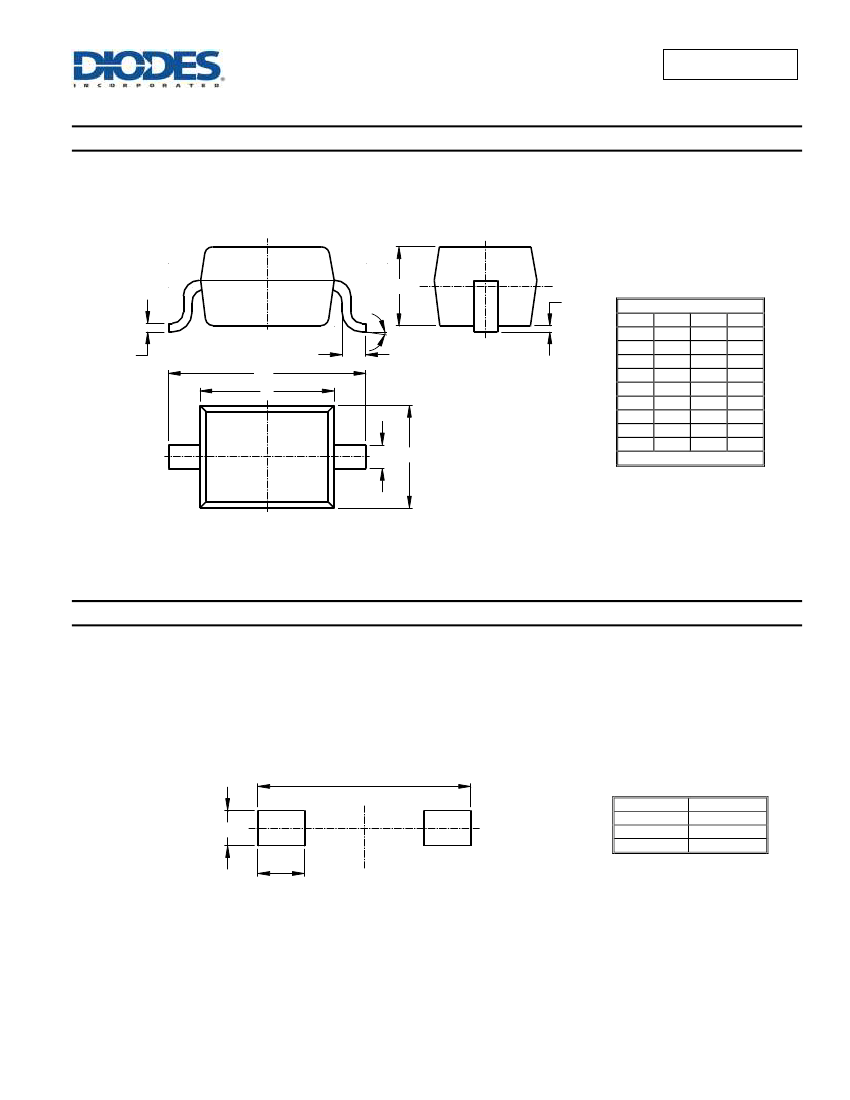

SOD323

Case: SOD323

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Matte Tin Finish Annealed Over Alloy 42 Leadframe (Lead Free

Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.004 grams (Approximate)

Pin 2

Pin 1

Top View

Device Schematic

Ordering Information

(Note 4)

Product

D7V0S1U2WS-7

Notes:

Compliance

Standard

Marking

Q13

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

3,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

Q13

Q13 = Product Type Marking Code

Line Denotes Pin 1

D7V0S1U2WS

Document number: DS38366 Rev. 1 - 2

1 of 5

www.diodes.com

May 2017

D7V0S1U2WS

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

D7V0S1U2WS

Document number: DS38366 Rev. 1 - 2

5 of 5

www.diodes.com

May 2017
