501R18N681KV4E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 501R18N681KV4E

Preview

501R18N681KV4E: DescriptionHI V MLCC 1206,680PF,10%,500V; CategoryPassive components capacitor; File Size62KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric Compare View All

501R18N681KV4E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	501R18N681KV4E	-	-	View	Buy Now

501R18N681KV4E Overview

HI V MLCC 1206,680PF,10%,500V

501R18N681KV4E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Johanson Dielectrics
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.7 mm
JESD-609 code	e3
length	3.17 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	500 V
size code	1206
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.57 mm
Base Number Matches	1

Preview

Download Datasheet

View All

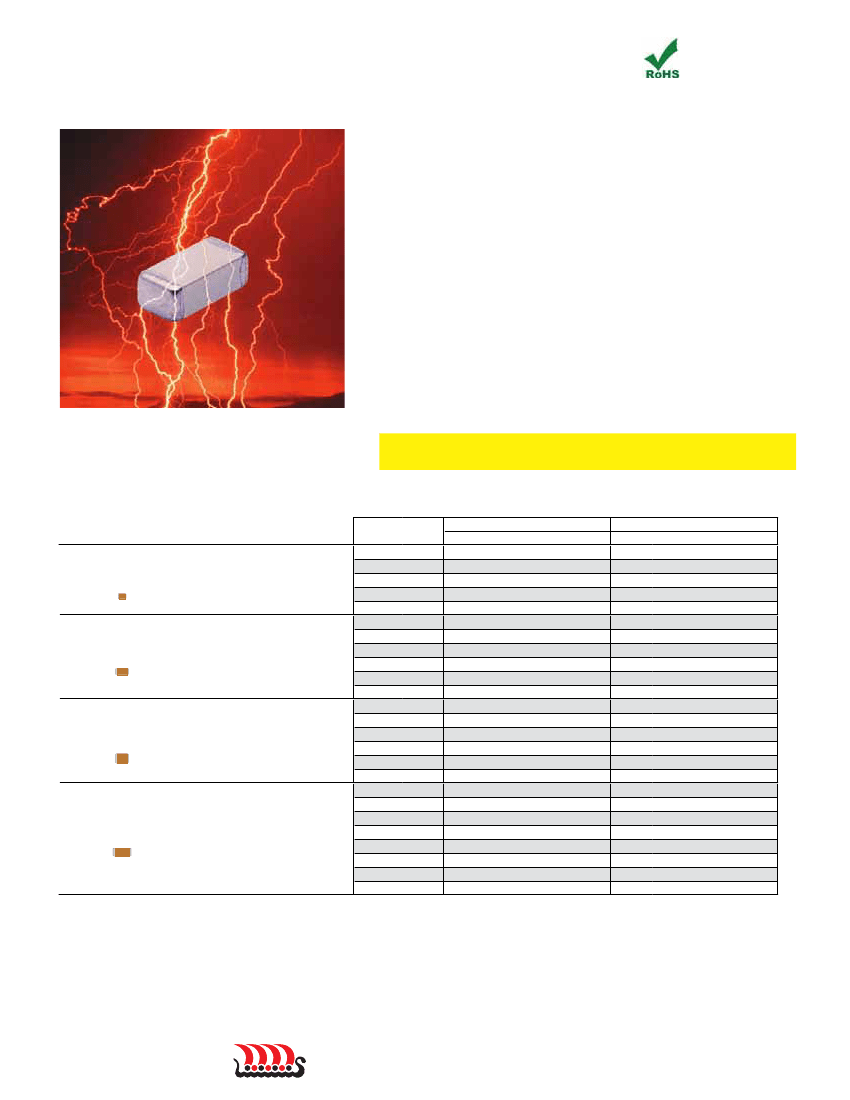

H

IGH

V

OLTAGE

S

URFACE

MOUNT

MLCC

S

250 - 6,000 VDC

These high voltage capacitors feature a special internal

electrode design which reduces voltage concentrations by

distributing voltage gradients throughout the entire capacitor.

This unique design also a ords increased capacitance values

in a given case size and voltage rating. The capacitors are

designed and manufactured to the general requirement of

EIA198 and are subjected to a 100% electrical testing making

them well suited for a wide variety of telecommunication,

commercial, and industrial applications.

A

PPLICATIONS

•

Analog & Digital Modems

•

Lighting Ballast Circuits

•

DC-DC Converters

•

LAN/WAN Interface

•

Voltage Multipliers

•

Back-lighting Inverters

with Polyterm

®

soft termination option for

demanding environments & processes. Visit our website for full details.

NOW AVAILABLE

Mechanical Characteristics

Rated

Voltage

Inches

.080 ±.010

.050 ±.010

.055 Max.

.020 ±.010

Inches

.125 ±.010

.062 ±.010

.067 Max.

.020 ±.010

Inches

.125 ±.010

.095 ±.010

.080 Max.

.020 ±.010

Inches

.185 ±.015

.080 ±.010

.085 Max.

.020 ±.010

(mm)

(2.03 ±.25)

(1.27 ±.25)

(1.40)

(0.51±.25)

(mm)

(3.17 ±.25)

(1.57 ±.25)

(1.70)

(0.51±.25)

(mm)

(3.18 ±.25)

(2.41 ±.25)

(2.03)

(0.51±.25)

(mm)

(4.80 ±.25)

(2.03 ±.25)

(2.16)

(0.51±.25)

250

500

630

1000

250

500

630

1000

2000

3000

250

500

630

1000

2000

3000

500

630

1000

2000

3000

4000

5000

6000

VDC

-

10 pF

-

10

-

10

1.0

Available Capacitance

N P O D i e l e c tr i c

Minimum

Maximum

-

680 pF

560 pF

390 pF

-

pF

1500

1200

1000

220

82

pF

-

3900 pF

2700 pF

1800 pF

560 pF

220 pF

4700 pF

3300 pF

2200 pF

820 pF

470 pF

180 pF

75 pF

R15/0805

R18/1206

X 7 R D i e l e c tr i c

Minimum

Maximum

1000 pF

0.022 µF

1000 pF

100 pF

1000

100

1000

100

1000

100

47

pF

0.010 µF

3900 pF

3300 pF

0.068

0.047

0.027

0.018

1000

220

0.120

0.082

0.056

0.027

2200

560

0.056

0.047

0.033

6800

3300

270

120

100

µF

pF

µF

pF

µF

pF

L

W

T

E/B

L

W

T

E/B

S41/1210

L

W

T

E/B

R29/1808

L

W

T

E/B

Available capacitance values include the following signi cant retma values and their multiples:

1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 ( 1.0 = 1.0, 10, 100, 1000, etc.)

Consult factory for non-retma values and sizes or voltages not shown.

6

www.johanson dielectrics.com

501R18N681KV4E Related Products

	501R18N681KV4E	501S43N102JV4E	602S47W102KV4E	501R15N221KV4E
Description	HI V MLCC 1206,680PF,10%,500V	HI V MLCC 1812,1000PF,5%,500V	CAP CER 1000PF 6KV X7R 2220	HI V MLCC 0805,220PF,10%,500V
capacitance	0.00068 µF	1000pF	1000pF	220pF
Temperature Coefficient	-/+30ppm/Cel ppm/°C	C0G，NP0	X7R	C0G，NP0
Tolerance	-	±5%	±10%	±10%
Voltage - Rated	-	500V	6000V（6kV）	500V
Operating temperature	-	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
characteristic	-	high voltage	high voltage	high voltage
application	-	Universal	Universal	Universal
Installation type	-	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC
Package/casing	-	1812 (4532 metric)	2220 (5750 metric)	0805 (2012 Metric)
size/dimensions	-	0.180" long x 0.125" wide (4.57mm x 3.17mm)	0.225" long x 0.200" wide (5.72mm x 5.08mm)	0.080" long x 0.050" wide (2.03mm x 1.27mm)
Thickness (maximum)	-	0.110"（2.80mm）	0.150"（3.81mm）	0.055"（1.40mm）
notify	-	There is currently market demand for these product types, so lead times will change and extend. Lead times may vary.	There is currently market demand for these product types, so lead times will change and extend. Lead times may vary.	There is currently market demand for these product types, so lead times will change and extend. Lead times may vary.
