MATERIAL: NYLON 6/6
UL94V-2 (RMS-01).
COLOR: NATURAL.
PART NO.
DTL2525-4-01
DTL2525-12-01
DTL2525-20-01
DTL2525-28-01
DTL3535-4-01
DTL3535-12-01
DTL3535-20-01
DTL3535-28-01
DTL4545-4-01
DTL4545-12-01
DTL4545-20-01
DTL4545-28-01
DTL5555-4-01
DTL5555-12-01
DTL5555-20-01
DTL5555-28-01
DTL6565-4-01
DTL6565-12-01
DTL6565-20-01
DTL6565-28-01
DTL7575-4-01
DTL7575-12-01
DTL7575-20-01
DTL7575-28-01
DIM. "A"
BUNDLE DIA.
RANGE
DIM. "B"
BUNDLE DIA. RANGE
DIM. "C"
BUNDLE TO
BUNDLE
1/4 [6.35]
3/4 [19.05]
1-1/4 [31.75]
1-3/4 [44.45]
1/4 [6.35]
3/4 [19.05]
1-1/4 [31.75]
1-3/4 [44.45]
1/4 [6.35]
3/4 [19.05]
1-1/4 [31.75]
1-3/4 [44.45]
1/4 [6.35]
3/4 [19.05]
1-1/4 [31.75]
1-3/4 [44.45]
1/4 [6.35]
3/4 [19.05]
1-1/4 [31.75]
1-3/4 [44.45]
1/4 [6.35]
3/4 [19.05]
1-1/4 [31.75]
1-3/4 [44.45]
DIM. "D" REF
CENTER TO
CENTER
.50 [12.7]
1.00 [25.4]
1.50 [38.1]
2.00 [50.8]
.60 [15.24]
1.10 [27.94]
1.60 [40.64]
2.10 [53.34]
.70 [17.78]
1.20 [30.48]
1.70 [43.18]
2.20 [55.88]
.80 [20.32]
1.30 [33.02]
1.80 [45.72]
2.30 [58.42]
.90 [22.86]
1.40 [35.56]
1.90 [48.26]
2.40 [60.96]
1.00 [25.4]
1.50 [38.1]
2.00 [50.8]
2.50 [63.5]
DIM. "E" REF
OVER-ALL
LENGTH
1.92 [48.77]
2.42 [61.47]
2.92 [74.18]
3.42 [86.87]
2.18 [55.37]
2.68 [68.07]
3.18 [80.77]
3.68 [93.47]
2.42 [61.47]
2.92 [74.17]
3.42 [86.87]
3.92 [99.57]
2.65 [67.31]
3.15 [80.01]
3.65 [92.71]
4.15 [105.41]
2.88 [73.15]
3.38 [85.85]
3.88 [98.55]
4.38 [111.25]
3.10 [78.74]
3.60 [91.44]
4.10 [104.14]
4.60 [116.84]
.20-.30 [5.08-7.62]
.20-.30 [5.08-7.62]
.30-.40 [7.62-10.16]
.30-.40 [7.62-10.16]
.40-.50 [10.16-12.7]
.40-.50 [10.16-12.7]
.50-.60 [12.7-15.24]
.50-.60 [12.7-15.24]
"A" .06
"B" .06
"C"
"D"
"E"
.60-.70 [15.24-17.79]
.60-.70 [15.24-17.79]
.70-.80 [17.79-20.32]
.70-.80 [17.79-20.32]
NOTES:
1. ALTERNATE MATERIAL: NYLON 6/6 UL94 V-0 (RMS-19) AVAILABLE BY
SPECIAL ORDER. TO ORDER REPLACE "-01" WITH "-19". COLOR NATURAL.
2. ALTERNATE UNITS FOR REFERENCE ONLY.
TITLE:
CREATED USING
SOLIDWORKS

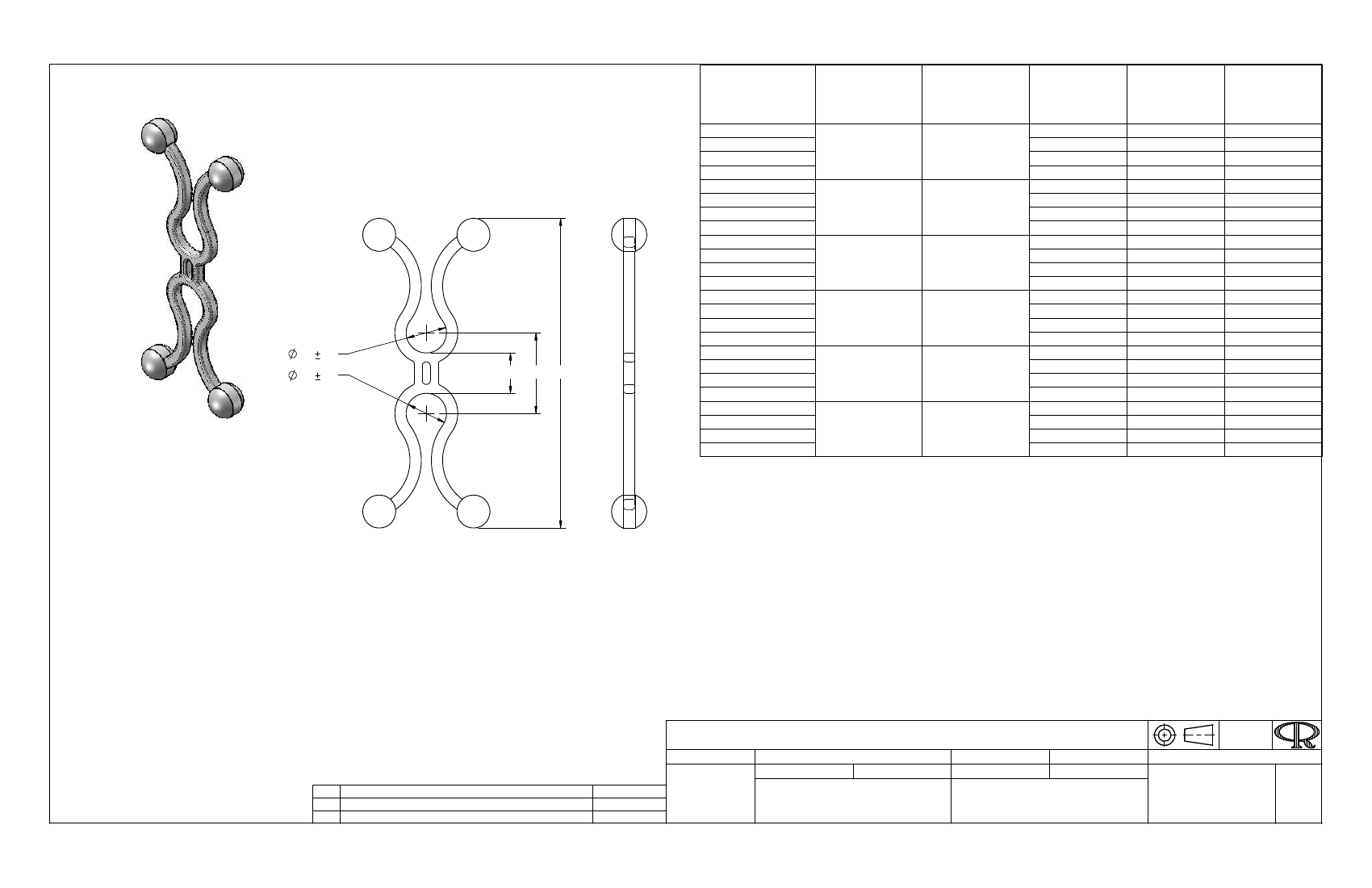

DUAL TWIST-LOCK
FILE #: DTL
SHEET: 1 OF 1
RE:
SHEET SIZE: B
DWN: SK
DT: 05/05/11
APP: SK
CHKD: DZ
PART #
UNITS=
IN [mm]
FINAL
F
-
REV.
REDRAWN, REMOVED NOTES BY S. O., CO 200668
SEE ENGINEERING FOR REV A-E
DESCRIPTION
SK 05.06.2011
--
------
ENGR. DATE
TOLERANCES
UNLESS NOTED
.XX=±.010
.XXX=±.005
FRAC.=±1/64
ANG.=±1°
RICHCO, INC.
--
RICHCO, INC.
WWW.RICHCO-INC.COM
SEE TABLE
CA
PRINT
TYPE
