MX34040NF2 datasheet, PDF - EEWORLD Datasheet

MX34040NF2: DescriptionCONN HEADER 2.2MM 40POS R/A; CategoryThe connector; File Size302KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

MX34040NF2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MX34040NF2	-	-	View	Buy Now

CONN HEADER 2.2MM 40POS R/A

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.087"（2.20mm）
Number of pins	40
Number of rows	2
Line spacing - patching	0.118"（3.00mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	welding
Fastening type	Lock pin slide
Contact Length - Mating	0.303"（7.70mm）
Contact length - terminal	0.126"（3.20mm）
Overall contact length	-
Insulation height	0.626"（15.90mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Syndiotactic polystyrene (SPS), glass filled
characteristic	Mounting flange
Operating temperature	-40°C ~ 85°C
Intrusion protection	-
Material flammability rating	-
Insulation color	grey
Rated current	3A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	Automotive grade

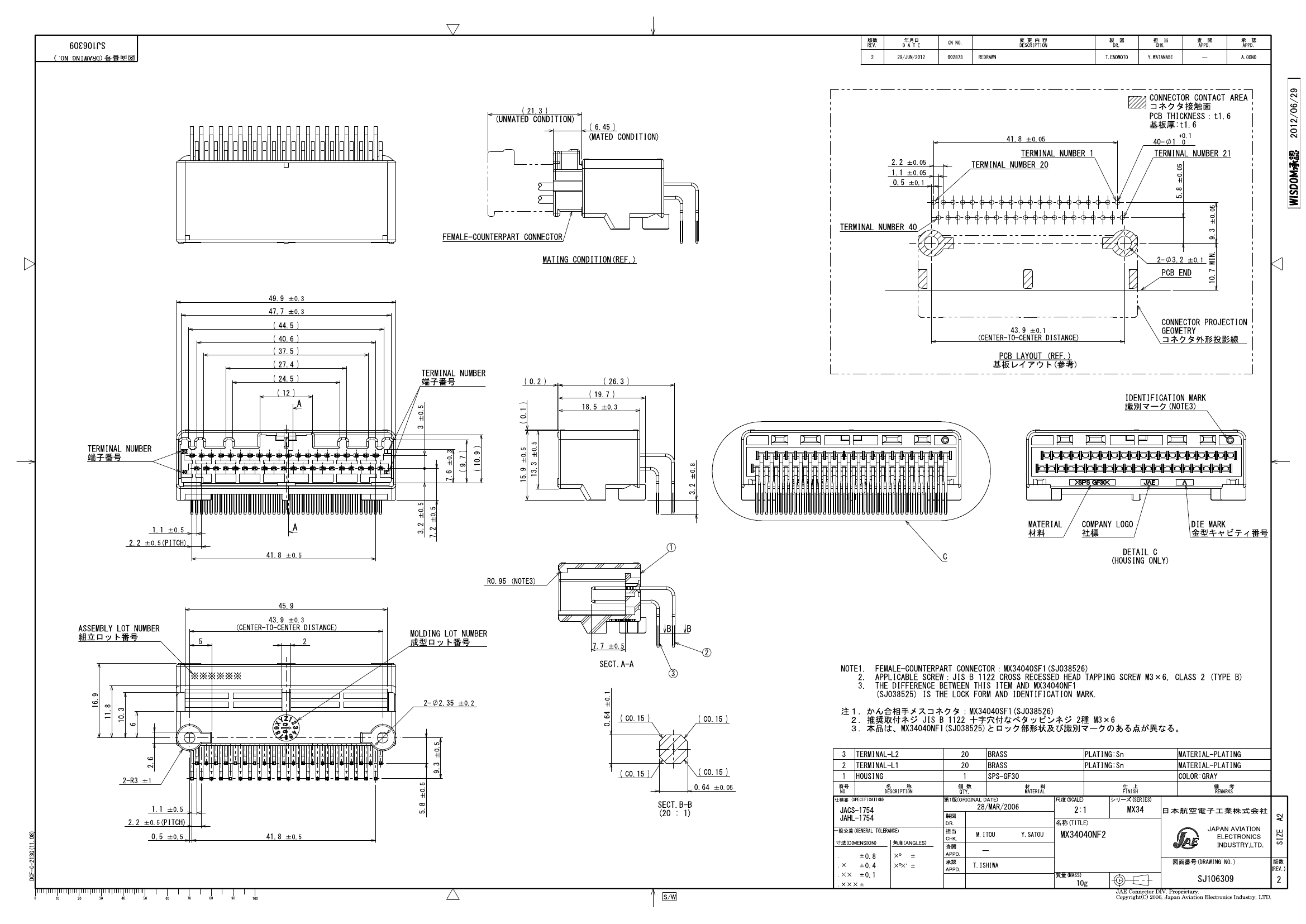

JAE-CONNECTORS.COM

Reference Only

	MX34040NF2	MX34040NF1
Description	CONN HEADER 2.2MM 40POS R/A	CONN HEADER 2.2MM 40POS R/A
Connector type	Connector	Connector
Contact type	Male pin	Male pin
Spacing - Mating	0.087"（2.20mm）	0.087"（2.20mm）
Number of pins	40	40
Number of rows	2	2
Line spacing - patching	0.118"（3.00mm）	0.118"（3.00mm）
Number of pins loaded	all	all
style	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls
Installation type	Through hole, right angle	Through hole, right angle
Termination	welding	welding
Fastening type	Lock pin slide	Lock pin slide
Contact Length - Mating	0.303"（7.70mm）	0.303"（7.70mm）
Contact length - terminal	0.126"（3.20mm）	0.126"（3.20mm）
Insulation height	0.626"（15.90mm）	0.626"（15.90mm）
Contact shape	Square	Square
Contact surface treatment - mating	tin	tin
Contact Surface Preparation - Column	tin	tin
Contact material	brass	brass
Insulation Materials	Syndiotactic polystyrene (SPS), glass filled	Syndiotactic polystyrene (SPS), glass filled
characteristic	Mounting flange	Mounting flange
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C
Insulation color	grey	grey
Rated current	3A	3A
application	Automotive grade	Automotive grade
