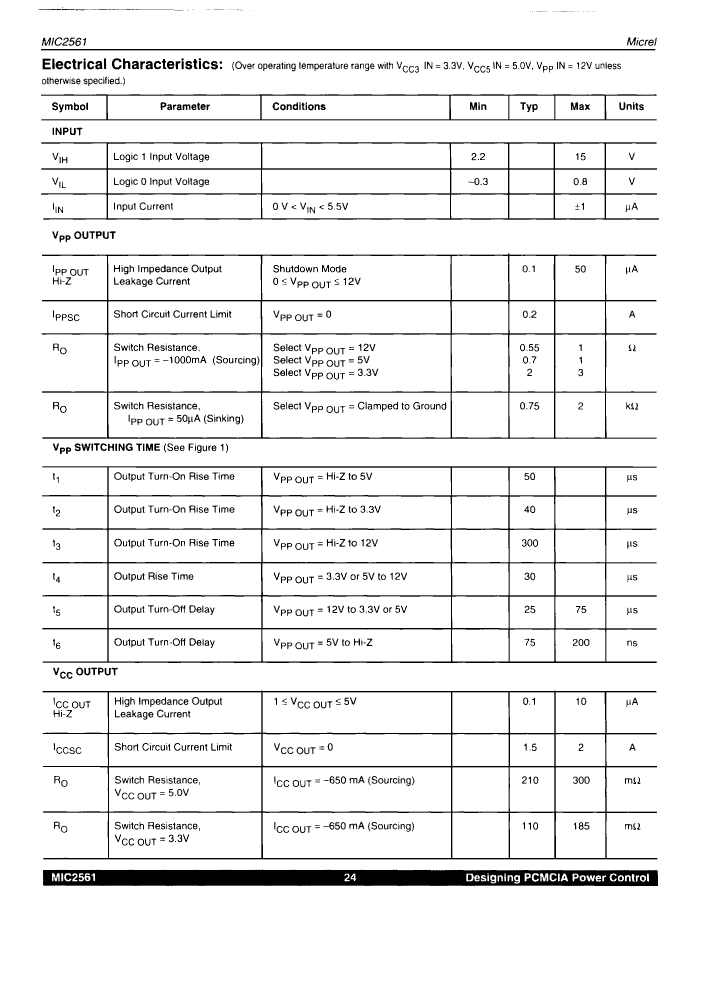

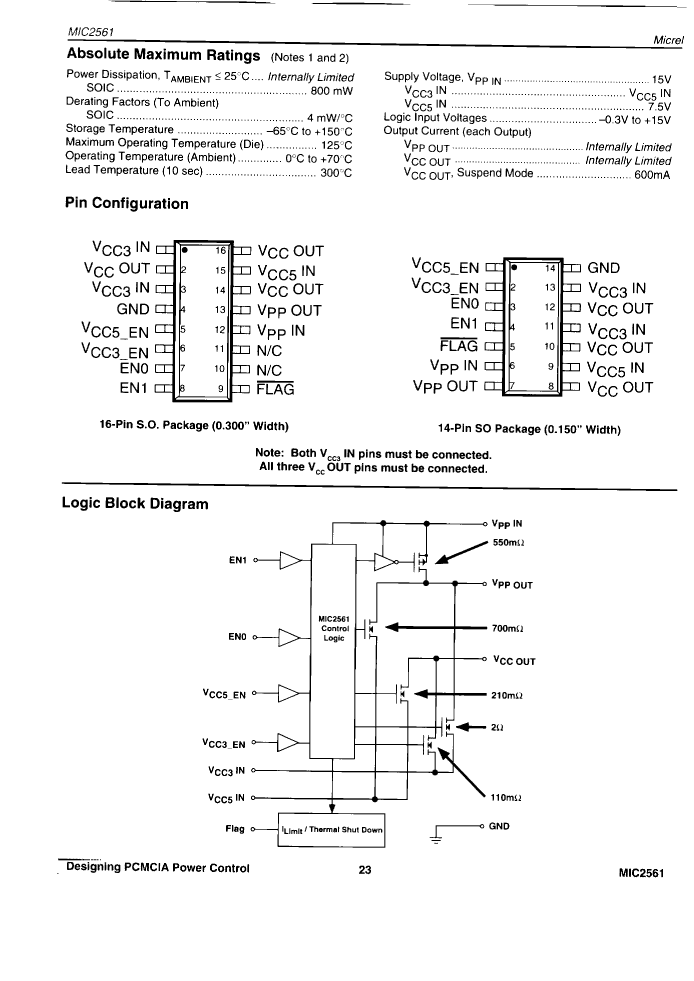

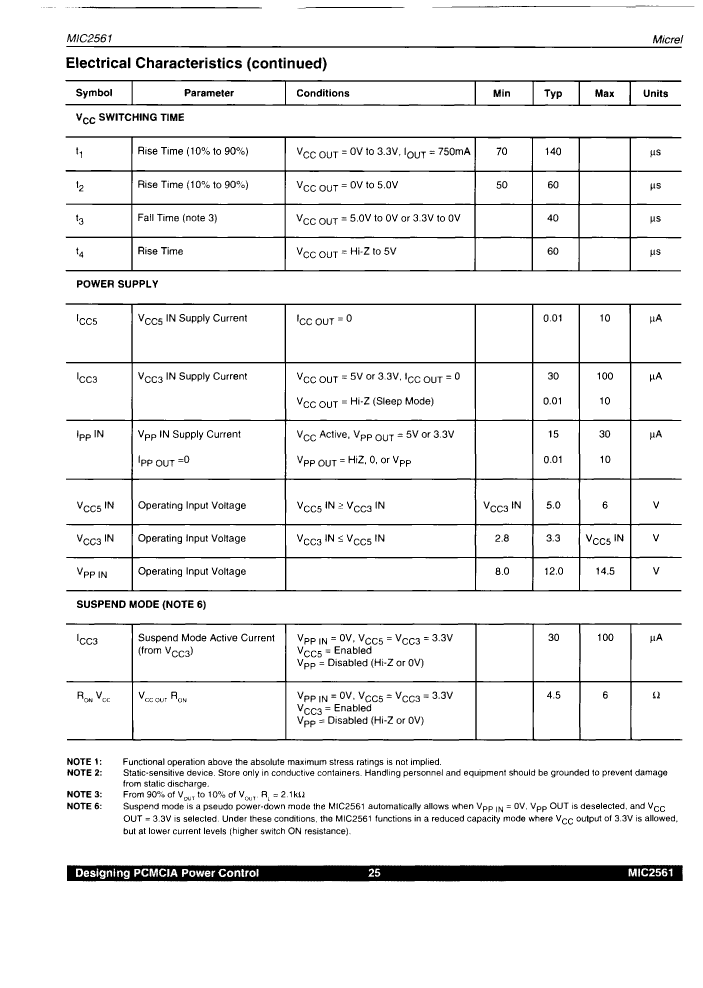

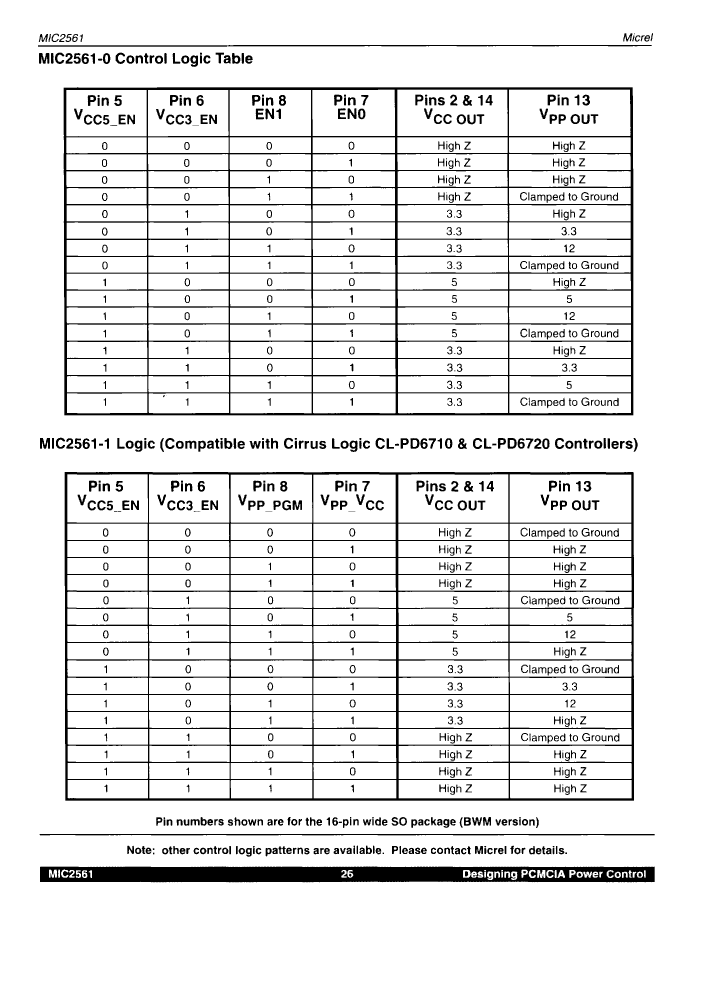

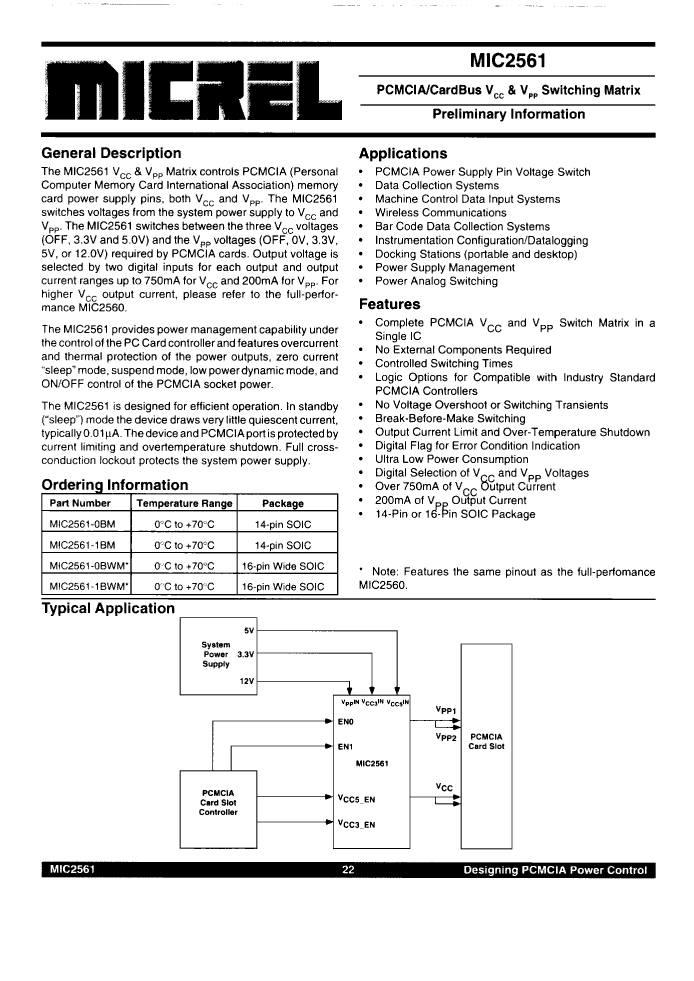

MIC2561-0BWM: DescriptionPower Supply Management Circuit, Fixed, 3 Channel, PDSO16, 0.300 INCH, SOIC-16; CategoryPower/power management The power supply circuit; File Size272KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC2561-0BWM Overview

Power Supply Management Circuit, Fixed, 3 Channel, PDSO16, 0.300 INCH, SOIC-16

MIC2561-0BWM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Humidity sensitivity level	1
Number of channels	3
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.8 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm

Preview

Download Datasheet

View All

MIC2561-0BWM Related Products

	MIC2561-0BWM	MIC2561-1BWM	MIC2561-1BWMTR
Description	Power Supply Management Circuit, Fixed, 3 Channel, PDSO16, 0.300 INCH, SOIC-16	Power Supply Management Circuit, Fixed, 3 Channel, PDSO16, 0.300 INCH, SOIC-16	Power Supply Management Circuit, Fixed, 3 Channel, PDSO16, 0.300 INCH, SOIC-16
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Microchip	Microchip	Microchip
Parts packaging code	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,
Contacts	16	16	16
Reach Compliance Code	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Adjustable threshold	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY MANAGEMENT CIRCUIT	POWER SUPPLY MANAGEMENT CIRCUIT	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0
length	10.3 mm	10.3 mm	10.3 mm
Humidity sensitivity level	1	1	1
Number of channels	3	3	3
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2.8 V	2.8 V	2.8 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30
width	7.5 mm	7.5 mm	7.5 mm
Is Samacsys	-	N	N
Base Number Matches	-	1	1
