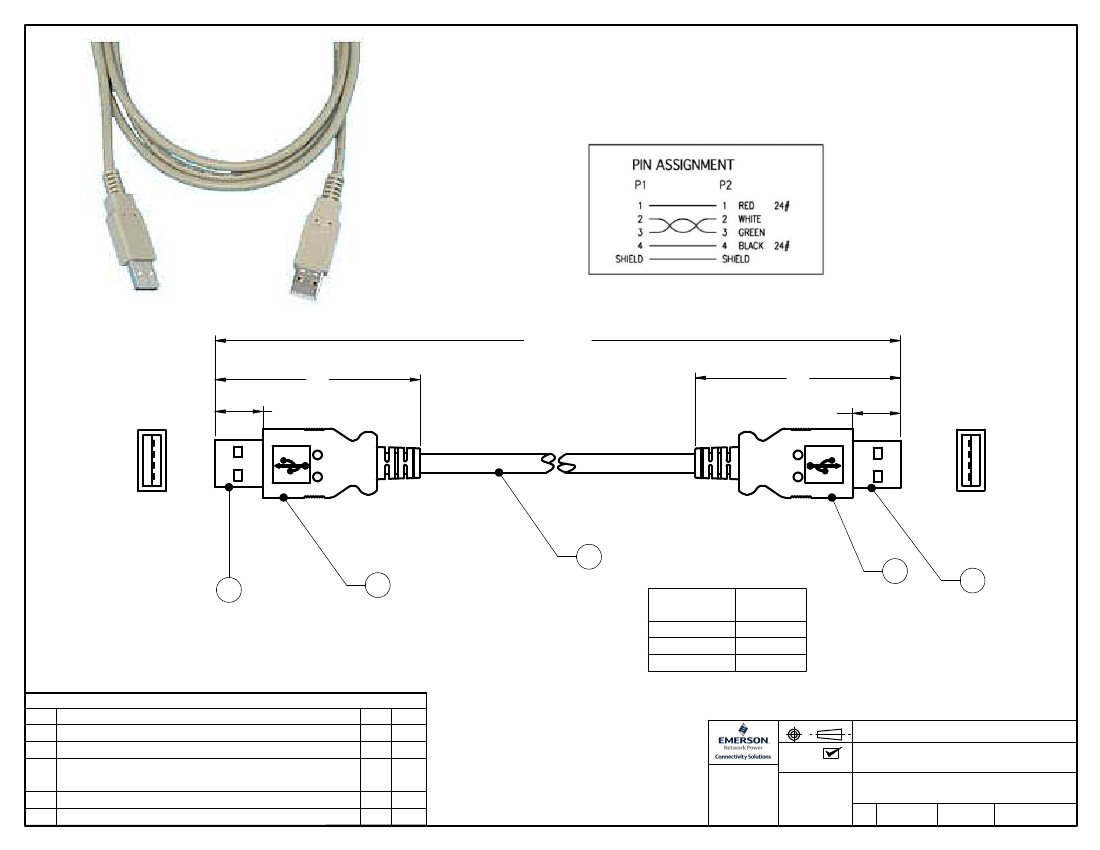

DESCRIPTION:
MODEL NUMBER:
USB 2.0 A MALE/A MALE
30-3006-XX (SEE TABLE 1)
CABLE LENGTH
USB A
12
u
0.2
4
49.8
49.8
USB A
12
u
0.2
1
P1
1
4
P2
3
1
4
MODEL
NUMBER
30-3006-6
30-3006-10
30-3006-15
CABLE
LENGTH
6 FT
10 FT
15 FT
5
2
Cable Assembly Parts List
ITEM
1
2
3
4
5
MATERIAL /SPECIFICATION
USB 2.0
，
USB A Male connector,gold plating 30u'',short body
USB 2.0
，
USB A Male connector,gold plating 30u'',short body
USB 2.0, USB Cable UL Style one twisted pair 26 AWG,and 2C 24 AWG, OD
5.0,Light gray PVC Outer Jacket
Light Gray PVC Molded Hood
Light Gray PVC Molded Hood
QTY
1
1
XX
1
1
UNIT
3RD ANGLE PROJECTION
PCS
PCS
FT
PCS
PCS
This PROPRIETARY Document
is property of Emerson Network
Power Connectivity Solutions.
It is confidential in nature,
non-transferable, and issued with
the clear understanding that it is
not traced or copied without
permission and is returnable
upon demand.
AIM-Cambridge
Title:
RoHS
2002/95/EC
UNLESS OTHERWISE SPECIFIED
UNITS: METRIC
USB 2.0 A MALE/A MALE
Model No.
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
X.X
u
0.2
X.XX
u
0.1
ANGLES
u
2
v
30-3006-XX
Size
A
DO NOT SCALE
Date:
5/10/2013
DRAWING
Sheet 1 of 1
