3542-0

Description
JACK PIN TIP GOLD BLACK
CategoryThe connector
File Size38KB，1 Pages
ManufacturerPomona Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

3542-0 Online Shopping

Suppliers Part Number Price MOQ In stock
3542-0 - - View Buy Now

3542-0 Overview

JACK PIN TIP GOLD BLACK

3542-0 Parametric

Parameter NameAttribute value
typeTip jack
genderfemale head
Plug/Mating Plug DiameterStandard terminal
Installation typePanel mounting
TerminationWith thread and turret
insulationMating end insulation
characteristic-
colorblack
Wire gauge-
Contact platinggold
Contact materialbrass
Matrix materialPolycarbonate (PC)
Operating temperature115°C

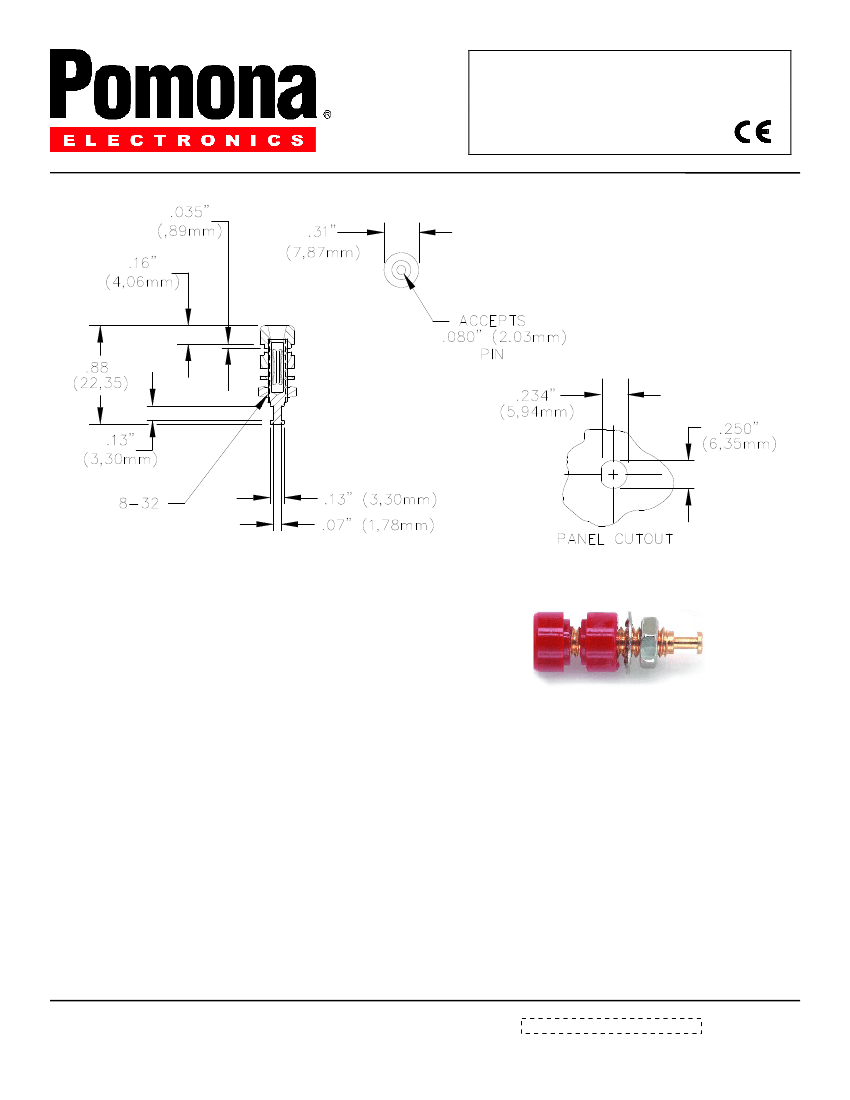

Preview

Download Datasheet
Model 3542
Insulated Panel Mount Pin
Tip Jack
FEATURES:
Accepts .080 pin tip plugs
Mounts in panels up to .250” thick.
MATERIAL:
Insulation – Polycarbonate - Molded to pin tip jack body
Lockwasher, #8 Internal Tooth – Nickel plated Steel
Hex Nut #8-32 – Nickel plated Brass
Pin Tip Jack Body: Gold plated Brass
RATINGS:
Operating Voltage: Hands free usage in controlled voltage environments: 1500 Vrms maximum.
For CE compliance:
not
intended for hand-held use at voltages above 33 Vrms/70 Vdc.
Current: 5 Amps
Operating Temperature: +239°F (+115°C). Max.
ORDERING INFORMATION:
Model 3542-Color
Ordering Example: 3542-2 (Red)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
(sold in packages of 10)
Colors
=: 0 (Black), 1 (Brown), 2 (Red), 3 (Orange), 4 (Yellow), 5 (Green), 6 (Blue), 7 (Violet), 8 (Gray), 9 (White)
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1093949
Page 1 of 1

3542-0 Related Products

3542-0 3542-2 3542-3 3542-6 3542-4 3542-5 3542-9
Description JACK PIN TIP GOLD BLACK JACK PIN TIP GOLD RED JACK PIN TIP GOLD ORANGE JACK PIN TIP GOLD BLUE JACK PIN TIP GOLD YELLOW JACK PIN TIP GOLD GREEN JACK PIN TIP GOLD WHITE
type Tip jack Tip jack Tip jack Tip jack Tip jack Tip jack Tip jack
gender female head female head female head female head female head female head female head
Plug/Mating Plug Diameter Standard terminal Standard terminal Standard terminal Standard terminal Standard terminal Standard terminal Standard terminal
Installation type Panel mounting Panel mounting Panel mounting Panel mounting Panel mounting Panel mounting Panel mounting
Termination With thread and turret With thread and turret With thread and turret With thread and turret With thread and turret With thread and turret With thread and turret
insulation Mating end insulation Mating end insulation Mating end insulation Mating end insulation Mating end insulation Mating end insulation Mating end insulation
color black red orange color blue yellow green White
Contact plating gold gold gold gold gold gold gold
Contact material brass brass brass brass brass brass brass
Matrix material Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC) Polycarbonate (PC)
Operating temperature 115°C 115°C 115°C 115°C 115°C 115°C 115°C
