SK6812MINI
SPECIFICATION
INTEGRATED LIGHT SOURCE INTELLIGENT CONTROL OF
CHIP-ON-TOP SMD TYPE LED
Document No.: SPC/ SK6812MINI
Model No.:
SK6812MINI
Description:
3.5x3.7x0.95mm Top SMD Type 0.2Watt Power
tegrated light source Intelligent control LED
Rev. No.:
Date:
01
2015-07-22
ELECTROSTATIC
SENSITIVE DEVICES
1 / 12
Document No.: SPC / SK6812mini Rev. No.: 01
东莞市欧思科光电科技有限公司
DONGGUANG OPSCO OPTOELECTRONICS CO., LTD
Dongguang Factory :
Side of fast in the east, Yucai Road, Dongshan Country, Qishi Town, Dongguan City.
Dongguan Tel: (769)82632725
Dongguan Fax: (769)82632735
INTEGRATED LIGHT SOURCE INTELLIGENT CONTROL
OF CHIP-ON-TOP SMD TYPE LED
Model: SK6812MINI
1. Product Overview :
SK6812mini is a smart LED control circuit and light emitting circuit in one controlled LED source,
which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the
pixels are contained within the intelligent digital interface input. The output is driven by patented PWM
technology, which effectively guarantees high consistency of the color of the pixels. The control
circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high
precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted
from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an
internal data latch, the remaining data is passed through the internal amplification circuit and sent out
on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic
shaping forwarding technology makes the number of cascaded pixels without signal transmission only
limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving),
high brightness, scattering angle, good consistency, low power, and long life. The control circuit is
integrated in the LED above.
2.
Main Application Field:
●
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,
LED appearance / scene lighting
●
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical
equipment etc..
3.
Description:
●
Top SMD internal integrated high quality external control line serial cascade constant current IC;
●
control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color
mixing uniformity and consistency;
●built-in
data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
●The
built-in power on reset and reset circuit, the power does not work;
●gray
level adjusting circuit (256 level gray scale adjustable);
●
red drive special treatment, color balance;
●
line data transmission;
●
plastic forward strengthening technology, the transmission distance between two points over 10M;
●Using
a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
2 / 12
Document No.: SPC / SK6812mini Rev. No.: 01
东莞市欧思科光电科技有限公司
DONGGUANG OPSCO OPTOELECTRONICS CO., LTD
Dongguang Factory :
Side of fast in the east, Yucai Road, Dongshan Country, Qishi Town, Dongguan City.
Dongguan Tel: (769)82632725
Dongguan Fax: (769)82632735

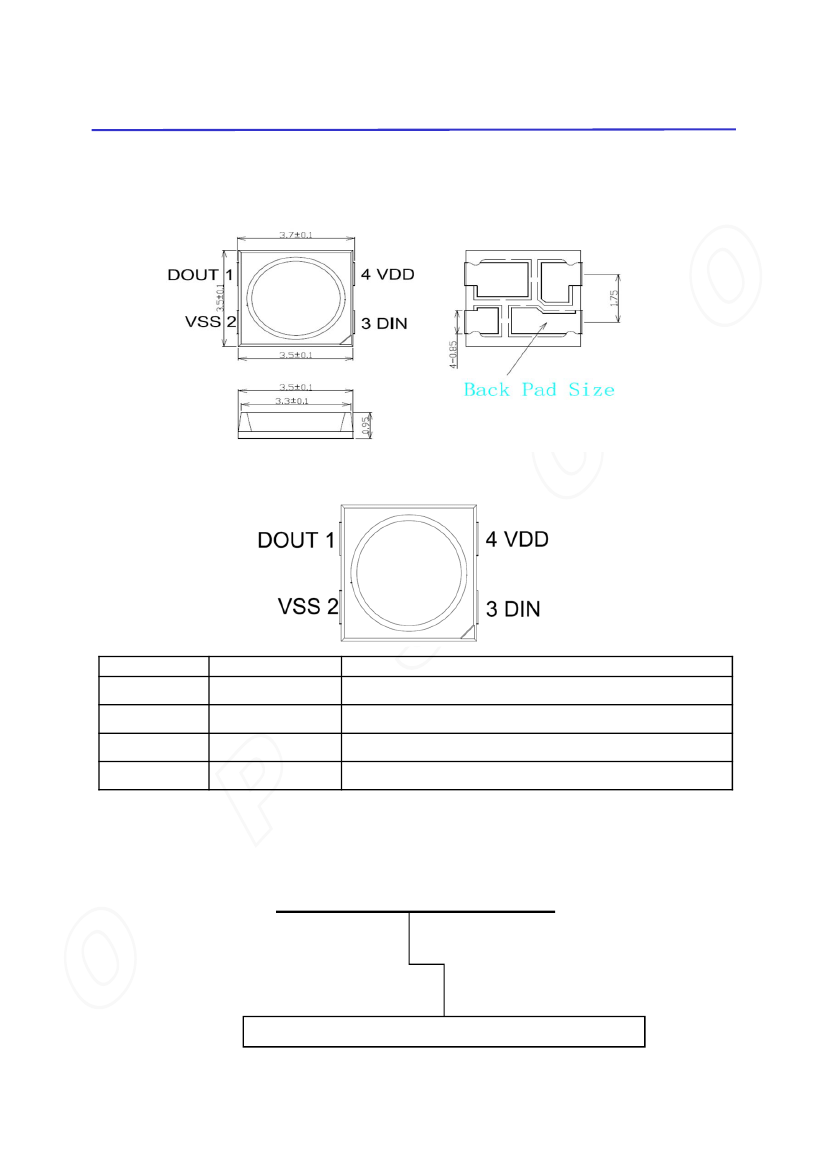

4. Mechanical Dimensions:
Notes:
1. All dimensions are in millimeters.
2. Tolerance is
±0.1mm
unless otherwise noted
5.
PIN configuration
NO.
1
2
3
4
Symbol
DOUT
VSS
DIN
VDD
Function description
Control data signal output
Ground
Control data signal input
Power supply LED
6.
General Information
SK6812MINI
SK6812:
The default is RGB chips with IC integration
3 / 12
Document No.: SPC / SK6812mini Rev. No.: 01
东莞市欧思科光电科技有限公司
DONGGUANG OPSCO OPTOELECTRONICS CO., LTD
Dongguang Factory :
Side of fast in the east, Yucai Road, Dongshan Country, Qishi Town, Dongguan City.
Dongguan Tel: (769)82632725
Dongguan Fax: (769)82632735
7.
Absolute Maximum Ratings（Ta=25℃,VSS=0V） :
Parameter
Power supply voltage
Logic input voltage
Working temperature
Storage temperature
ESD pressure
Symbol
VDD
V
IN
Topt
Tstg
V
ESD
Range
+3.5½+5.5
-0.5½VDD+0.5
-40~+85
-50~+150
4K
Unit
V
V
℃
℃
V
8.
The electrical parameters (unless otherwise specified, TA=-20 ~ +70 ℃, VDD=4.5 ~ 5.5V,
VSS=0V):
Parmeter
The chip
supply voltage
R/G/B port
pressure
Symbol
VDD
VDS,M
AX
IDOH
IDOL
The signal
input flip
threshold
The frequency
of PWM
Static power
consumption
VIH
VIL
FPWM
IDD
Min
---
---
---
---
3.4
---
---
---
Typical
5.2
---
49
-50
---
---
1.2
1
Max
---
26
---
---
---
1.6
---
---
Unit
V
V
mA
mA
V
V
KHZ
mA
Test conditions
---
---
DOUT conect ground,
the maximum drive
current
DOUT conect +, the
largest current
VDD=5.0V
---
---
DOUT drive
capability
9.
The dynamic parameters (Ta=25 ℃):
Parameter
The speed of data
transmission
DOUT transmission
delay
IOUT Rise/Drop
Time
Symbol
fDIN
TPLH
TPHL
Tr
Tf
Min
---
---
---
---
---
Typical
800
---
---
100
100
Max
---
500
500
---
---
Unit
KHZ
ns
ns
ns
ns
Test conditions
The duty ratio of 67%
(data 1)
DIN→DOUT
VDS=1.5
IOUT=13mA
4 / 12
Document No.: SPC / SK6812mini Rev. No.: 01
东莞市欧思科光电科技有限公司
DONGGUANG OPSCO OPTOELECTRONICS CO., LTD
Dongguang Factory :
Side of fast in the east, Yucai Road, Dongshan Country, Qishi Town, Dongguan City.
Dongguan Tel: (769)82632725
Dongguan Fax: (769)82632735
10.
The data transmission time (TH+TL=1.25µs±600ns):
T0H
T0L
T1H
T1L
Trst
0 code, high level time
0 code, low level time
1 code, high level time
1 code, low level time
Reset code，low level time
0.3µs
0.9µs
0.6µs
0.6µs
80µs
±0.15µs
±0.15µs
±0.15µs
±0.15µs

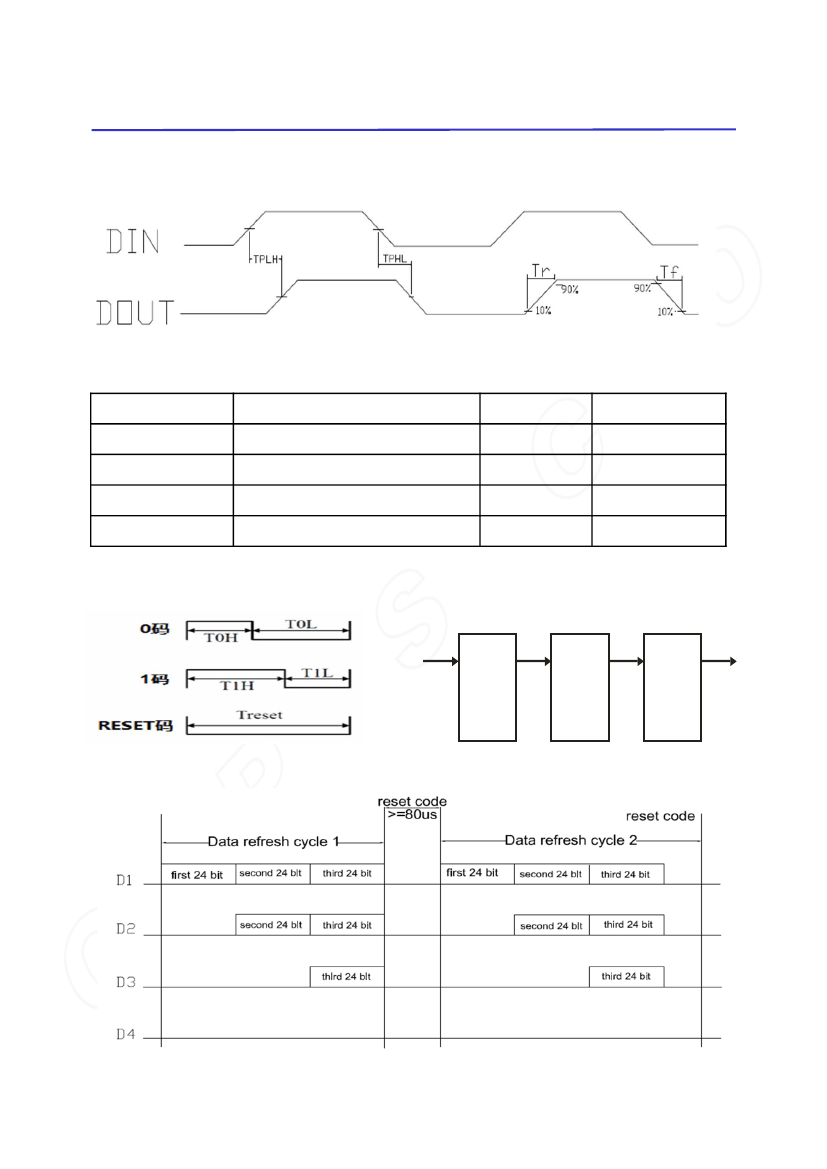

11.
Timing waveform:
Input code:
Connection mode:
D1
DIN DO
D2
DIN DO
D3
D4
DIN DO
PIX1
12.
The method of data transmission:
PIX2
PIX3
Note: the D1 sends data for MCU, D2, D3, D4 for data forwarding automatic shaping cascade circuit.
Document No.: SPC / SK6812mini Rev. No.: 01
5 / 12
