Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between conductors within a pair.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 2651
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M
™

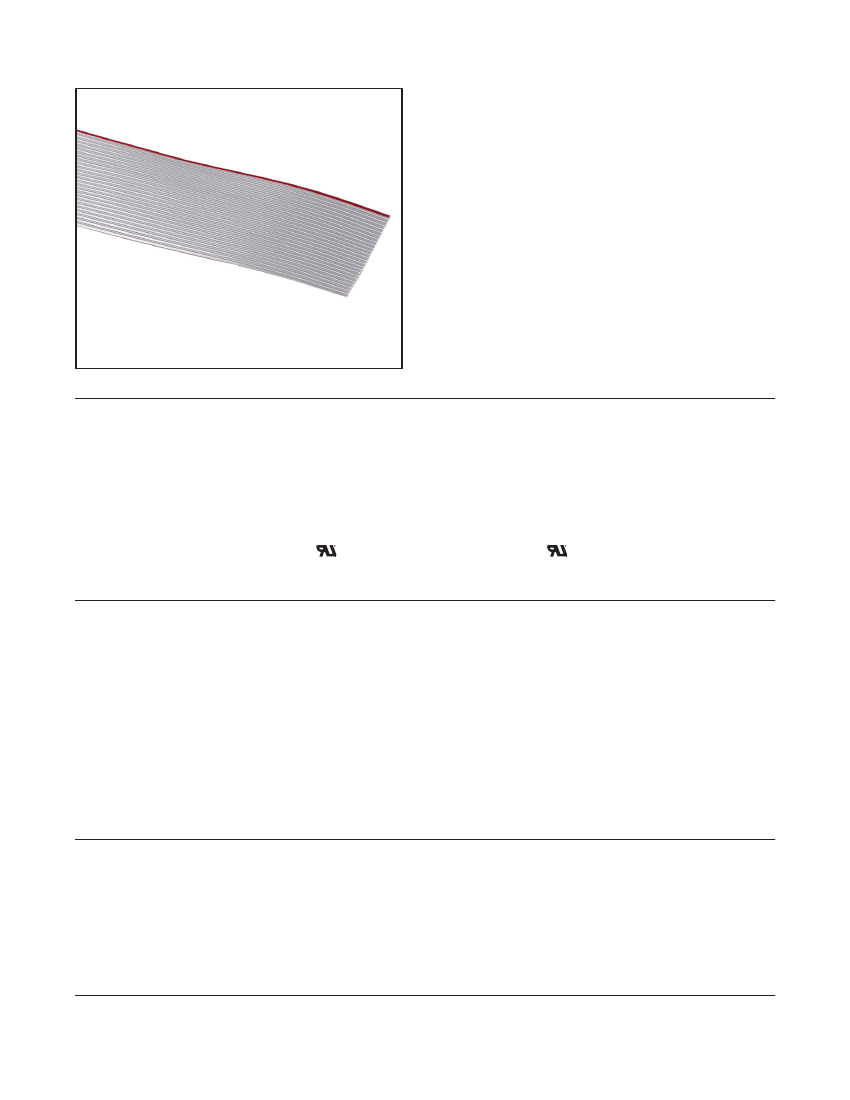

Round Conductor Flat Cable
.050" 28 AWG Stranded, PVC
C
Number of
Conductors
06
08
09
10
3M Part
Number
3365/06
3365/08
3365/09
3365/10
Dimension A
0.400 ± .010 [ 10.16 ]
0.450 ± .010 [ 11.43 ]
0.500 ± .010 [ 12.70 ]
0.300 ± .010 [ 7.62 ]
3365 Series
Dimension B
0.350 ± .007 [ 8.89 ]
0.400 ± .007 [ 10.16 ]
0.450 ± .007 [ 11.43 ]
0.250 ± .007 [ 6.35 ]
12
14
15
16
20
24
3365/12
3365/14
3365/15
25
26
30
34
36
37
40
44
50
60
64
3365/16
3365/20
3365/24
0.600 ± .010 [ 15.24 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .010 [ 19.05 ]
3365/25
3365/26
3365/30
3365/34
3365/36
3365/37
3365/40
3365/44
3365/50
3365/60
3365/64
A
B
0.800 ± .015 [ 20.32 ]
1.000 ± .015 [ 25.40 ]
1.200 ± .015 [ 30.48 ]
0.550 ± .007 [ 13.97 ]
0.650 ± .007 [ 16.51 ]
0.700 ± .007 [ 17.78 ]
0.750 ± .011 [ 19.05 ]
0.950 ± .011 [ 24.13 ]
1.150 ± .011 [ 29.21 ]
1.250 ± .015 [ 31.75 ]
1.300 ± .015 [ 33.02 ]
1.500 ± .020 [ 38.10 ]
1.700 ± .020 [ 43.18 ]
1.800 ± .020 [ 45.72 ]
1.850 ± .020 [ 46.99 ]
2.000 ± .020 [ 50.80 ]
2.200 ± .020 [ 55.88 ]
2.500 ± .020 [ 63.50 ]
3.000 ± .020 [ 76.20 ]
3.200 ± .020 [ 81.28 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.150 ± .015 [ 54.61 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
[ ] Dimensions for Reference Only
.025
±
.007
[0.64]
.050
±
.002 Typ
[1.27]
.035
±
.003
[0.89]
PVC Insulation
28 AWG, 7 X 36 [ 7 X ø 0.127 ] Tinned
Stranded Copper Conductors
Note: Red marking on one edge of cable designates wire #1.
Ordering Information
3365X / XX XX
Blank = Standard
C = Canadian Certified Version
Color Options
Blank = Gray (Standard)
A = Black (Special)
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard 100 ft and 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0080-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
