2M11Z - 2M200Z
2.0 Watts Glass Passivated Junction
Silicon Zener Diodes
DO-15
Features
UL Recognized File # E-96005
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
Low profile package
Built-in strain relief
Excellent clamping capability
Typical to less than 1µA
High temperature soldering guaranteed: 260
o
C
/ 10 seconds / .375”,(9.5mm) lead length /
5lbs.,(2.3kg) tension
Mechanical Data
Case: Molded plastic
Terminals: Pure tin plated lead free,,
solderable per mil-std-750, method 2026
Polarity: Color band denotes positive end
(cathode)
Weight: 0.04gram, 0.015 ounce
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Steady State Power Dissipation at T
L
=75 C
Lead Lengths .375”, 9.5mm ( Note 1 )
Peak Forward Surge Current, 8.3 ms Single Half
Sine-wave Superimposed on Rated Load
(JEDEC method) ( Note 2 )
o
Symbol
P
D
I
FSM
Value
2.0
15
Units
Watts
Amps
o
T
J
, T
STG
-55 to + 175
Operating and Storage Temperature Range
1. Mounted on 5.0mm² (0.13mm thick) land areas.
Notes:
2. Measured on 8.3ms Single half sine-wave of equivalent square wave, duty cycle=4 pulses
per minute maximum.
C
Version: A06
ELECTRICAL CHARACTERISTICS (
Ratings at TA=25
O
C ambient temperature unless otherwise specified)
.
Nominal
Zener Voltage
Test
V
z
@ I
zt
Current
Voltage
I
ZT
(Notes 2)
11
12
13
14
15
16
17
18
19
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
140
150
160
170
180
190
200
(mA)
45.5
41.5
38.5
35.7
33.4
31.2
29.4
27.8
26.3
25.0
22.8
20.8
18.5
16.6
15.1
13.9
12.8
11.6
10.6
9.8
9.0
8.1
7.4
6.7
6.1
5.5
5.0
4.5
4.2
3.8
3.6
3.3
3.1
2.9
2.8
2.6
2.5
Maximum Zener
Impedance (Note 3)
Leakage Current
Z
ZT
@ I
ZT
(Ohms)
Z
ZK
@ I
ZK
(Ohms)
700
700
700
700
700
700
750
750
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
5500
6000
6500
7000
7000
8000
I
ZK
mA
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Device
I
R
(uA)
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
V
R
(V)
8.4
9.1
9.9
10.6
11.4
12.2
13.0
13.7
14.4
15.2
16.7
18.2
20.6
22.5
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56
62.2
69.2
76
83.6
91.2
98.8
106.4
114
121.6
130.4
136.8
144.8
152.0
Maximum
Zener
Current
I
ZM
(mA)
166
152
138
130
122
114
107
100
95
90
82
76
68
60
55
50
47
43
39
36
32
29
27
24
22
20
18
17
15
14
13
12
11
11
10
10
9.0
Surge Current
@ TA=25℃
ir - mA
1.82
1.66
1.54
1.43
1.33
1.25
1.18
1.11
1.05
1.00
0.91
0.83
0.74
0.67
0.61
0.56
0.51
0.45
0.42
0.39
0.36
0.32
0.29
0.27
0.24
0.22
0.20
0.18
0.16
0.15
0.14
0.13
0.12
0.12
0.11
0.10
0.10
2M11Z
2M12Z
2M13Z
2M14Z
2M15Z
2M16Z
2M17Z
2M18Z
2M19Z
2M20Z
2M22Z
2M24Z
2M27Z
2M30Z
2M33Z
2M36Z
2M39Z
2M43Z
2M47Z
2M51Z
2M56Z
2M62Z
2M68Z
2M75Z
2M82Z
2M91Z
2M100Z
2M110Z
2M120Z
2M130Z
2M140Z
2M150Z
2M160Z
2M170Z
2M180Z
2M190Z
2M200Z
4.0
4.5
5.0
5.5
7.0
8.0
9.0
10
11
11
12
13
18
20
23
25
30
35
40
48
55
60
75
90
100
125
175
250
325
400
500
575
650
675
725
825
900
8000
0.25
Notes:
1. TOLERANCES - Suffix indicates 5% tolerance any other tolerance will be considered as a special device.
2. ZENER VOLTAGE (V
Z
) MEASUREMENT - guarantees the zener voltage when measured at 40 ms
±
10ms
from the diode body, and an ambient temperature of 25℃ (
+
68℃, -2
℃).
3. ZENER IMPEDANCE (Z
Z
) DERIVATION - The zener impedance is derived from the 60 cycle ac voltage,
which results when an an current having an rms falue equal to 10% of the dc zener current (I
ZT
or I
ZK
) is
superimposed on I
ZT
or I
ZK
.
4. SURGE CURRENT (Ir) NON_REPETITIVE - The rating listed in the electrical characteristics table is
maximum peak, non-repetitive, reverse surge current of 1/2 square wave or equivalent sine wave pulse
of 1/120 second duration superimposed on the test current, I
ZT
, per JEDEC standards, however, actual
device capability is as described in Figure 3.

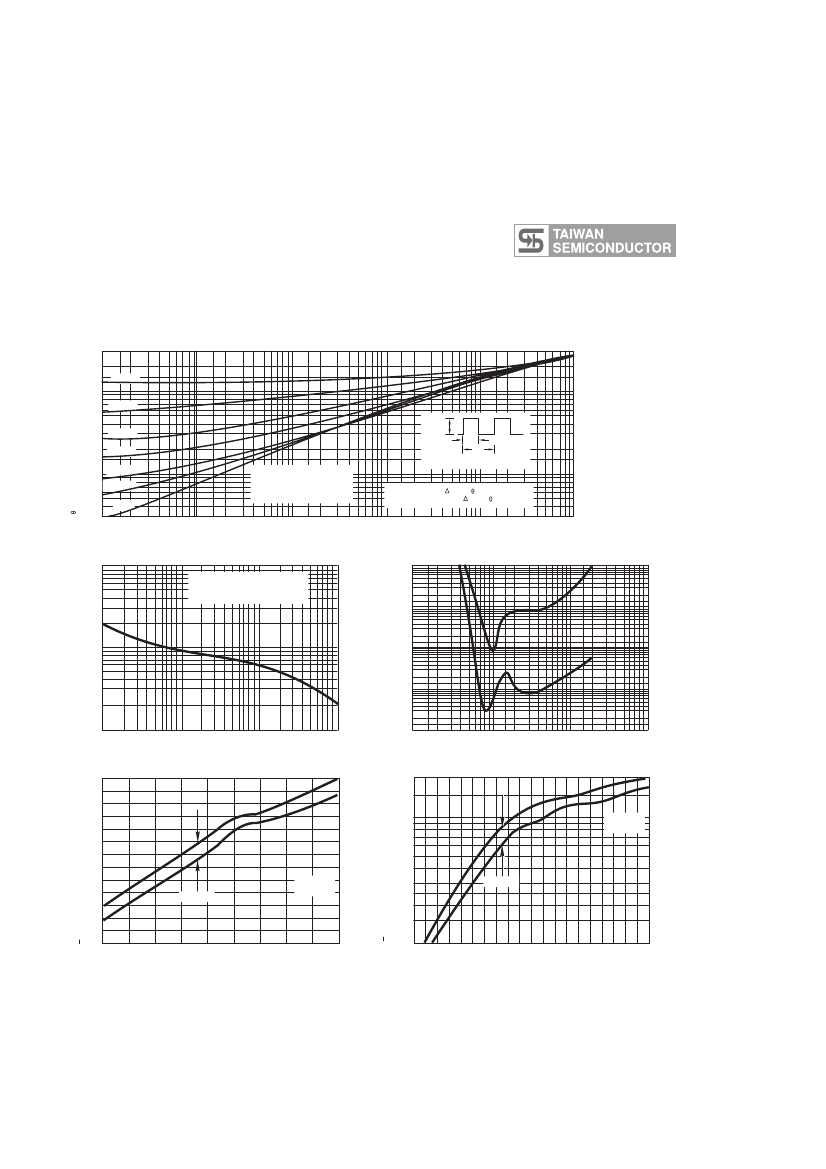

RATINGS AND CHARACTERISTIC CURVES (2M11Z THRU 2M200Z)
FIG.1- TYPICAL THERMAL RESPONSEL
30
20
D = 0.5
JL (t,D) TRANSIENT THERMAL RESISITANCE
JUNCTION-TO-LEAD (
o
C/W)
10
7
5
3
2
D = 0.2
D = 0.1
D = 0.05
NOTE BELOW 0.1 SECOND.
THERMAL RESPONSE
CURVE IS APPLICABLE TO
ANY LEAD LENGTH (L)
PPK
t1
t2
DUTY CYCLE, D=t1 t2
1
D = 0.02
0.7
D = 0.01
0.5
0.3
0.01
D=0
SINGLE PULSE TJL = JL(1)PPK
REPETITIVE PULSES TJL = JL(1,D)PPK
0.02
0.05
0.1
0.2
0.5
1.0
2.0
5.0
10
20
50
100
200
500
1000
PW, PULSE WIDTH (ms)
500
FIG.2- MAXIMUM SURGE POWER
IR, REVERSE LEADAGE(uAdc)
@VR AS SPECIFIED IN ELEC. CHAR. TABLE
1
0.5
0.3
0.2
0.1
0.05
0.03
0.02
0.01
0.005
0.003
0.002
0.001
0.0005
0.0003
0.0002
0.0001
FIG.3- TYPICAL REVERSE LEAKAGE
Ppk, PEAK SURGE POWER (WATTS)
250
150
100
50
40
20
RECTANGULAR NONREPETITIVE
O
WAVEFORM T
J
= 25 C PRIOR TO
INITIAL PULSE
10
0.1
0.2
0.5
1
2
5
10
20
50
100
1
2
5
10
20
50
100
200
500
1000
PW, PULSE WIDTH (ms)
NORMAL V
Z
(VOLTS)
OV
Z
, TEMPERAYURE COEFFICIENT (mV/
o
C)
@I
ZT
8
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
3
4
5
6
7
8
9
10
V
Z
, ZENER VOLTAGE @I
ZT
(VOLTS)
11
12
RANGE
OV
Z
, TEMPERAYURE COEFFICIENT (mV/
o
C)
@I
ZT
FIG.4- UNIT TO 12 VOLTS
8
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
FIG.5- UNIT 10 TO 200 VOLTS
V
Z
@ I
ZT
V
Z
@ I
ZT
RANGE
0
20
40
100
120
140
160
60
80
V
Z
, ZENER VOLTAGE @I
ZT
(VOLTS)
180
200
Version: A06
RATINGS AND CHARACTERISTIC CURVES (2M11Z THRU 2M200Z)
FIG.6- VZ = 3.9 THRU 10 VOLTS
100
100
FIG.7- VZ = 12 THRU 82 VOLTS
I
Z
,
ZENER CURRENT (mA)
10
I
Z
,
ZENER CURRENT (mA)
10
1
1
0.1
0
1
2
3
4
5
6
7
8
9
10
0.1
0
10
20
30
40
50
60
70
80
90
100
V
Z
,
ZENER VOLTAGE (VOLTS)
V
Z
,
ZENER VOLTAGE (VOLTS)
FIG.8- VZ = 3.9 THRU 10 VOLTS
100
FIG.9- TYPICAL THERMAL RESISTANCE
80
70
JL, JUNCTION-LEAD THERMAL
O
RESISTANCE ( C/W)
I
Z
,
ZENER CURRENT (mA)
60
50
40
30
20
10
10
1
0.1
100
120
140
160
180
200
0
0
1/8
1/4
3/8
1/2
5/8
3/4
7/8
1
V
Z
,
ZENER VOLTAGE (VOLTS)
L, LEAD LENGTH TO HEAT SINK (INCH)
Version: A06
