MALE PCB
PINS
PRINTED CIRCUIT PINS
5920
5920-0-00-XX-00-00-03-0
6025
Solderless press-fit pin for plated through-hole
Recommended drilled hole size: .086 (2,18mm)
(SQ.)
6025-0-00-XX-00-00-03-0
6035
Solderless press-fit pin for plated through-hole
Recommended drilled hole size: .068 (1,73mm)
(HEX.)
6035-0-00-XX-00-00-03-0
Solderless press-fit pin for plated through-hole
Recommended drilled hole size: .068 (1,73mm)
(HEX.)

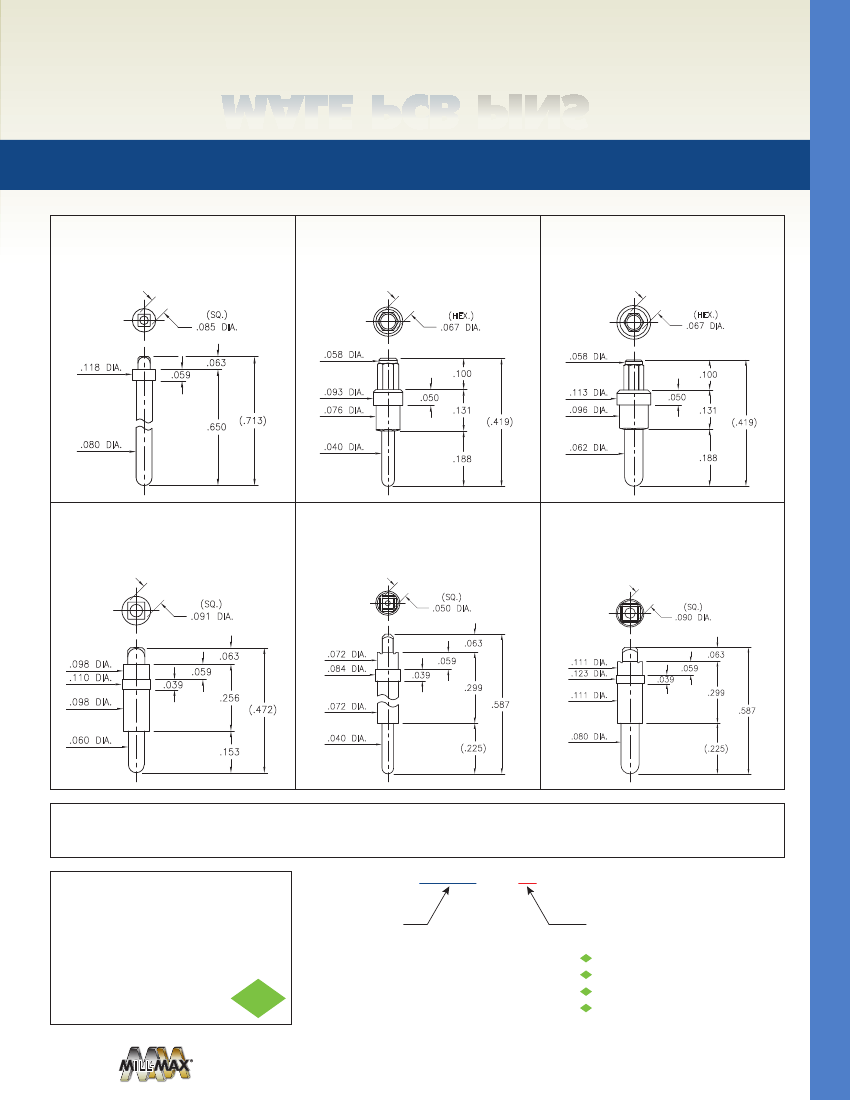

.085 DIA.
.058 DIA.
.067 DIA.
.058 DIA.
.067 DIA.
.118 DIA.
.063
.059
.100
.093 DIA.
.050
.131
(.419)
.040 DIA.
.188
.062 DIA.
.113 DIA.
.096 DIA.
.050
.100
.650
.080 DIA.
(.713)
.076 DIA.
.131
(.419)
.188
8237
8237-0-05-XX-00-00-03-0
6834
Solderless press-fit pin for plated through-hole
Recommended drilled hole size: .092 (2,34mm)
(SQ.)
6834-0-00-XX-00-00-03-0
6835
Solderless press-fit pin for plated through-hole
Recommended drilled hole size: .0512 (1,3mm)
(SQ.)
6835-0-00-XX-00-00-44-0
Solderless press-fit pin for plated through-hole
Recommended drilled hole size: .092 (2,34mm)
*
Pin Material: Tellurium Copper Alloy
(SQ.)
.091 DIA.
.050 DIA.
.090 DIA.
.063
.098 DIA.
.110 DIA.
.098 DIA.
.063
.059
.039
.256
(.472)
.072 DIA.
.084 DIA.
.039
.059
.299
.111 DIA.
.123 DIA.
.111 DIA.
.063
.059
.039
.299
.587
.072 DIA.
.587
.060 DIA.
.153
.040 DIA.
.080 DIA.
(.225)
(.225)
Recommended drilled hole sizes are prior to plating of the PCB and based on typical copper deposition of .5 - 1 oz. This results in
a reduction of hole size by approximately .0015” - .003”. Depending on surface plating, typical finished hole sizes are .003” - .005”
smaller than drilled hole sizes. The finished hole size tolerance for press-fit applications should be specified as +/- .002”
SPECIFICATIONS:
Pin Material:
Brass Alloy 360, 1/2 Hard
( Except where noted )
*
Dimensions: Inches
Tolerances On:
Lengths: ± .005
Diameters: ± .002
Angles:
±2°
ORDER CODE: XXXX - 0 - 0X -
XX
- 00 - 00 - XX - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200
μ”
TIN/LEAD OVER NICKEL
80
200
μ”
TIN OVER NICKEL (RoHS)
15
10
μ”
GOLD OVER NICKEL (RoHS)
21
20
μ”
GOLD OVER NICKEL (RoHS)
34
50
μ”
GOLD OVER NICKEL (RoHS)
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 223.4 | MALE PCB PINS
