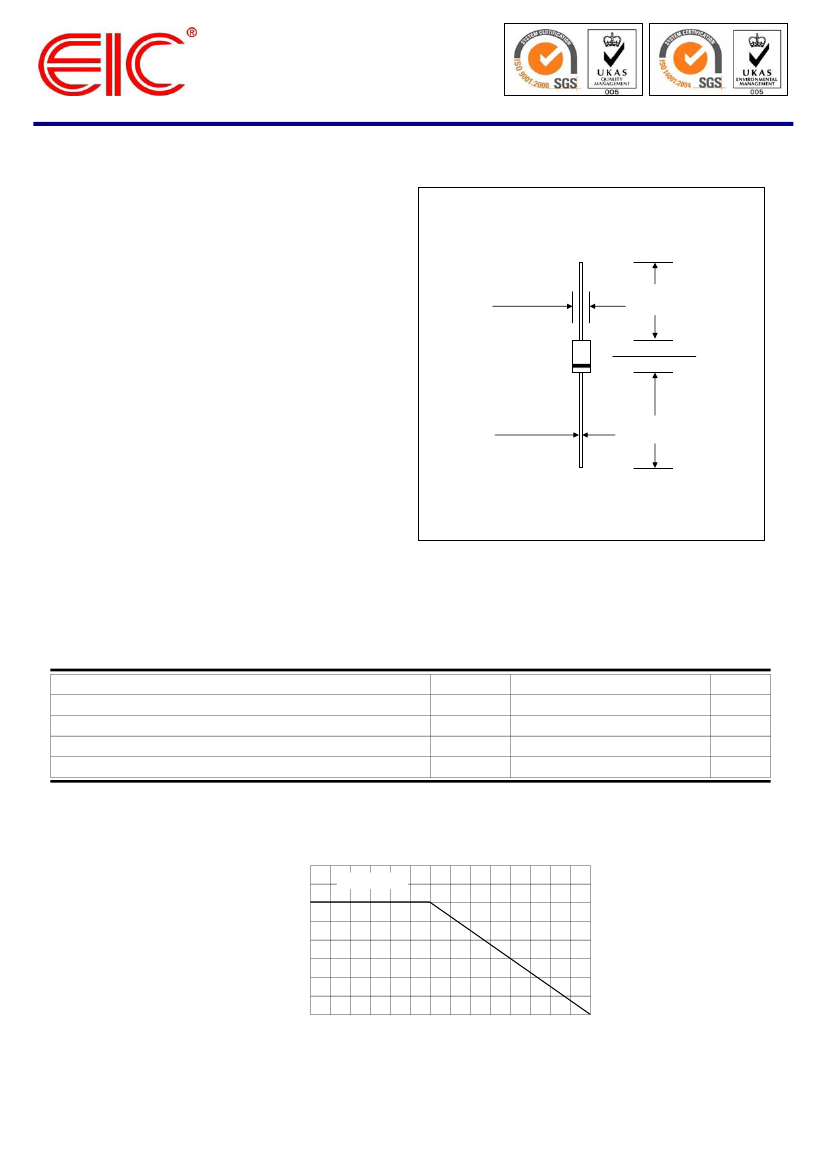

2EZ Series
V
Z
: 2.7 - 330 Volts
P
D
: 2 Watts
FEATURES :
* Complete Voltage Range 2.7 to 330 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
*
±
10% tolerance
* Pb / RoHS Free
SILICON ZENER DIODES
DO - 41
0.107 (2.7)
0.080 (2.0)
1.00 (25.4)
MIN.
0.205 (5.2)
0.166 (4.2)
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 75 °C (Note1)
Maximum Forward Voltage at I
F
= 200 mA
Junction Temperature Range
Storage Temperature Range
Note :
(1) T
L
= Lead temperature at 3/8 " (9.5mm) from body
Symbol
P
D
V
F
T
J
T
STG
Value
2.0
1.2
- 55 to + 175
- 55 to + 175
Unit
W
V
°C
°C
Fig. 1 POWER TEMPERATURE DERATING CURVE
2.5
P
D
, MAXIMUM DISSIPATION
(WATTS)
L = 3/8" (9.5mm)
2.0
1.5
0.5
0
0
25
50
75
100
125
T
L,
LEAD TEMPERATURE (
°
C)
150
175
Page 1 of 3
Rev. 06 : May 27, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM
ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
Nominal Zener
Maximum Zener
Voltage
Impedance
Type No.
Maximum Reverse
Leakage Current
Maximum DC
Zener Current
V
Z
@ I
ZT
(V)
75
82
91
100
110
120
130
140
150
160
170
180
190
200
220
270
300
330
I
ZT
(mA)
6.7
6.1
5.5
5.0
4.5
4.2
3.8
3.6
3.3
3.1
2.9
2.8
2.6
2.5
2.0
1.6
1.5
1.4
Z
ZT
@ I
ZT
(Ω)
90
100
125
175
250
325
400
500
575
650
675
725
825
1900
2000
2200
2200
2300
Z
ZK
@ I
ZK
(Ω)
2000
3000
3000
3000
4000
4500
5000
5500
6000
6500
7000
7000
8000
9990
8500
8500
9000
9000
I
ZK
(mA)
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
I
R
@ V
R
(
μ
A)
(V)
56.0
62.2
69.2
76.0
83.6
91.2
98.8
106.4
114.0
121.6
130.4
136.8
144.8
152.0
167.0
205.0
228
250
I
ZM
(mA)
24
22
20
18
17
15
14
13
12
11
11
10
10
9.0
8.0
6.7
5.9
5.4
2EZ75D10
2EZ82D10
2EZ91D10
2EZ100D10
2EZ110D10
2EZ120D10
2EZ130D10
2EZ140D10
2EZ150D10
2EZ160D10
2EZ170D10
2EZ180D10
2EZ190D10
2EZ200D10
2EZ220D10
2EZ270D10
2EZ300D10
2EZ330D10
Notes :
(1) Suffix " 10 " indicates
±
10% tolerance, suffix " 5 " indicates
±
5% tolerance.
(2) " EZ " will be omitted in marking on the diode
Page 3 of 3
Rev. 06 : May 27, 2006
