5031751100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5031751100

5031751100: DescriptionCONN RCPT R/A 11CKT 1.5MM BEIGE; CategoryThe connector; File Size262KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5031751100 Overview

CONN RCPT R/A 11CKT 1.5MM BEIGE

5031751100 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	Forked
style	Board to cable/wire
Number of pins	11
Number of pins loaded	all
Spacing - Mating	0.059"（1.50mm）
Number of rows	1
Line spacing - patching	-
Installation type	Through hole, right angle
Termination	Kink pins, solder
Fastening type	latch holder
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）
Insulation color	beige
Insulation height	0.274"（6.95mm）
Contact length - terminal	0.134"（3.40mm）
Operating temperature	-40°C ~ 105°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	board guide
Rated current	-
Rated voltage	-
application	Automotive, general, industrial, lighting, medical
Insulation Materials	Polyamide (PA), nylon
Contact shape	-
Contact material	copper alloy
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）

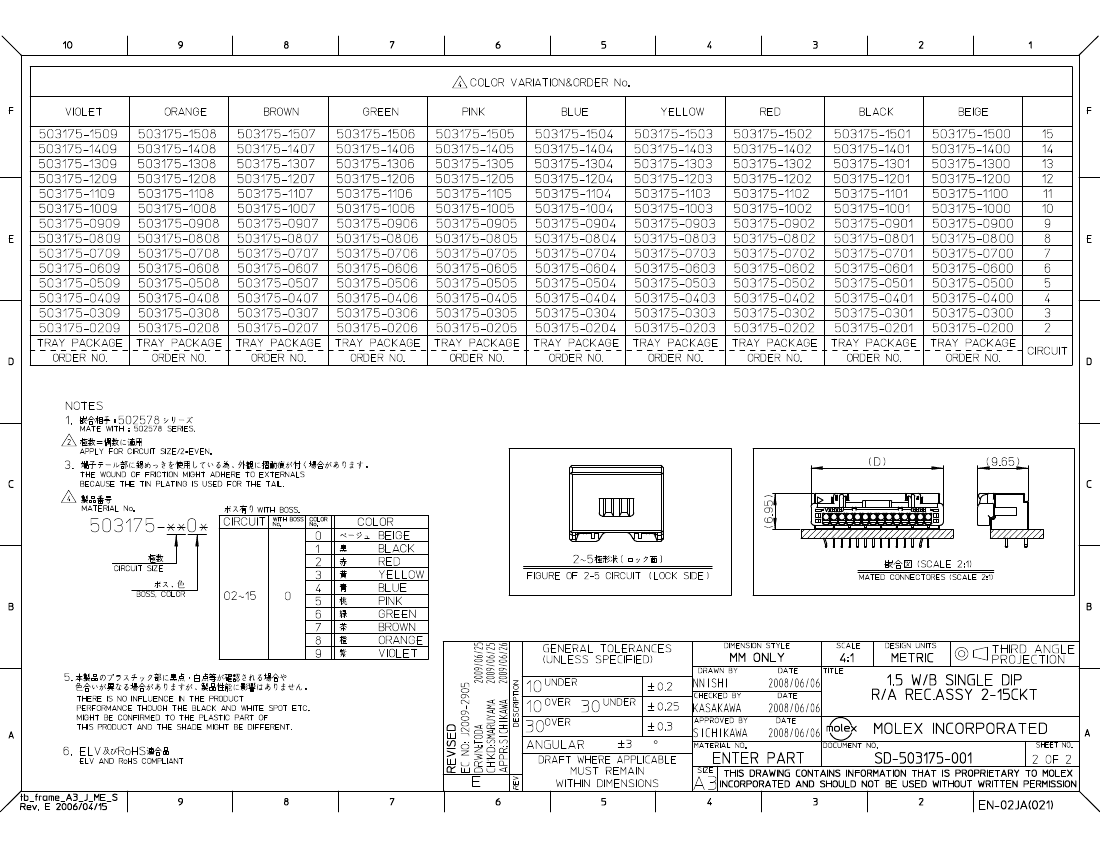

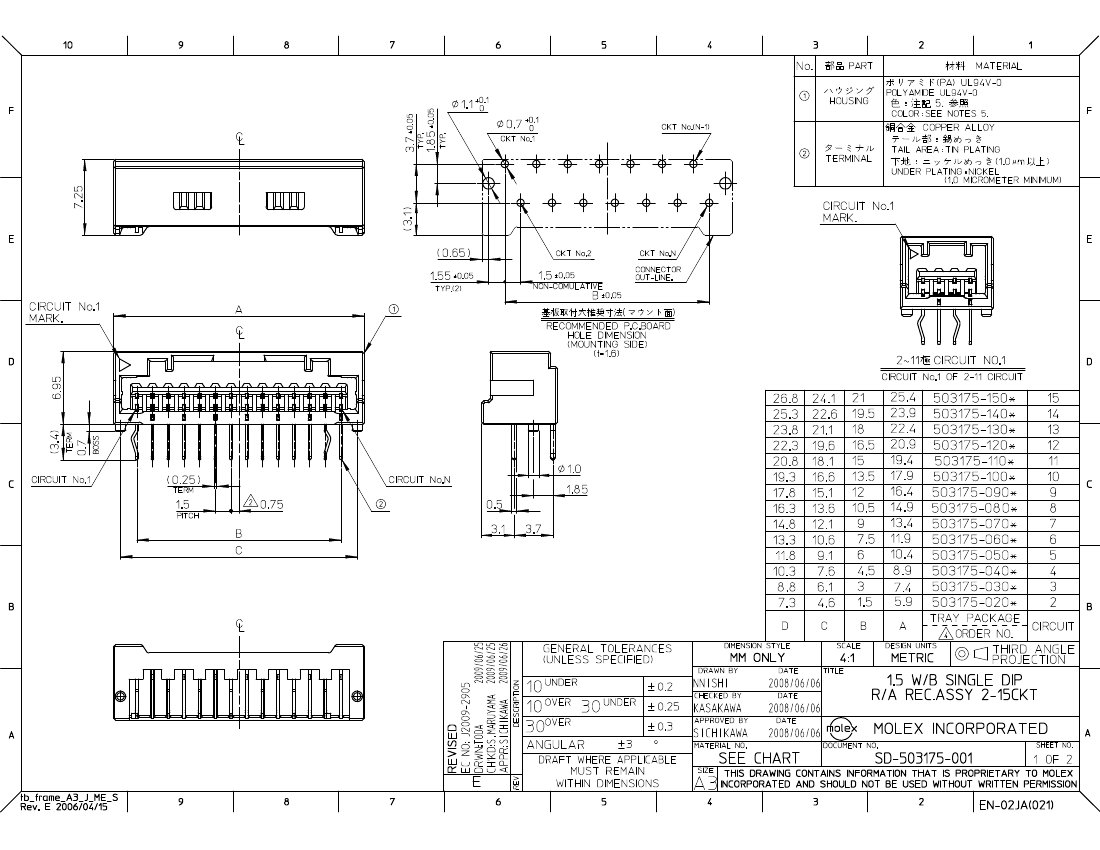

Preview

Download Datasheet

View All

5031751100 Related Products

	5031751100	5031750800	5031750400	5031750300	5031750500	5031750600	5031750700	5031751000	5031750200	5031750900
Description	CONN RCPT R/A 11CKT 1.5MM BEIGE	CONN RCPT R/A 8CKT 1.5MM BEIGE	CONN RCPT R/A 4CKT 1.5MM BEIGE	CONN RCPT R/A 3CKT 1.5MM BEIGE	CONN RCPT R/A 5CKT 1.5MM BEIGE	CONN RCPT R/A 6CKT 1.5MM BEIGE	CONN RCPT R/A 7CKT 1.5MM BEIGE	CONN RCPT R/A 10CKT 1.5MM BEIGE	CONN RCPT R/A 2CKT 1.5MM BEIGE	CONN RCPT R/A 9CKT 1.5MM BEIGE
Connector type	socket	socket	socket	socket	socket	socket	socket	socket	socket	socket
Contact type	Forked	Forked	Forked	Forked	Forked	Forked	Forked	Forked	Forked	Forked
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
Number of pins	11	8	4	3	5	6	7	10	2	9
Number of pins loaded	all	all	all	all	all	all	all	all	all	all
Spacing - Mating	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）
Number of rows	1	1	1	1	1	1	1	1	1	1
Installation type	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle
Termination	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder
Fastening type	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder
Contact surface treatment - mating	tin	tin	tin	tin	tin	tin	tin	tin	tin	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
Insulation color	beige	beige	beige	beige	beige	beige	beige	beige	beige	beige
Insulation height	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）	0.274"（6.95mm）
Contact length - terminal	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Surface Preparation - Column	tin	tin	tin	tin	tin	tin	tin	tin	tin	tin
characteristic	board guide	board guide	board guide	board guide	board guide	board guide	board guide	board guide	board guide	board guide
application	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical
Insulation Materials	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
